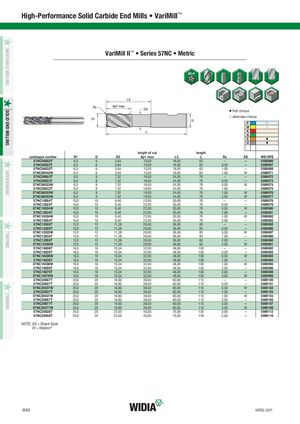

Каталог Widia all star 2020 - страница 142
Навигация
Каталог Widia техническое руководство по разверткам
Каталог Widia достижения 2020
Каталог Widia инструмент для обработки отверстий 2017
Каталог Widia монолитный инструмент 2017
Каталог Widia цельные концевые фрезы- TABLE OF CONTENTS
- INDEXABLE MILLING
- 0º/90º SHOULDER MILLS
- 90° HIGH-SPEED CUTTING MILLS
- FACE MILLS
- HIGH-FEED MILLS
- COPY MILLS
- SOLID END MILLING
- HIGH-PERFORMANCE SOLID CARBIDE END MILLS
- GENERAL PURPOSE SOLID CARBIDE END MILLS
- HOLEMAKING
- SOLID CARBIDE DRILLS
- MODULAR DRILLS
- INDEXABLE DRILLS
- TAPPING
- TURNING
- HIGH-PERFORMANCE INSERTS
- GROOVING & CUT-OFF
- Informational Icons Guide
- Material Overview • DIN
VariMill II™ • Series 57NC • Metric
v first choice j alternate choice
| P | j | ||||||||
| M | j | ||||||||
| K | |||||||||
| N | |||||||||
| S | v | ||||||||
| H | v | ||||||||
| length of cut | length | ||||||||
| catalogue number | D1 | D | D3 | Ap1 max | L3 | L | Re | SS | WS15PE |
| 57NC06002T | 6,0 | 6 | 5,64 | 13,00 | 18,00 | 63 | — | — | 5598906 |
| 57NC06022T | 6,0 | 6 | 5,64 | 13,00 | 18,00 | 63 | 0,50 | — | 5598907 |
| 57NC06032T | 6,0 | 6 | 5,64 | 13,00 | 18,00 | 63 | 1,00 | — | 5598909 |
| 57NC06042W | 6,0 | 6 | 5,64 | 13,00 | 18,00 | 63 | 1,50 | W | 5599071 |
| 57NC08003T | 8,0 | 8 | 7,52 | 19,00 | 24,00 | 76 | — | — | 5599072 |
| 57NC08023T | 8,0 | 8 | 7,52 | 19,00 | 24,00 | 76 | 0,50 | — | 5599073 |
| 57NC08023W | 8,0 | 8 | 7,52 | 19,00 | 24,00 | 76 | 0,50 | W | 5599074 |
| 57NC08033T | 8,0 | 8 | 7,52 | 19,00 | 24,00 | 76 | 1,00 | — | 5599075 |
| 57NC08033W | 8,0 | 8 | 7,52 | 19,00 | 24,00 | 76 | 1,00 | W | 5599076 |
| 57NC08053W | 8,0 | 8 | 7,52 | 19,00 | 24,00 | 76 | 2,00 | W | 5599077 |
| 57NC10004T | 10,0 | 10 | 9,40 | 22,00 | 30,00 | 76 | — | — | 5599078 |
| 57NC10024T | 10,0 | 10 | 9,40 | 22,00 | 30,00 | 76 | 0,50 | — | 5599079 |
| 57NC10024W | 10,0 | 10 | 9,40 | 22,00 | 30,00 | 76 | 0,50 | W | 5599080 |
| 57NC10034T | 10,0 | 10 | 9,40 | 22,00 | 30,00 | 76 | 1,00 | — | 5599081 |
| 57NC10034W | 10,0 | 10 | 9,40 | 22,00 | 30,00 | 76 | 1,00 | W | 5599082 |
| 57NC10054T | 10,0 | 10 | 9,40 | 22,00 | 30,00 | 76 | 2,00 | — | 5599083 |
| 57NC12005T | 12,0 | 12 | 11,28 | 26,00 | 36,00 | 83 | — | — | 5599085 |
| 57NC12025T | 12,0 | 12 | 11,28 | 26,00 | 36,00 | 83 | 0,50 | — | 5599086 |
| 57NC12025W | 12,0 | 12 | 11,28 | 26,00 | 36,00 | 83 | 0,50 | W | 5599087 |
| 57NC12035T | 12,0 | 12 | 11,28 | 26,00 | 36,00 | 83 | 1,00 | — | 5599088 |
| 57NC12055T | 12,0 | 12 | 11,28 | 26,00 | 36,00 | 83 | 2,00 | — | 5599090 |
| 57NC12055W | 12,0 | 12 | 11,28 | 26,00 | 36,00 | 83 | 2,00 | W | 5599091 |
| 57NC16006T | 16,0 | 16 | 15,04 | 32,00 | 48,00 | 100 | — | — | 5599092 |
| 57NC16026T | 16,0 | 16 | 15,04 | 32,00 | 48,00 | 100 | 0,50 | — | 5599093 |
| 57NC16026W | 16,0 | 16 | 15,04 | 32,00 | 48,00 | 100 | 0,50 | W | 5598905 |
| 57NC16036T | 16,0 | 16 | 15,04 | 32,00 | 48,00 | 100 | 1,00 | — | 5599094 |
| 57NC16036W | 16,0 | 16 | 15,04 | 32,00 | 48,00 | 100 | 1,00 | W | 5599095 |
| 57NC16056T | 16,0 | 16 | 15,04 | 32,00 | 48,00 | 100 | 2,00 | — | 5599096 |
| 57NC16076T | 16,0 | 16 | 15,04 | 32,00 | 48,00 | 100 | 3,00 | — | 5599098 |
| 57NC16076W | 16,0 | 16 | 15,04 | 32,00 | 48,00 | 100 | 3,00 | W | 5599099 |
| 57NC20007T | 20,0 | 20 | 18,80 | 38,00 | 60,00 | 115 | — | — | 5599100 |
| 57NC20027T | 20,0 | 20 | 18,80 | 38,00 | 60,00 | 115 | 0,50 | — | 5599101 |
| 57NC20027W | 20,0 | 20 | 18,80 | 38,00 | 60,00 | 115 | 0,50 | W | 5599102 |
| 57NC20037T | 20,0 | 20 | 18,80 | 38,00 | 60,00 | 115 | 1,00 | — | 5599103 |
| 57NC20037W | 20,0 | 20 | 18,80 | 38,00 | 60,00 | 115 | 1,00 | W | 5599104 |
| 57NC20057T | 20,0 | 20 | 18,80 | 38,00 | 60,00 | 115 | 2,00 | — | 5599105 |
| 57NC20077T | 20,0 | 20 | 18,80 | 38,00 | 60,00 | 115 | 3,00 | — | 5599107 |
| 57NC20077W | 20,0 | 20 | 18,80 | 38,00 | 60,00 | 115 | 3,00 | W | 5599108 |
| 57NC25028T | 25,0 | 25 | 23,50 | 45,00 | 75,00 | 135 | 0,50 | — | 5599112 |
| 57NC25058T | 25,0 | 25 | 23,50 | 45,00 | 75,00 | 135 | 2,00 | — | 5599116 |
NOTE: SS = Shank Style W = Weldon®
