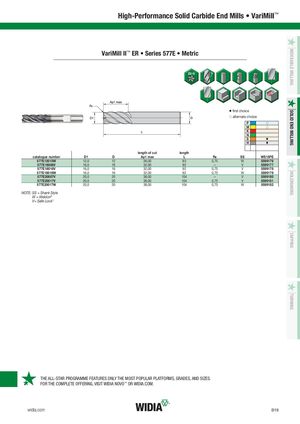

VariMill II™ ER • Series 577E • Metric
v first choice j alternate choice
| P | j | ||||||||
| M | j | ||||||||
| K | |||||||||
| N | |||||||||
| S | v | ||||||||
| H | v | ||||||||
| length of cut | length | ||||||||
| catalogue number | D1 | D | Ap1 max | L | Re | SS | WS15PE | ||
| 577E12015W | 12,0 | 12 | 26,00 | 83 | 0,75 | W | 5599176 | ||
| 577E16006V | 16,0 | 16 | 32,00 | 92 | — | V | 5599177 | ||
| 577E16016V | 16,0 | 16 | 32,00 | 92 | 0,75 | V | 5599178 | ||
| 577E16016W | 16,0 | 16 | 32,00 | 92 | 0,75 | W | 5599179 | ||
| 577E20007V | 20,0 | 20 | 38,00 | 104 | — | V | 5599180 | ||
| 577E20017V | 20,0 | 20 | 38,00 | 104 | 0,75 | V | 5599181 | ||
| 577E20017W | 20,0 | 20 | 38,00 | 104 | 0,75 | W | 5599182 |
NOTE: SS = Shank Style W = Weldon® V= Safe-Lock™
THE ALL-STAR PROGRAMME FEATURES ONLY THE MOST POPULAR PLATFORMS, GRADES, AND SIZES. FOR THE COMPLETE OFFERING, VISIT WIDIA NOVO ™ OR WIDIA.COM.
