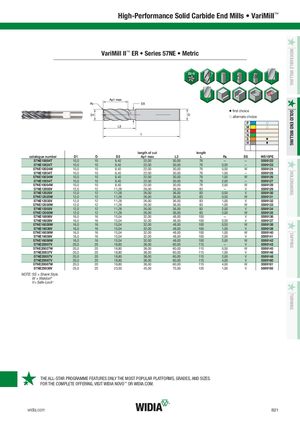

VariMill II™ ER • Series 57NE • Metric
v first choice j alternate choice
| P | j | ||||||||
| M | j | ||||||||
| K | |||||||||
| N | |||||||||
| S | v | ||||||||
| H | v | ||||||||
| length of cut | length | ||||||||
| catalogue number | D1 | D | D3 | Ap1 max | L3 | L | Re | SS | WS15PE |
| 57NE10004T | 10,0 | 10 | 9,40 | 22,00 | 30,00 | 76 | — | — | 5599122 |
| 57NE10024T | 10,0 | 10 | 9,40 | 22,00 | 30,00 | 76 | 0,50 | — | 5599123 |
| 57NE10024W | 10,0 | 10 | 9,40 | 22,00 | 30,00 | 76 | 0,50 | W | 5599124 |
| 57NE10034T | 10,0 | 10 | 9,40 | 22,00 | 30,00 | 76 | 1,00 | — | 5599125 |
| 57NE10034W | 10,0 | 10 | 9,40 | 22,00 | 30,00 | 76 | 1,00 | W | 5599126 |
| 57NE10054T | 10,0 | 10 | 9,40 | 22,00 | 30,00 | 76 | 2,00 | — | 5599127 |
| 57NE10054W | 10,0 | 10 | 9,40 | 22,00 | 30,00 | 76 | 2,00 | W | 5599128 |
| 57NE12005V | 12,0 | 12 | 11,28 | 26,00 | 36,00 | 83 | — | V | 5599129 |
| 57NE12025V | 12,0 | 12 | 11,28 | 26,00 | 36,00 | 83 | 0,50 | V | 5599130 |
| 57NE12025W | 12,0 | 12 | 11,28 | 26,00 | 36,00 | 83 | 0,50 | W | 5599131 |
| 57NE12035V | 12,0 | 12 | 11,28 | 26,00 | 36,00 | 83 | 1,00 | V | 5599132 |
| 57NE12035W | 12,0 | 12 | 11,28 | 26,00 | 36,00 | 83 | 1,00 | W | 5599133 |
| 57NE12055V | 12,0 | 12 | 11,28 | 26,00 | 36,00 | 83 | 2,00 | V | 5599134 |
| 57NE12055W | 12,0 | 12 | 11,28 | 26,00 | 36,00 | 83 | 2,00 | W | 5599135 |
| 57NE16006V | 16,0 | 16 | 15,04 | 32,00 | 48,00 | 100 | — | V | 5599136 |
| 57NE16026V | 16,0 | 16 | 15,04 | 32,00 | 48,00 | 100 | 0,50 | V | 5599137 |
| 57NE16026W | 16,0 | 16 | 15,04 | 32,00 | 48,00 | 100 | 0,50 | W | 5599138 |
| 57NE16036V | 16,0 | 16 | 15,04 | 32,00 | 48,00 | 100 | 1,00 | V | 5599139 |
| 57NE16036W | 16,0 | 16 | 15,04 | 32,00 | 48,00 | 100 | 1,00 | W | 5599140 |
| 57NE16056V | 16,0 | 16 | 15,04 | 32,00 | 48,00 | 100 | 2,00 | V | 5599141 |
| 57NE16056W | 16,0 | 16 | 15,04 | 32,00 | 48,00 | 100 | 2,00 | W | 5599142 |
| 57NE20007V | 20,0 | 20 | 18,80 | 38,00 | 60,00 | 115 | — | V | 5599143 |
| 57NE20027W | 20,0 | 20 | 18,80 | 38,00 | 60,00 | 115 | 0,50 | W | 5599145 |
| 57NE20037V | 20,0 | 20 | 18,80 | 38,00 | 60,00 | 115 | 1,00 | V | 5599146 |
| 57NE20057V | 20,0 | 20 | 18,80 | 38,00 | 60,00 | 115 | 2,00 | V | 5599148 |
| 57NE20087V | 20,0 | 20 | 18,80 | 38,00 | 60,00 | 115 | 4,00 | V | 5599160 |
| 57NE20087W | 20,0 | 20 | 18,80 | 38,00 | 60,00 | 115 | 4,00 | W | 5599161 |
| 57NE25038V | 25,0 | 25 | 23,50 | 45,00 | 75,00 | 135 | 1,00 | V | 5599165 |
NOTE: SS = Shank Style W = Weldon® V= Safe-Lock™
THE ALL-STAR PROGRAMME FEATURES ONLY THE MOST POPULAR PLATFORMS, GRADES, AND SIZES. FOR THE COMPLETE OFFERING, VISIT WIDIA NOVO ™ OR WIDIA.COM.
