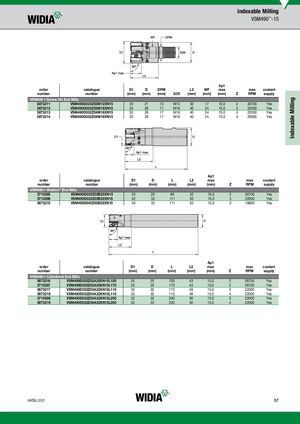

Indexable Milling Indexable Milling VSM490™-15 Ap1 order catalogue D1 D DPM L2 WF max max coolant number number (mm) (mm) (mm) G3X (mm) (mm) (mm) Z RPM supply VSM490 • Screw-On End Mills 5873211 VSM490D025Z02M12XN15 25 21 13 M12 32 17 15,0 2 26700 Yes 5873212 VSM490D032Z03M16XN15 32 29 17 M16 40 24 15,0 3 22000 Yes 5873213 VSM490D032Z04M16XN15 32 29 17 M16 40 24 15,0 4 22000 Yes 5873214 VSM490D035Z04M16XN15 35 29 17 M16 40 24 15,0 4 20600 Yes Ap1 order catalogue D1 D L L2 max max coolant number number (mm) (mm) (mm) (mm) (mm) Z RPM supply VSM490 • Weldon® End Mills 5710285 VSM490D025Z02B25XN15 25 25 89 32 15,0 2 26700 Yes 5710286 VSM490D032Z03B32XN15 32 32 111 50 15,0 3 22000 Yes 5873215 VSM490D040Z03B32XN15 40 32 111 50 15,0 3 18800 Yes Ap1 order catalogue D1 D L L2 max max coolant number number (mm) (mm) (mm) (mm) (mm) Z RPM supply VSM490 • Cylindrical End Mills 5873216 VSM490D025Z02A25XN15L100 25 25 100 43 15,0 2 26700 Yes 5710287 VSM490D025Z02A25XN15L170 25 25 170 43 15,0 2 26700 Yes 5873217 VSM490D032Z03A32XN15L110 32 32 110 49 15,0 3 22000 Yes 5873218 VSM490D032Z04A32XN15L110 32 32 110 49 15,0 4 22000 Yes 5710288 VSM490D032Z03A32XN15L200 32 32 200 50 15,0 3 22000 Yes 5873219 VSM490D032Z04A32XN15L200 32 32 200 50 15,0 4 22000 Yes widia.com 57
