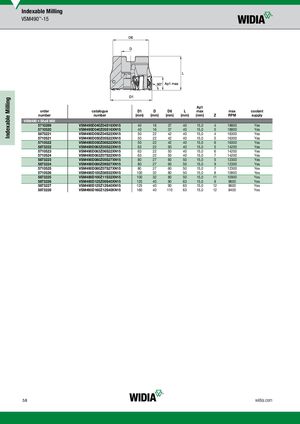

Indexable Milling Indexable Milling VSM490™-15 Ap1 order catalogue D1 D D6 L max max coolant number number (mm) (mm) (mm) (mm) (mm) Z RPM supply VSM490 • Shell Mill 5710289 VSM490D040Z04S16XN15 40 16 37 40 15,0 4 18800 Yes 5710520 VSM490D040Z05S16XN15 40 16 37 40 15,0 5 18800 Yes 5873221 VSM490D050Z04S22XN15 50 22 42 40 15,0 4 16300 Yes 5710521 VSM490D050Z05S22XN15 50 22 42 40 15,0 5 16300 Yes 5710522 VSM490D050Z06S22XN15 50 22 42 40 15,0 6 16300 Yes 5873222 VSM490D063Z05S22XN15 63 22 50 40 15,0 5 14200 Yes 5710523 VSM490D063Z06S22XN15 63 22 50 40 15,0 6 14200 Yes 5710524 VSM490D063Z07S22XN15 63 22 50 40 15,0 7 14200 Yes 5873223 VSM490D080Z05S27XN15 80 27 60 50 15,0 5 12300 Yes 5873224 VSM490D080Z09S27XN15 80 27 60 50 15,0 9 12300 Yes 5710525 VSM490D080Z07S27XN15 80 27 60 50 15,0 7 12300 Yes 5710526 VSM490D100Z08S32XN15 100 32 80 50 15,0 8 10900 Yes 5873225 VSM490D100Z11S32XN15 100 32 80 50 15,0 11 10900 Yes 5873226 VSM490D125Z09S40XN15 125 40 90 63 15,0 9 9600 Yes 5873227 VSM490D125Z12S40XN15 125 40 90 63 15,0 12 9600 Yes 5873228 VSM490D160Z12S40XN15 160 40 110 63 15,0 12 8400 Yes 58 widia.com
