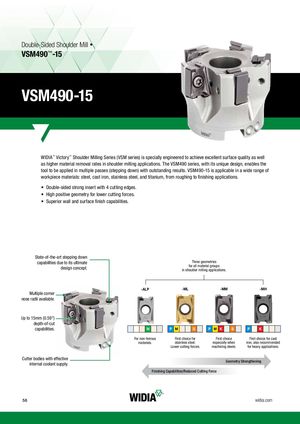

Double-Sided Shoulder Mill • VSM490™-15 VSM490-15 WIDIA™ Victory™ Shoulder Milling Series (VSM series) is specially engineered to achieve excellent surface quality as well as higher material removal rates in shoulder milling applications. The VSM490 series, with its unique design, enables the tool to be applied in multiple passes (stepping down) with outstanding results. VSM490-15 is applicable in a wide range of workpiece materials: steel, cast iron, stainless steel, and titanium, from roughing to finishing applications. • Double-sided strong insert with 4 cutting edges.  • High positive geometry for lower cutting forces.  • Superior wall and surface finish capabilities.  State-of-the-art stepping down capabilities due to its ultimate Three geometries design concept. for all material groupsin shoulder milling applications. -ALP -ML -MM -MH Multiple corner nose radii available. Up to 15mm (0.59") depth-of-cut capabilities. N P M S P M K S P K For non-ferrous First choice for First choice First choice for cast materials. stainless steel. especially when iron, also recommended Lower cutting forces. machining steels. for heavy applications. Cutter bodies with effective internal coolant supply. Geometry Strengthening Finishing Capabilities/Reduced Cutting Force 56 widia.com
