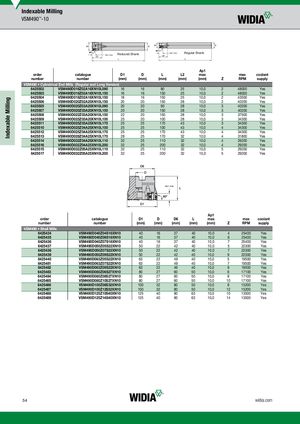

Каталог Widia all star 2019 - страница 56
Навигация
Каталог Widia all star 2020
Каталог Widia токарный инструмент 2017
Каталог Widia достижения 2018
Каталог Widia достижения 2017
Брошюра Widia техническое руководство
Reduced Shank Ap1 max Regular Shank
Ap1 max
Ap1
| order | catalogue D1 | D | L | L2 | max | max | coolant | ||
| number | number (mm) | (mm) | (mm) | (mm) | (mm) | Z | RPM | supply | |
| VSM490 • Cylindrical End Mills (Regular and Long Version) | |||||||||
| 6425502 | VSM490D016Z02A16XN10L090 | 16 | 16 | 90 | 25 | 10,0 | 2 | 48000 | Yes |
| 6425503 | VSM490D016Z02A16XN10L150 | 16 | 16 | 150 | 25 | 10,0 | 2 | 48000 | Yes |
| 6425504 | VSM490D018Z02A16XN10L150 | 18 | 16 | 150 | 25 | 10,0 | 2 | 43500 | Yes |
| 6425506 | VSM490D020Z02A20XN10L150 | 20 | 20 | 150 | 28 | 10,0 | 2 | 40200 | Yes |
| 6425505 | VSM490D020Z03A20XN10L090 | 20 | 20 | 90 | 28 | 10,0 | 3 | 40200 | Yes |
| 6425507 | VSM490D020Z03A20XN10L150 | 20 | 20 | 150 | 28 | 10,0 | 3 | 40200 | Yes |
| 6425508 | VSM490D022Z03A20XN10L150 | 22 | 20 | 150 | 28 | 10,0 | 3 | 37500 | Yes |
| 6425509 | VSM490D025Z03A20XN10L100 | 25 | 20 | 100 | 28 | 10,0 | 3 | 34300 | Yes |
| 6425511 | VSM490D025Z03A25XN10L170 | 25 | 25 | 170 | 43 | 10,0 | 3 | 34300 | Yes |
| 6425510 | VSM490D025Z04A25XN10L100 | 25 | 25 | 100 | 43 | 10,0 | 4 | 34300 | Yes |
| 6425512 | VSM490D025Z04A25XN10L170 | 25 | 25 | 170 | 43 | 10,0 | 4 | 34300 | Yes |
| 6425513 | VSM490D028Z04A25XN10L170 | 28 | 25 | 170 | 32 | 10,0 | 4 | 31800 | Yes |
| 6425514 | VSM490D032Z04A25XN10L110 | 32 | 25 | 110 | 32 | 10,0 | 4 | 29200 | Yes |
| 6425516 | VSM490D032Z04A25XN10L200 | 32 | 25 | 200 | 32 | 10,0 | 4 | 29200 | Yes |
| 6425515 | VSM490D032Z05A25XN10L110 | 32 | 25 | 110 | 32 | 10,0 | 5 | 29200 | Yes |
| 6425517 | VSM490D032Z05A25XN10L200 | 32 | 25 | 200 | 32 | 10,0 | 5 | 29200 | Yes |
Ap1 max
| order number | catalogue number | D1 (mm) | D (mm) | D6 (mm) | L (mm) | Ap1 max (mm) | Z | max RPM | coolant supply |
| VSM490• Shell Mills | |||||||||
| 6425434 | VSM490D040Z04S16XN10 | 40 | 16 | 37 | 40 | 10,0 | 4 | 25400 | Yes |
| 6425435 | VSM490D040Z06S16XN10 | 40 | 16 | 37 | 40 | 10,0 | 6 | 25400 | Yes |
| 6425436 | VSM490D040Z07S16XN10 | 40 | 16 | 37 | 40 | 10,0 | 7 | 25400 | Yes |
| 6425437 | VSM490D050Z05S22XN10 | 50 | 22 | 42 | 40 | 10,0 | 5 | 22300 | Yes |
| 6425438 | VSM490D050Z07S22XN10 | 50 | 22 | 42 | 40 | 10,0 | 7 | 22300 | Yes |
| 6425439 | VSM490D050Z09S22XN10 | 50 | 22 | 42 | 40 | 10,0 | 9 | 22300 | Yes |
| 6425440 | VSM490D063Z05S22XN10 | 63 | 22 | 49 | 40 | 10,0 | 5 | 19500 | Yes |
| 6425481 | VSM490D063Z07S22XN10 | 63 | 22 | 49 | 40 | 10,0 | 7 | 19500 | Yes |
| 6425482 | VSM490D063Z09S22XN10 | 63 | 22 | 49 | 40 | 10,0 | 9 | 19500 | Yes |
| 6425483 | VSM490D080Z06S27XN10 | 80 | 27 | 60 | 50 | 10,0 | 6 | 17100 | Yes |
| 6425484 | VSM490D080Z08S27XN10 | 80 | 27 | 60 | 50 | 10,0 | 8 | 17100 | Yes |
| 6425485 | VSM490D080Z10S27XN10 | 80 | 27 | 60 | 50 | 10,0 | 10 | 17100 | Yes |
| 6425486 | VSM490D100Z08S32XN10 | 100 | 32 | 80 | 50 | 10,0 | 8 | 15200 | Yes |
| 6425487 | VSM490D100Z12S32XN10 | 100 | 32 | 80 | 50 | 10,0 | 12 | 15200 | Yes |
| 6425488 | VSM490D125Z10S40XN10 | 125 | 40 | 90 | 63 | 10,0 | 10 | 13500 | Yes |
| 6425489 | VSM490D125Z14S40XN10 | 125 | 40 | 90 | 63 | 10,0 | 14 | 13500 | Yes |
