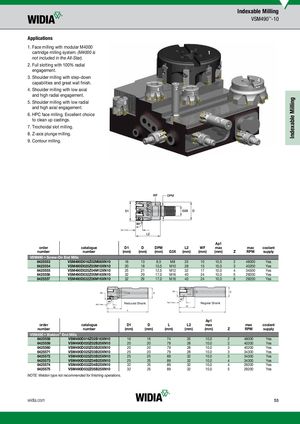

Каталог Widia all star 2019 - страница 55
Навигация
Каталог Widia all star 2020
Каталог Widia токарный инструмент 2017
Каталог Widia достижения 2018
Каталог Widia достижения 2017
Брошюра Widia техническое руководство
Applications
1. Face milling with modular M4000
cartridge milling system. (M4000 is 1
not included in the All-Star).
2. Full slotting with 100% radial
engagement.
3. Shoulder milling with step-down
4
capabilities and great wall finish.
4. Shoulder milling with low axial 4 2
and high radial engagement. 3 5. Shoulder milling with low radial 8 and high axial engagement. 6. HPC face milling. Excellent choice
to clean up castings. 5
7. Trochoidal slot milling. 8. Z-axis plunge milling.
9. Contour milling. 6 7 9
Ap1 max
Ap1
| order | catalogue | D1 | D | DPM | L2 | WF | max | max | coolant | |||
| number | number | (mm) | (mm) | (mm) | G3X | (mm) | (mm) | (mm) | Z | RPM | supply | |
| VSM490 • Screw-On End Mills | ||||||||||||
| 6425553 | VSM490D016Z02M08XN10 | 16 | 13 | 8,5 | M8 | 25 | 10 | 10,0 | 2 | 48000 | Yes | |
| 6425554 | VSM490D020Z03M10XN10 | 20 | 18 | 10,5 | M10 | 28 | 15 | 10,0 | 3 | 40200 | Yes | |
| 6425555 | VSM490D025Z04M12XN10 | 25 | 21 | 12,5 | M12 | 32 | 17 | 10,0 | 4 | 34300 | Yes | |
| 6425556 | VSM490D032Z05M16XN10 | 32 | 29 | 17,0 | M16 | 40 | 24 | 10,0 | 5 | 29200 | Yes | |
| 6425557 | VSM490D032Z06M16XN10 | 32 | 29 | 17,0 | M16 | 40 | 24 | 10,0 | 6 | 29200 | Yes |
Reduced Shank Ap1 max Regular Shank
Ap1 max
Ap1
| order | catalogue D1 | D | L | L2 | max | max | coolant | ||
| number | number (mm) | (mm) | (mm) | (mm) | (mm) | Z | RPM | supply | |
| VSM490 • Weldon® End Mills | |||||||||
| 6425558 | VSM490D016Z02B16XN10 | 16 | 16 | 74 | 25 | 10,0 | 2 | 48000 | Yes |
| 6425559 | VSM490D020Z02B20XN10 | 20 | 20 | 79 | 28 | 10,0 | 2 | 40200 | Yes |
| 6425560 | VSM490D020Z03B20XN10 | 20 | 20 | 79 | 28 | 10,0 | 3 | 40200 | Yes |
| 6425571 | VSM490D025Z03B20XN10 | 25 | 20 | 79 | 28 | 10,0 | 3 | 34300 | Yes |
| 6425572 | VSM490D025Z03B25XN10 | 25 | 25 | 89 | 32 | 10,0 | 3 | 34300 | Yes |
| 6425573 | VSM490D025Z04B25XN10 | 25 | 25 | 89 | 32 | 10,0 | 4 | 34300 | Yes |
| 6425574 | VSM490D032Z04B25XN10 | 32 | 25 | 89 | 32 | 10,0 | 4 | 29200 | Yes |
| 6425575 | VSM490D032Z05B25XN10 | 32 | 25 | 89 | 32 | 10,0 | 5 | 29200 | Yes |
NOTE: Weldon type not recommended for finishing operations.
