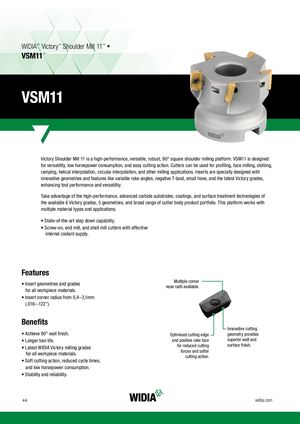

WIDIA™ Victory™ Shoulder Mill 11™ • VSM11 ™ VSM11 Victory Shoulder Mill 11 is a high-performance, versatile, robust, 90° square shoulder milling platform. VSM11 is designed for versatility, low horsepower consumption, and easy cutting action. Cutters can be used for profiling, face milling, slotting, ramping, helical interpolation, circular interpolation, and other milling applications. Inserts are specially designed with innovative geometries and features like variable rake angles, negative T-land, small hone, and the latest Victory grades, enhancing tool performance and versatility. Take advantage of the high-performance, advanced carbide substrates, coatings, and surface treatment technologies of the available 6 Victory grades, 5 geometries, and broad range of cutter body product portfolio. This platform works with multiple material types and applications. • State-of-the-art step down capability. • Screw-on, end mill, and shell mill cutters with effective internal coolant supply. Features Multiple corner • Insert geometries and grades nose radii available. for all workpiece materials. • Insert corner radius from 0,4–3,1mm (.016–.122"). Benefits Innovative cutting • Achieve 90° wall finish. Optimised cutting edge geometry provides • Longer tool life. and positive rake face superior wall and for reduced cutting surface finish. • Latest WIDIA Victory milling grades forces and softer for all workpiece materials. cutting action. • Soft cutting action, reduced cycle times, and low horsepower consumption. • Stability and reliability. 44 widia.com
