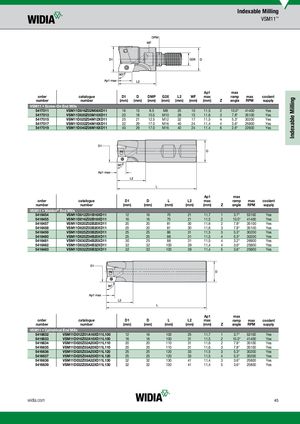

Ap1 max
| order | catalogue | D1 | D | DMP | G3X | L2 | WF | max | ramp | max | coolant | ||
| number | number | (mm) | (mm) | (mm) | (mm) | (mm) | (mm) | (mm) | Z | angle | RPM | supply | |
| VSM11 • Screw-On End Mills | |||||||||||||
| 5417011 | VSM11D016Z02M08XD11 | 16 | 13 | 8.5 | M8 | 25 | 10 | 11,5 | 2 | 10.0° | 41400 | Yes | |
| 5417013 | VSM11D020Z03M10XD11 | 20 | 18 | 10.5 | M10 | 28 | 15 | 11,6 | 3 | 7.8° | 35100 | Yes | |
| 5417015 | VSM11D025Z04M12XD11 | 25 | 21 | 12.5 | M12 | 32 | 17 | 11,5 | 4 | 5.3° | 30200 | Yes | |
| 5417017 | VSM11D032Z04M16XD11 | 32 | 29 | 17.0 | M16 | 40 | 24 | 11,4 | 4 | 3.6° | 25800 | Yes | |
| 5417019 | VSM11D040Z06M16XD11 | 40 | 29 | 17.0 | M16 | 40 | 24 | 11,4 | 6 | 2.6° | 22600 | Yes |
Ap1 max
| order | catalogue D1 | D | L | L2 | max | ramp | max | coolant | ||
| number | number (mm) | (mm) | (mm) | (mm) | (mm) | Z | angle | RPM | supply | |
| VSM11 • Weldon® End Mills | ||||||||||
| 5416454 | VSM11D012Z01B16XD11 | 12 | 16 | 70 | 21 | 11,7 | 1 | 3.7° | 53100 | Yes |
| 5416455 | VSM11D016Z02B16XD11 | 16 | 16 | 70 | 21 | 11,5 | 2 | 10.0° | 41400 | Yes |
| 5416457 | VSM11D020Z02B20XD11 | 20 | 20 | 81 | 30 | 11,6 | 2 | 7.8° | 35100 | Yes |
| 5416458 | VSM11D020Z03B20XD11 | 20 | 20 | 81 | 30 | 11,6 | 3 | 7.8° | 35100 | Yes |
| 5416459 | VSM11D025Z03B25XD11 | 25 | 25 | 88 | 31 | 11,5 | 3 | 5.3° | 30200 | Yes |
| 5416480 | VSM11D025Z04B25XD11 | 25 | 25 | 88 | 31 | 11,5 | 4 | 5.3° | 30200 | Yes |
| 5416481 | VSM11D030Z04B25XD11 | 30 | 25 | 88 | 31 | 11,5 | 4 | 3.2° | 26900 | Yes |
| 5416482 | VSM11D032Z04B32XD11 | 32 | 32 | 100 | 39 | 11,4 | 4 | 3.6° | 25800 | Yes |
| 5416483 | VSM11D032Z05B32XD11 | 32 | 32 | 100 | 39 | 11,4 | 5 | 3.6° | 25800 | Yes |
Ap1 max
| order | catalogue D1 | D | L | L2 | max | ramp | max | coolant | ||
| number | number (mm) | (mm) | (mm) | (mm) | (mm) | Z | angle | RPM | supply | |
| VSM11 • Cylindrical End Mills | ||||||||||
| 5416632 | VSM11D012Z01A16XD11L100 | 12 | 16 | 100 | 25 | 11,7 | 1 | 3.7° | 53100 | Yes |
| 5416633 | VSM11D016Z02A16XD11L100 | 16 | 16 | 100 | 31 | 11,5 | 2 | 10.0° | 41400 | Yes |
| 5416634 | VSM11D020Z02A20XD11L110 | 20 | 20 | 110 | 31 | 11,6 | 2 | 7.8° | 35100 | Yes |
| 5416635 | VSM11D020Z03A20XD11L110 | 20 | 20 | 110 | 31 | 11,6 | 3 | 7.8° | 35100 | Yes |
| 5416636 | VSM11D025Z03A25XD11L120 | 25 | 25 | 120 | 33 | 11,5 | 3 | 5.3° | 30200 | Yes |
| 5416637 | VSM11D025Z04A25XD11L120 | 25 | 25 | 120 | 33 | 11,5 | 4 | 5.3° | 30200 | Yes |
| 5416638 | VSM11D032Z03A32XD11L130 | 32 | 32 | 130 | 41 | 11,4 | 3 | 3.6° | 25800 | Yes |
| 5416639 | VSM11D032Z05A32XD11L130 | 32 | 32 | 130 | 41 | 11,4 | 5 | 3.6° | 25800 | Yes |
