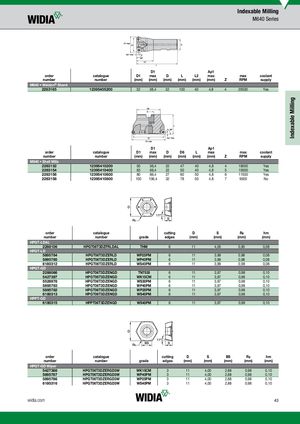

D1 Ap1
| order | catalogue | D1 | max | D | L | L2 | max | max | coolant | |||
| number | number | (mm) | (mm) | (mm) | (mm) | (mm) | (mm) | Z | RPM | supply | ||
| M640 • Weldon® Shank | ||||||||||||
| 2263165 | 12395405200 | 32 | 38,4 | 32 | 100 | 40 | 4,8 | 4 | 29500 | Yes |
D1 Ap1
| order | catalogue | D1 | max | D | D6 | L | max | max | coolant | ||
| number | number | (mm) | (mm) | (mm) | (mm) | (mm) | (mm) | Z | RPM | supply | |
| M640 • Shell Mills | |||||||||||
| 2263132 | 12395410200 | 50 | 56,4 | 22 | 47 | 40 | 4,8 | 4 | 19000 | Yes | |
| 2263154 | 12395410400 | 63 | 69,4 | 22 | 50 | 40 | 4,8 | 5 | 15000 | Yes | |
| 2263156 | 12395410600 | 80 | 86,4 | 27 | 60 | 50 | 4,8 | 6 | 11500 | Yes | |
| 2263158 | 12395410800 | 100 | 106,4 | 32 | 78 | 50 | 4,8 | 7 | 9500 | No |
| order | catalogue | cutting | D | S | Rε | hm | ||
| number | number grade | edges | (mm) | (mm) | (mm) | (mm) | ||
| HPGT-LDAL | ||||||||
| 2288106 | HPGT06T3DZFRLDAL | THM | 6 | 11 | 4,00 | 0,90 | 0,08 | |
| HPGT-LD | ||||||||
| 5895784 | HPGT06T3DZERLD | WP25PM | 6 | 11 | 3,99 | 0,98 | 0,08 | |
| 5895785 | HPGT06T3DZERLD | WP40PM | 6 | 11 | 3,99 | 0,98 | 0,08 | |
| 6180312 | HPGT06T3DZERLD | WS40PM | 6 | 11 | 3,99 | 0,98 | 0,08 | |
| HPGT-GD | ||||||||
| 2288066 | HPGT06T3DZENGD | TN7535 | 6 | 11 | 3,97 | 0,98 | 0,10 | |
| 5427387 | HPGT06T3DZENGD | WK15CM | 6 | 11 | 3,97 | 0,98 | 0,10 | |
| 5528978 | HPGT06T3DZENGD | WS30PM | 6 | 11 | 3,97 | 0,98 | 0,10 | |
| 5895783 | HPGT06T3DZENGD | WP40PM | 6 | 11 | 3,97 | 0,98 | 0,10 | |
| 5895782 | HPGT06T3DZENGD | WP25PM | 6 | 11 | 3,97 | 0,98 | 0,10 | |
| 6180313 | HPGT06T3DZENGD | WS40PM | 6 | 11 | 3,97 | 0,98 | 0,10 | |
| HPPT-GD | ||||||||
| 6180315 | HPPT06T3DZENGD | WS40PM | 6 | 11 | 3,97 | 0,98 | 0,10 |
| order | catalogue | cutting | D | S | BS | Rε | hm | ||
| number | number | grade | edges | (mm) | (mm) | (mm) | (mm) | (mm) | |
| HPGT-GD Wiper | |||||||||
| 5427388 | HPGT06T3DZERGD3W | WK15CM | 3 | 11 | 4,00 | 2,88 | 0,98 | 0,10 | |
| 5895787 | HPGT06T3DZERGD3W | WP40PM | 3 | 11 | 4,00 | 2,88 | 0,98 | 0,10 | |
| 5895786 | HPGT06T3DZERGD3W | WP25PM | 3 | 11 | 4,00 | 2,88 | 0,98 | 0,10 | |
| 6180316 | HPGT06T3DZERGD3W | WS40PM | 3 | 11 | 4,00 | 2,88 | 0,98 | 0,10 |
Language Version: 42_43_WID_All-Star19_INDM_M640 September 27, 2018 9:28 AM
