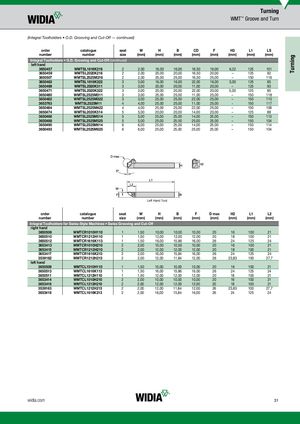

(Integral Toolholders • O.D. Grooving and Cut-Off — continued)
| order number | catalogue number | seat size | W (mm) | H (mm) | B (mm) | CD (mm) | F (mm) | H3 (mm) | L1 (mm) | LS (mm) |
| Integral Toolholders left hand | • O.D. Grooving and Cut-Off( | continued) | ||||||||
| 3650457 | WMTSL1616K216 | 2 | 2,00 | 16,00 | 16,00 | 16,50 | 16,00 | 6,22 | 125 | 101 |
| 3650459 | WMTSL2020K216 | 2 | 2,00 | 20,00 | 20,00 | 16,50 | 20,00 | – | 125 | 92 |
| 3650507 | WMTSL2525M216 | 2 | 2,00 | 25,00 | 25,00 | 16,50 | 25,00 | – | 150 | 116 |
| 3650463 | WMTSL1616K322 | 3 | 3,00 | 16,00 | 16,00 | 22,00 | 16,00 | 5,00 | 125 | 85 |
| 3650469 | WMTSL2020K311 | 3 | 3,00 | 20,00 | 20,00 | 11,00 | 20,00 | – | 125 | 93 |
| 3650471 | WMTSL2020K322 | 3 | 3,00 | 20,00 | 20,00 | 22,00 | 20,00 | 5,00 | 125 | 85 |
| 3650480 | WMTSL2525M311 | 3 | 3,00 | 25,00 | 25,00 | 11,00 | 25,00 | – | 150 | 118 |
| 3650482 | WMTSL2525M322 | 3 | 3,00 | 25,00 | 25,00 | 22,00 | 25,00 | – | 150 | 110 |
| 3653763 | WMTSL2525M11 | 4 | 4,00 | 25,00 | 25,00 | 11,00 | 25,00 | - | 150 | 117 |
| 3650484 | WMTSL2525M422 | 4 | 4,00 | 25,00 | 25,00 | 22,00 | 25,00 | – | 150 | 109 |
| 3650474 | WMTSL2020K514 | 5 | 5,00 | 20,00 | 20,00 | 14,00 | 20,00 | – | 125 | 88 |
| 3650486 | WMTSL2525M514 | 5 | 5,00 | 25,00 | 25,00 | 14,00 | 25,00 | – | 150 | 113 |
| 3650488 | WMTSL2525M525 | 5 | 5,00 | 25,00 | 25,00 | 25,00 | 25,00 | – | 150 | 104 |
| 3650490 | WMTSL2525M614 | 6 | 6,00 | 25,00 | 25,00 | 14,00 | 25,00 | – | 150 | 114 |
| 3650493 | WMTSL2525M625 | 6 | 6,00 | 25,00 | 25,00 | 25,00 | 25,00 | – | 150 | 104 |
| L | eft Hand Tool | |||||||||
| order number | catalogue number | seat size | W (mm) | H (mm) | B (mm) | F (mm) | D max (mm) | H2 (mm) | L1 (mm) | L2 (mm) |
| Integral Toolholders right hand | for Swiss-Style Machines• S | wiss Groovin | g and Cut- | Off | ||||||
| 3650508 | WMTCR1010H110 | 1 | 1,50 | 10,00 | 10,00 | 10,00 | 20 | 16 | 100 | 21 |
| 3650510 | WMTCR1212H110 | 1 | 1,50 | 12,00 | 12,00 | 12,00 | 20 | 18 | 100 | 21 |
| 3650512 | WMTCR1616K113 | 1 | 1,50 | 16,00 | 15,86 | 16,00 | 26 | 24 | 125 | 24 |
| 3653413 | WMTCR1010H210 | 2 | 2,00 | 10,00 | 10,00 | 10,00 | 20 | 16 | 100 | 21 |
| 3653415 | WMTCR1212H210 | 2 | 2,00 | 12,00 | 12,00 | 12,00 | 20 | 18 | 100 | 21 |
| 3653417 | WMTCR1616K213 | 2 | 2,00 | 16,00 | 15,84 | 16,00 | 26 | 24 | 125 | 24 |
| 3539162 | WMTCR1212H213 | 2 | 2,00 | 12,00 | 11,84 | 12,00 | 26 | 23,83 | 100 | 27,7 |
| left hand | ||||||||||
| 3650509 | WMTCL1010H110 | 1 | 1,50 | 10,00 | 10,00 | 10,00 | 20 | 16 | 100 | 21 |
| 3650513 | WMTCL1616K113 | 1 | 1,50 | 16,00 | 15,86 | 16,00 | 26 | 24 | 125 | 24 |
| 3650511 | WMTCL1212H110 | 1 | 1,50 | 12,00 | 12,00 | 12,00 | 20 | 18 | 100 | 21 |
| 3653414 | WMTCL1010H210 | 2 | 2,00 | 10,00 | 10,00 | 10,00 | 20 | 16 | 100 | 21 |
| 3653416 | WMTCL1212H210 | 2 | 2,00 | 12,00 | 12,00 | 12,00 | 20 | 18 | 100 | 21 |
| 3539163 | WMTCL1212H213 | 2 | 2,00 | 12,00 | 11,84 | 12,00 | 26 | 23,83 | 100 | 27,7 |
| 3653418 | WMTCL1616K213 | 2 | 2,00 | 16,00 | 15,84 | 16,00 | 26 | 24 | 125 | 24 |
