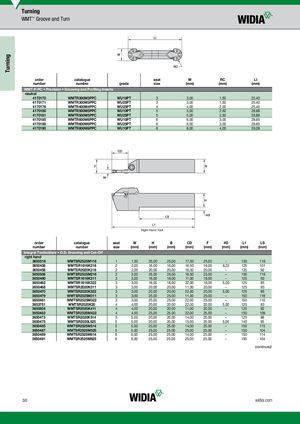

| order number | catalogue number | grade | seat size | W (mm) | RC (mm) | LI (mm) |
| WMT-P-PC• Precisi | on• Grooving and Profiling Ins | erts | ||||
| neutral | ||||||
| 4170170 | WMTR300M3PPC | WU10PT | 3 | 3,00 | 1,50 | 25,40 |
| 4170171 | WMTR300M3PPC | WU25PT | 3 | 3,00 | 1,50 | 25,40 |
| 4170176 | WMTR400M4PPC | WU25PT | 4 | 4,00 | 2,00 | 25,45 |
| 4170180 | WMTR500M5PPC | WU10PT | 5 | 5,00 | 2,50 | 28,88 |
| 4170181 | WMTR500M5PPC | WU25PT | 5 | 5,00 | 2,50 | 28,88 |
| 4170185 | WMTR600M6PPC | WU10PT | 6 | 6,00 | 3,00 | 28,65 |
| 4170186 | WMTR600M6PPC | WU25PT | 6 | 6,00 | 3,00 | 28,65 |
| 4170190 | WMTR800M8PPC | WU10PT | 8 | 8,00 | 4,00 | 29,08 |
| R | ight Hand To | ol | ||||||||
| order number | catalogue number | seat size | W (mm) | H (mm) | B (mm) | CD (mm) | F (mm) | H3 (mm) | L1 (mm) | LS (mm) |
| Integral Toolholders right hand | • O.D. Grooving and Cut-Off | |||||||||
| 3650516 | WMTSR2525M116 | 1 | 1,50 | 25,00 | 25,00 | 17,00 | 25,00 | - | 150 | 116 |
| 3650456 | WMTSR1616K216 | 2 | 2,00 | 16,00 | 16,00 | 16,50 | 16,00 | 6,22 | 125 | 101 |
| 3650458 | WMTSR2020K216 | 2 | 2,00 | 20,00 | 20,00 | 16,50 | 20,00 | – | 125 | 92 |
| 3650506 | WMTSR2525M216 | 2 | 2,00 | 25,00 | 25,00 | 16,50 | 25,00 | – | 150 | 116 |
| 3650460 | WMTSR1616K311 | 3 | 3,00 | 16,00 | 16,00 | 11,00 | 16,00 | - | 125 | 93 |
| 3650462 | WMTSR1616K322 | 3 | 3,00 | 16,00 | 16,00 | 22,00 | 16,00 | 5,00 | 125 | 85 |
| 3650468 | WMTSR2020K311 | 3 | 3,00 | 20,00 | 20,00 | 11,00 | 20,00 | – | 125 | 93 |
| 3650470 | WMTSR2020K322 | 3 | 3,00 | 20,00 | 20,00 | 22,00 | 20,00 | 5,00 | 125 | 85 |
| 3650479 | WMTSR2525M311 | 3 | 3,00 | 25,00 | 25,00 | 11,00 | 25,00 | – | 150 | 118 |
| 3650481 | WMTSR2525M322 | 3 | 3,00 | 25,00 | 25,00 | 22,00 | 25,00 | – | 150 | 110 |
| 3653751 | WMTSR2020K20 | 4 | 4,00 | 20,00 | 20,00 | 22,00 | 20,00 | 5,00 | 125 | 83 |
| 3650504 | WMTSR2020K411 | 4 | 4,00 | 20,00 | 20,00 | 11,00 | 20,00 | – | 125 | 92 |
| 3650483 | WMTSR2525M422 | 4 | 4,00 | 25,00 | 25,00 | 22,00 | 25,00 | – | 150 | 109 |
| 3650473 | WMTSR2020K514 | 5 | 5,00 | 20,00 | 20,00 | 14,00 | 20,00 | – | 125 | 88 |
| 3650475 | WMTSR2020L525 | 5 | 5,00 | 20,00 | 20,00 | 15,00 | 20,00 | 5,00 | 140 | 93 |
| 3650485 | WMTSR2525M514 | 5 | 5,00 | 25,00 | 25,00 | 14,00 | 25,00 | – | 150 | 115 |
| 3650487 | WMTSR2525M525 | 5 | 5,00 | 25,00 | 25,00 | 25,00 | 25,00 | – | 150 | 104 |
| 3650489 | WMTSR2525M614 | 6 | 6,00 | 25,00 | 25,00 | 14,00 | 25,00 | – | 150 | 114 |
| 3650491 | WMTSR2525M625 | 6 | 6,00 | 25,00 | 25,00 | 25,00 | 25,00 | – | 150 | 104 |
| (continued) |
