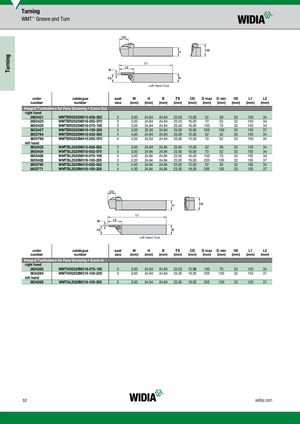

Каталог Widia all star 2019 - страница 34
Навигация
Каталог Widia all star 2020
Каталог Widia токарный инструмент 2017
Каталог Widia достижения 2018
Каталог Widia достижения 2017
Брошюра Widia техническое руководство
Left Hand Tool
| order | catalogue seat | W | H | B | FS | CD | D max | D min | H2 | L1 | L2 | |
| number | number size | (mm) | (mm) | (mm) | (mm) | (mm) | (mm) | (mm) | (mm) | (mm) | (mm) | |
| Integral Toolholders for Face Grooving • Curve Out | ||||||||||||
| right hand | ||||||||||||
| 3653421 | WMTBR2525M313-038-052 | 3 | 3,00 | 24,84 | 24,84 | 23,50 | 13,00 | 52 | 38 | 32 | 150 | 34 |
| 3653423 | WMTBR2525M316-052-070 | 3 | 3,00 | 24,84 | 24,84 | 23,50 | 16,00 | 70 | 52 | 32 | 150 | 34 |
| 3653425 | WMTBR2525M316-070-100 | 3 | 3,00 | 24,84 | 24,84 | 23,50 | 16,00 | 100 | 70 | 32 | 150 | 34 |
| 3653427 | WMTBR2525M319-100-205 | 3 | 3,00 | 25,00 | 24,84 | 23,50 | 19,00 | 205 | 100 | 32 | 150 | 37 |
| 3653764 | WMTBR2525M412-032-052 | 4 | 4,00 | 24,84 | 24,84 | 23,00 | 12,50 | 52 | 32 | 32 | 150 | 34 |
| 3653766 | WMTBR2525M415-052-070 | 4 | 4,00 | 24,84 | 24,84 | 23,00 | 15,50 | 70 | 52 | 32 | 150 | 34 |
| left hand | ||||||||||||
| 3653422 | WMTBL2525M313-038-052 | 3 | 3,00 | 24,84 | 24,84 | 23,50 | 13,00 | 52 | 38 | 32 | 150 | 34 |
| 3653424 | WMTBL2525M316-052-070 | 3 | 3,00 | 24,84 | 24,84 | 23,50 | 16,00 | 70 | 52 | 32 | 150 | 34 |
| 3653426 | WMTBL2525M316-070-100 | 3 | 3,00 | 24,84 | 24,84 | 23,50 | 16,00 | 100 | 70 | 32 | 150 | 34 |
| 3653428 | WMTBL2525M319-100-205 | 3 | 3,00 | 24,84 | 24,84 | 23,50 | 19,00 | 205 | 100 | 32 | 150 | 37 |
| 3653765 | WMTBL2525M412-032-052 | 4 | 4,00 | 24,84 | 24,84 | 23,00 | 12,50 | 52 | 32 | 32 | 150 | 34 |
| 3653771 | WMTBL2525M418-100-205 | 4 | 4,00 | 24,84 | 24,84 | 23,00 | 18,50 | 205 | 100 | 32 | 150 | 37 |
Left Hand Tool
| order | catalogue | seat | W | H | B | FS | CD | D max | D min | H2 | L1 | L2 | ||
| number | number | size | (mm) | (mm) | (mm) | (mm) | (mm) | (mm) | (mm) | (mm) | (mm) | (mm) | ||
| Integral Toolholders for Face Grooving • Curve In | ||||||||||||||
| right hand | ||||||||||||||
| 3634282 | WMTAR2525M316-070-100 | 3 | 3,00 | 24,84 | 24,84 | 23,50 | 15,88 | 100 | 70 | 32 | 150 | 34 | ||
| 3634284 | WMTAR2525M319-100-205 | 3 | 3,00 | 24,84 | 24,84 | 23,50 | 19,05 | 205 | 100 | 32 | 150 | 37 | ||
| left hand | ||||||||||||||
| 3634285 | WMTAL2525M319-100-205 | 3 | 3,00 | 24,84 | 24,84 | 23,50 | 19,05 | 205 | 100 | 32 | 150 | 37 |
