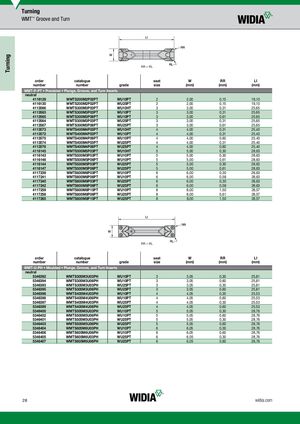

Каталог Widia all star 2019 - страница 30
Навигация
Каталог Widia all star 2020
Каталог Widia токарный инструмент 2017
Каталог Widia достижения 2018
Каталог Widia достижения 2017
Брошюра Widia техническое руководство
| order number | catalogue number | grade R | seat size R = RL | W (mm) | RR (mm) | LI (mm) |
| WMT-P-PT• Precisi | on• Plunge, Groove, and Turn I | nserts | ||||
| neutral | ||||||
| 4116129 | WMTS200M2P02PT | WU10PT | 2 | 2,00 | 0,15 | 19,10 |
| 4116130 | WMTS200M2P02PT | WU25PT | 2 | 2,00 | 0,15 | 19,10 |
| 4113566 | WMTS300M3P03PT | WU10HT | 3 | 3,00 | 0,31 | 25,65 |
| 4113563 | WMTS300M3P03PT | WU10PT | 3 | 3,00 | 0,31 | 25,65 |
| 4113565 | WMTS300M3P06PT | WU10PT | 3 | 3,00 | 0,61 | 25,65 |
| 4113564 | WMTS300M3P03PT | WU25PT | 3 | 3,00 | 0,31 | 25,65 |
| 4113567 | WMTS300M3P06PT | WU25PT | 3 | 3,00 | 0,61 | 25,65 |
| 4113573 | WMTS400M4P03PT | WU10HT | 4 | 4,00 | 0,31 | 25,40 |
| 4113572 | WMTS400M4P03PT | WU10PT | 4 | 4,00 | 0,31 | 25,40 |
| 4113575 | WMTS400M4P06PT | WU10PT | 4 | 4,00 | 0,60 | 25,40 |
| 4113574 | WMTS400M4P03PT | WU25PT | 4 | 4,00 | 0,31 | 25,40 |
| 4113576 | WMTS400M4P06PT | WU25PT | 4 | 4,00 | 0,60 | 25,40 |
| 4116145 | WMTS500M5P03PT | WU10HT | 5 | 5,00 | 0,30 | 28,63 |
| 4116143 | WMTS500M5P03PT | WU10PT | 5 | 5,00 | 0,30 | 28,63 |
| 4116146 | WMTS500M5P06PT | WU10PT | 5 | 5,00 | 0,61 | 28,63 |
| 4116144 | WMTS500M5P03PT | WU25PT | 5 | 5,00 | 0,30 | 28,63 |
| 4116147 | WMTS500M5P06PT | WU25PT | 5 | 5,00 | 0,61 | 28,63 |
| 4117239 | WMTS600M6P03PT | WU10PT | 6 | 6,00 | 0,30 | 28,63 |
| 4117241 | WMTS600M6P06PT | WU10PT | 6 | 6,00 | 0,58 | 28,63 |
| 4117240 | WMTS600M6P03PT | WU25PT | 6 | 6,00 | 0,30 | 28,63 |
| 4117242 | WMTS600M6P06PT | WU25PT | 6 | 6,00 | 0,58 | 28,63 |
| 4117259 | WMTS800M8P15PT | WU10PT | 8 | 8,00 | 1,50 | 28,57 |
| 4117258 | WMTS800M8P06PT | WU25PT | 8 | 8,00 | 0,61 | 28,57 |
| 4117260 | WMTS800M8P15PT | WU25PT | 8 | 8,00 | 1,50 | 28,57 |
| RR = RL | ||||||
| order number | catalogue number | grade | seat size | W (mm) | RR (mm) | LI (mm) |
| WMT-U-PH• Mould neutral | ed• Plunge, Groove, and Turn In | serts | ||||
| 5346392 | WMTS305M3U03PH | WU10PT | 3 | 3,05 | 0,30 | 25,81 |
| 5346394 | WMTS305M3U06PH | WU10PT | 3 | 3,05 | 0,60 | 25,81 |
| 5346393 | WMTS305M3U03PH | WU25PT | 3 | 3,05 | 0,30 | 25,81 |
| 5346395 | WMTS305M3U06PH | WU25PT | 3 | 3,05 | 0,60 | 25,81 |
| 5346396 | WMTS405M4U03PH | WU10PT | 4 | 4,05 | 0,30 | 25,53 |
| 5346398 | WMTS405M4U06PH | WU10PT | 4 | 4,05 | 0,60 | 25,53 |
| 5346397 | WMTS405M4U03PH | WU25PT | 4 | 4,05 | 0,30 | 25,53 |
| 5346399 | WMTS405M4U06PH | WU25PT | 4 | 4,05 | 0,60 | 25,53 |
| 5346400 | WMTS505M5U03PH | WU10PT | 5 | 5,05 | 0,30 | 28,76 |
| 5346402 | WMTS505M5U06PH | WU10PT | 5 | 5,05 | 0,60 | 28,76 |
| 5346401 | WMTS505M5U03PH | WU25PT | 5 | 5,05 | 0,30 | 28,76 |
| 5346403 | WMTS505M5U06PH | WU25PT | 5 | 5,05 | 0,60 | 28,76 |
| 5346404 | WMTS605M6U03PH | WU10PT | 6 | 6,05 | 0,30 | 28,76 |
| 5346406 | WMTS605M6U06PH | WU10PT | 6 | 6,05 | 0,60 | 28,76 |
| 5346405 | WMTS605M6U03PH | WU25PT | 6 | 6,05 | 0,30 | 28,76 |
| 5346407 | WMTS605M6U06PH | WU25PT | 6 | 6,05 | 0,60 | 28,76 |
