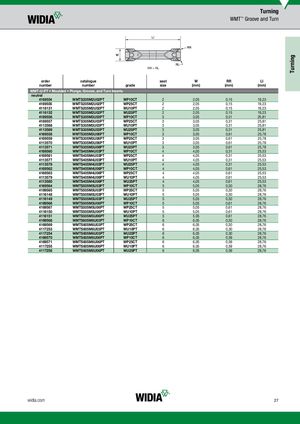

Каталог Widia all star 2019 - страница 29
Навигация
Каталог Widia all star 2020
Каталог Widia токарный инструмент 2017
Каталог Widia достижения 2018
Каталог Widia достижения 2017
Брошюра Widia техническое руководство
| order number | catalogue number | grade R | seat size R = RL | W (mm) | RR (mm) | LI (mm) |
| WMT-U-PT• Mould | ed• Plunge, Groove, and Turn In | serts | ||||
| neutral | ||||||
| 4169554 | WMTS205M2U02PT | WP10CT | 2 | 2,05 | 0,15 | 19,23 |
| 4169555 | WMTS205M2U02PT | WP25CT | 2 | 2,05 | 0,15 | 19,23 |
| 4116131 | WMTS205M2U02PT | WU10PT | 2 | 2,05 | 0,15 | 19,23 |
| 4116132 | WMTS205M2U02PT | WU25PT | 2 | 2,05 | 0,15 | 19,23 |
| 4169556 | WMTS305M3U03PT | WP10CT | 3 | 3,05 | 0,31 | 25,81 |
| 4169557 | WMTS305M3U03PT | WP25CT | 3 | 3,05 | 0,31 | 25,81 |
| 4113568 | WMTS305M3U03PT | WU10PT | 3 | 3,05 | 0,31 | 25,81 |
| 4113569 | WMTS305M3U03PT | WU25PT | 3 | 3,05 | 0,31 | 25,81 |
| 4169558 | WMTS305M3U06PT | WP10CT | 3 | 3,05 | 0,61 | 25,78 |
| 4169559 | WMTS305M3U06PT | WP25CT | 3 | 3,05 | 0,61 | 25,78 |
| 4113570 | WMTS305M3U06PT | WU10PT | 3 | 3,05 | 0,61 | 25,78 |
| 4113571 | WMTS305M3U06PT | WU25PT | 3 | 3,05 | 0,61 | 25,78 |
| 4169560 | WMTS405M4U03PT | WP10CT | 4 | 4,05 | 0,31 | 25,53 |
| 4169561 | WMTS405M4U03PT | WP25CT | 4 | 4,05 | 0,31 | 25,53 |
| 4113577 | WMTS405M4U03PT | WU10PT | 4 | 4,05 | 0,31 | 25,53 |
| 4113578 | WMTS405M4U03PT | WU25PT | 4 | 4,05 | 0,31 | 25,53 |
| 4169562 | WMTS405M4U06PT | WP10CT | 4 | 4,05 | 0,61 | 25,53 |
| 4169563 | WMTS405M4U06PT | WP25CT | 4 | 4,05 | 0,61 | 25,53 |
| 4113579 | WMTS405M4U06PT | WU10PT | 4 | 4,05 | 0,61 | 25,53 |
| 4113580 | WMTS405M4U06PT | WU25PT | 4 | 4,05 | 0,61 | 25,53 |
| 4169564 | WMTS505M5U03PT | WP10CT | 5 | 5,05 | 0,30 | 28,76 |
| 4169565 | WMTS505M5U03PT | WP25CT | 5 | 5,05 | 0,30 | 28,76 |
| 4116148 | WMTS505M5U03PT | WU10PT | 5 | 5,05 | 0,30 | 28,76 |
| 4116149 | WMTS505M5U03PT | WU25PT | 5 | 5,05 | 0,30 | 28,76 |
| 4169566 | WMTS505M5U06PT | WP10CT | 5 | 5,05 | 0,61 | 28,76 |
| 4169567 | WMTS505M5U06PT | WP25CT | 5 | 5,05 | 0,61 | 28,76 |
| 4116150 | WMTS505M5U06PT | WU10PT | 5 | 5,05 | 0,61 | 28,76 |
| 4116151 | WMTS505M5U06PT | WU25PT | 5 | 5,05 | 0,61 | 28,76 |
| 4169568 | WMTS605M6U03PT | WP10CT | 6 | 6,05 | 0,30 | 28,76 |
| 4169569 | WMTS605M6U03PT | WP25CT | 6 | 6,05 | 0,30 | 28,76 |
| 4117253 | WMTS605M6U03PT | WU10PT | 6 | 6,05 | 0,30 | 28,76 |
| 4117254 | WMTS605M6U03PT | WU25PT | 6 | 6,05 | 0,30 | 28,76 |
| 4169570 | WMTS605M6U06PT | WP10CT | 6 | 6,05 | 0,59 | 28,76 |
| 4169571 | WMTS605M6U06PT | WP25CT | 6 | 6,05 | 0,59 | 28,76 |
| 4117255 | WMTS605M6U06PT | WU10PT | 6 | 6,05 | 0,59 | 28,76 |
| 4117256 | WMTS605M6U06PT | WU25PT | 6 | 6,05 | 0,59 | 28,76 |
