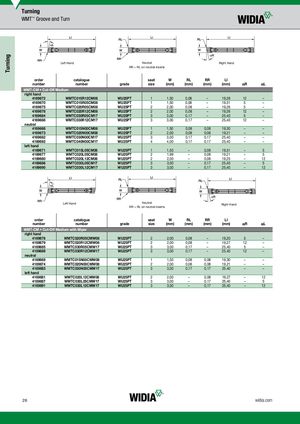

| Left Hand | Neutral | Right Hand | |
| RR = RL on neutral inserts |
| order | catalogue | seat | W | RL | RR | LI | |||
| number | number grade | size | (mm) | (mm) | (mm) | (mm) | αR | αL | |
| WMT-CM • Cut-Off Medium | |||||||||
| right hand | |||||||||
| 4169672 | WMTC015R12CM08 | WU25PT | 1 | 1,50 | 0,08 | – | 19,28 | 12 | – |
| 4169670 | WMTC015R05CM08 | WU25PT | 1 | 1,50 | 0,08 | – | 19,31 | 5 | – |
| 4169675 | WMTC020R05CM08 | WU25PT | 2 | 2,00 | 0,08 | – | 19,26 | 5 | – |
| 4169678 | WMTC020R12CM08 | WU25PT | 2 | 2,00 | 0,08 | – | 19,26 | 12 | – |
| 4169684 | WMTC030R05CM17 | WU25PT | 3 | 3,00 | 0,17 | – | 25,40 | 5 | – |
| 4169688 | WMTC030R12CM17 | WU25PT | 3 | 3,00 | 0,17 | – | 25,40 | 12 | – |
| neutral | |||||||||
| 4169668 | WMTC015N00CM08 | WU25PT | 1 | 1,50 | 0,08 | 0,08 | 19,30 | – | – |
| 4169673 | WMTC020N00CM08 | WU25PT | 2 | 2,00 | 0,08 | 0,08 | 19,21 | – | – |
| 4169682 | WMTC030N00CM17 | WU25PT | 3 | 3,00 | 0,17 | 0,17 | 25,40 | – | – |
| 4169692 | WMTC040N00CM17 | WU25PT | 4 | 4,00 | 0,17 | 0,17 | 25,40 | – | – |
| left hand | |||||||||
| 4169671 | WMTC015L05CM08 | WU25PT | 1 | 1,50 | – | 0,08 | 19,31 | – | 5 |
| 4169677 | WMTC020L05CM08 | WU25PT | 2 | 1,99 | – | 0,08 | 19,21 | – | 5 |
| 4169680 | WMTC020L12CM08 | WU25PT | 2 | 2,00 | – | 0,08 | 19,25 | – | 12 |
| 4169686 | WMTC030L05CM17 | WU25PT | 3 | 3,00 | – | 0,17 | 25,40 | – | 5 |
| 4169690 | WMTC030L12CM17 | WU25PT | 3 | 3,00 | – | 0,17 | 25,40 | – | 12 |
| Left Hand | Neutral | Right Hand | |
| RR = RL on neutral inserts |
| order | catalogue | seat | W | RL | RR | LI | ||||
| number | number grade | size | (mm) | (mm) | (mm) | (mm) | αR | αL | ||
| WMT-CM • Cut-Off Medium with Wiper | ||||||||||
| right hand | ||||||||||
| 4169676 | WMTC020R05CMW08 | WU25PT | 2 | 2,00 | 0,08 | – | 19,20 | 5 | – | |
| 4169679 | WMTC020R12CMW08 | WU25PT | 2 | 2,00 | 0,08 | – | 19,27 | 12 | – | |
| 4169685 | WMTC030R05CMW17 | WU25PT | 3 | 3,00 | 0,17 | – | 25,40 | 5 | – | |
| 4169689 | WMTC030R12CMW17 | WU25PT | 3 | 3,00 | 0,17 | – | 25,40 | 12 | – | |
| neutral | ||||||||||
| 4169669 | WMTC015N00CMW08 | WU25PT | 1 | 1,50 | 0,08 | 0,08 | 19,30 | – | – | |
| 4169674 | WMTC020N00CMW08 | WU25PT | 2 | 2,00 | 0,08 | 0,08 | 19,21 | – | – | |
| 4169683 | WMTC030N00CMW17 | WU25PT | 3 | 3,00 | 0,17 | 0,17 | 25,40 | – | – | |
| left hand | ||||||||||
| 4169681 | WMTC020L12CMW08 | WU25PT | 2 | 2,00 | – | 0,08 | 19,27 | – | 12 | |
| 4169687 | WMTC030L05CMW17 | WU25PT | 3 | 3,00 | – | 0,17 | 25,40 | – | 5 | |
| 4169691 | WMTC030L12CMW17 | WU25PT | 3 | 3,00 | – | 0,17 | 25,40 | – | 12 |
