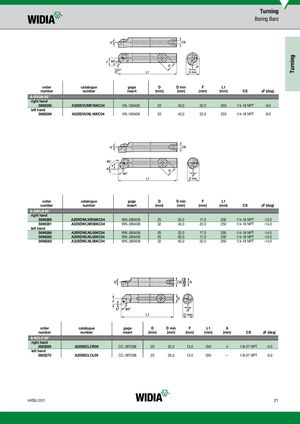

| order | catalogue | gage | D | D min | F | L1 | |||||
| number | number | insert | (mm) | (mm) | (mm) | (mm) | CS γF (deg) | ||||
| A-DVUN 93° | |||||||||||
| right hand | |||||||||||
| 5696263 | A32SDVUNR16KC04 | VN..160408 | 32 | 40,0 | 22,0 | 250 | 1/4-18 NPT | -9.0 | |||
| left hand | |||||||||||
| 5696264 | A32SDVUNL16KC04 | VN..160408 | 32 | 40,0 | 22,0 | 250 | 1/4-18 NPT | -9.0 |
