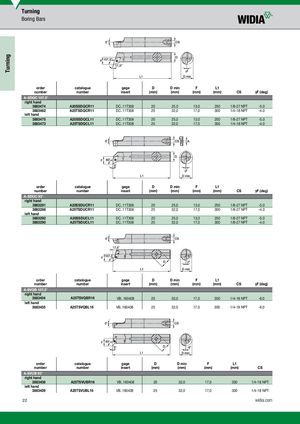

| order number | catalogue number | gage insert | D (mm) | D min (mm) | F (mm) | L1 (mm) | CS | γF (deg) |
| A-SDQC 107,5° | ||||||||
| right hand 3883474 | A20SSDQCR11 | DC..11T308 | 20 | 25,0 | 13,0 | 250 | 1/8-27 NPT | -5.0 |
| 3883462 left hand | A25TSDQCR11 | DC..11T308 | 25 | 32,0 | 17,0 | 300 | 1/4-18 NPT | -4.0 |
| 3883475 3883473 | A20SSDQCL11 A25TSDQCL11 | DC..11T308 DC..11T308 | 20 25 | 25,0 32,0 | 13,0 17,0 | 250 300 | 1/8-27 NPT 1/4-18 NPT | -5.0 -4.0 |
| order number | catalogue number | gage insert | D (mm) | D min (mm) | F (mm) | L1 (mm) | CS | γF (deg) |
| A-SDUC 93° | ||||||||
| right hand 3883291 | A20SSDUCR11 | DC..11T308 | 20 | 25,0 | 13,0 | 250 | 1/8-27 NPT | -5.0 |
| 3883288 left hand | A25TSDUCR11 | DC..11T308 | 25 | 32,0 | 17,0 | 300 | 1/8-27 NPT | -4.0 |
| 3883292 3883290 | A20SSDUCL11 A25TSDUCL11 | DC..11T308 DC..11T308 | 20 25 | 25,0 32,0 | 13,0 17,0 | 250 300 | 1/8-27 NPT 1/8-27 NPT | -5.0 -4.0 |
| order | catalogue | gage | D | D min | F | L1 | |||
| number | number | insert | (mm) | (mm) | (mm) | (mm) | CS γF (deg) | ||
| A-SVQB 107,5° | |||||||||
| right hand | |||||||||
| 3883434 | A25TSVQBR16 | VB..160408 | 25 | 32,0 | 17,0 | 300 | 1/4-18 NPT | -6.0 | |
| left hand | |||||||||
| 3883435 | A25TSVQBL16 | VB..160408 | 25 | 32,0 | 17,0 | 300 | 1/4-18 NPT | -6.0 |
| order | catalogue | gage | D | D min | F | L1 | ||
| number | number | insert | (mm) | (mm) | (mm) | (mm) | CS | |
| A-SVUB 93° | ||||||||
| right hand | ||||||||
| 3883438 | A25TSVUBR16 | VB..160408 | 25 | 32,0 | 17,0 | 300 | 1/4-18 NPT | |
| left hand | ||||||||
| 3883439 | A25TSVUBL16 | VB..160408 | 25 | 32,0 | 17,0 | 300 | 1/4-18 NPT |
