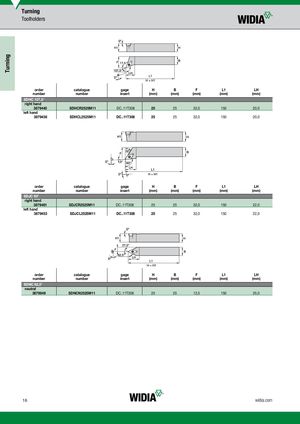

| order number | catalogue number | gage insert | H (mm) | B (mm) | F (mm) | L1 (mm) | LH (mm) |
| SDHC 107,5° | |||||||
| right hand | |||||||
| 3879440 | SDHCR2525M11 | DC..11T308 | 25 | 25 | 32,0 | 150 | 20,0 |
| left hand 3879438 | SDHCL2525M11 | DC..11T308 | 25 | 25 | 32,0 | 150 | 20,0 |
| order number | catalogue number | gage insert | H (mm) | B (mm) | F (mm) | L1 (mm) | LH (mm) |
| SDJC 93° | |||||||
| right hand | |||||||
| 3879461 | SDJCR2525M11 | DC..11T308 | 25 | 25 | 32,0 | 150 | 22,0 |
| left hand | |||||||
| 3879453 | SDJCL2525M11 | DC..11T308 | 25 | 25 | 32,0 | 150 | 22,0 |
| order number | catalogue number | gage insert | H (mm) | B (mm) | F (mm) | L1 (mm) | LH (mm) |
| SDNC 62,5° | |||||||
| neutral | |||||||
| 3879849 | SDNCN2525M11 | DC..11T308 | 25 | 25 | 12,5 | 150 | 25,0 |
