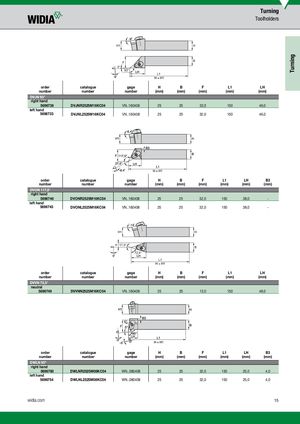

H1 H
F B 3° 93° L1
| order | catalogue | gage | H | B | F | L1 | LH | |||
| number | number | number | (mm) | (mm) | (mm) | (mm) | (mm) | |||
| DVJN 93° | ||||||||||
| right hand | ||||||||||
| 5696738 | DVJNR2525M16KC04 | VN..160408 | 25 | 25 | 32,0 | 150 | 46,0 | |||
| left hand | ||||||||||
| 5696733 | DVJNL2525M16KC04 | VN..160408 | 25 | 25 | 32,0 | 150 | 46,0 |
| order | catalogue | gage | H | B | F | L1 | LH | B3 | |||
| number | number | number | (mm) | (mm) | (mm) | (mm) | (mm) | (mm) | |||
| DVON 117,5° | |||||||||||
| right hand | |||||||||||
| 5696746 | DVONR2525M16KC04 | VN..160408 | 25 | 25 | 32,0 | 150 | 38,0 | - | |||
| left hand | |||||||||||
| 5696743 | DVONL2525M16KC04 | VN..160408 | 25 | 25 | 32,0 | 150 | 38,0 | - |
H1 H
F 17,5° B 72,5° L1
| order | catalogue | gage | H | B | F | L1 | LH | |||
| number | number | number | (mm) | (mm) | (mm) | (mm) | (mm) | |||
| DVVN 72,5° | ||||||||||
| neutral | ||||||||||
| 5696749 | DVVNN2525M16KC04 | VN..160408 | 25 | 25 | 12,0 | 150 | 48,0 |
| order | catalogue | gage | H | B | F | L1 | LH | B3 | |||
| number | number | number | (mm) | (mm) | (mm) | (mm) | (mm) | (mm) | |||
| DWLN 95º | |||||||||||
| right hand | |||||||||||
| 5696760 | DWLNR2525M08KC04 | WN..080408 | 25 | 25 | 32,0 | 150 | 25,0 | 4,0 | |||
| left hand | |||||||||||
| 5696754 | DWLNL2525M08KC04 | WN..080408 | 25 | 25 | 32,0 | 150 | 25,0 | 4,0 |
