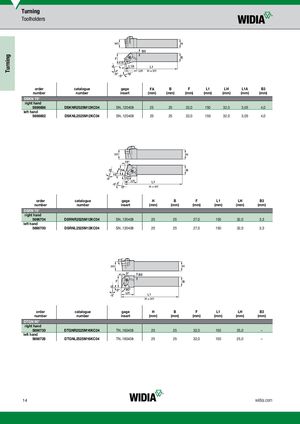

| order | catalogue | gage | FAH | B | F | L1 | LH | L1A | B3 | |||
| number | number | insert | (mm)(mm) | (mm) | (mm) | (mm) | (mm) | (mm) | (mm) | |||
| DSKN 75° | ||||||||||||
| right hand | ||||||||||||
| 5696686 | DSKNR2525M12KC04 | SN..120408 | 25 | 25 | 32,0 | 150 | 32,0 | 3,05 | 4,0 | |||
| left hand | ||||||||||||
| 5696682 | DSKNL2525M12KC04 | SN..120408 | 25 | 25 | 32,0 | 150 | 32,0 | 3,05 | 4,0 |
| order | catalogue | gage | H | B | F | L1 | LH | B3 | |||
| number | number | insert | (mm) | (mm) | (mm) | (mm) | (mm) | (mm) | |||
| DSRN 75° | |||||||||||
| right hand | |||||||||||
| 5696704 | DSRNR2525M12KC04 | SN..120408 | 25 | 25 | 27,0 | 150 | 32,0 | 3,3 | |||
| left hand | |||||||||||
| 5696700 | DSRNL2525M12KC04 | SN..120408 | 25 | 25 | 27,0 | 150 | 32,0 | 3,3 |
| order | catalogue | gage | H | B | F | L1 | LH | B3 | |||
| number | number | insert | (mm) | (mm) | (mm) | (mm) | (mm) | (mm) | |||
| DTGN 90° | |||||||||||
| right hand | |||||||||||
| 5696730 | DTGNR2525M16KC04 | TN..160408 | 25 | 25 | 32,0 | 150 | 25,0 | – | |||
| left hand | |||||||||||
| 5696728 | DTGNL2525M16KC04 | TN..160408 | 25 | 25 | 32,0 | 150 | 25,0 | – |
