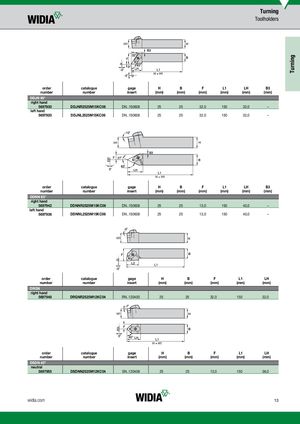

Каталог Widia all star 2019 - страница 15
Навигация
Каталог Widia all star 2020
Каталог Widia токарный инструмент 2017
Каталог Widia достижения 2018
Каталог Widia достижения 2017
Брошюра Widia техническое руководство
| order | catalogue | gage | H | B | F | L1 | LH | B3 | |||
| number | number | insert | (mm) | (mm) | (mm) | (mm) | (mm) | (mm) | |||
| DDJN 93° | |||||||||||
| right hand | |||||||||||
| 5697930 | DDJNR2525M15KC06 | DN..150608 | 25 | 25 | 32,0 | 150 | 32,0 | – | |||
| left hand | |||||||||||
| 5697920 | DDJNL2525M15KC06 | DN..150608 | 25 | 25 | 32,0 | 150 | 32,0 | – |
| order | catalogue | gage | H | B | F | L1 | LH | B3 | |||
| number | number | insert | (mm) | (mm) | (mm) | (mm) | (mm) | (mm) | |||
| DDNN 63° | |||||||||||
| right hand | |||||||||||
| 5697942 | DDNNR2525M15KC06 | DN..150608 | 25 | 25 | 13,0 | 150 | 40,0 | – | |||
| left hand | |||||||||||
| 5697936 | DDNNL2525M15KC06 | DN..150608 | 25 | 25 | 13,0 | 150 | 40,0 | – |
| order | catalogue | gage | H | B | F | L1 | LH | |||
| number | number | insert | (mm) | (mm) | (mm) | (mm) | (mm) | |||
| DRGN | ||||||||||
| right hand | ||||||||||
| 5697948 | DRGNR2525M12KC04 | RN..120400 | 25 | 25 | 32,0 | 150 | 32,0 |
| order | catalogue | gage | H | B | F | L1 | LH | |||
| number | number | insert | (mm) | (mm) | (mm) | (mm) | (mm) | |||
| DSDN 45º | ||||||||||
| neutral | ||||||||||
| 5697955 | DSDNN2525M12KC04 | SN..120408 | 25 | 25 | 12,0 | 150 | 36,0 |
