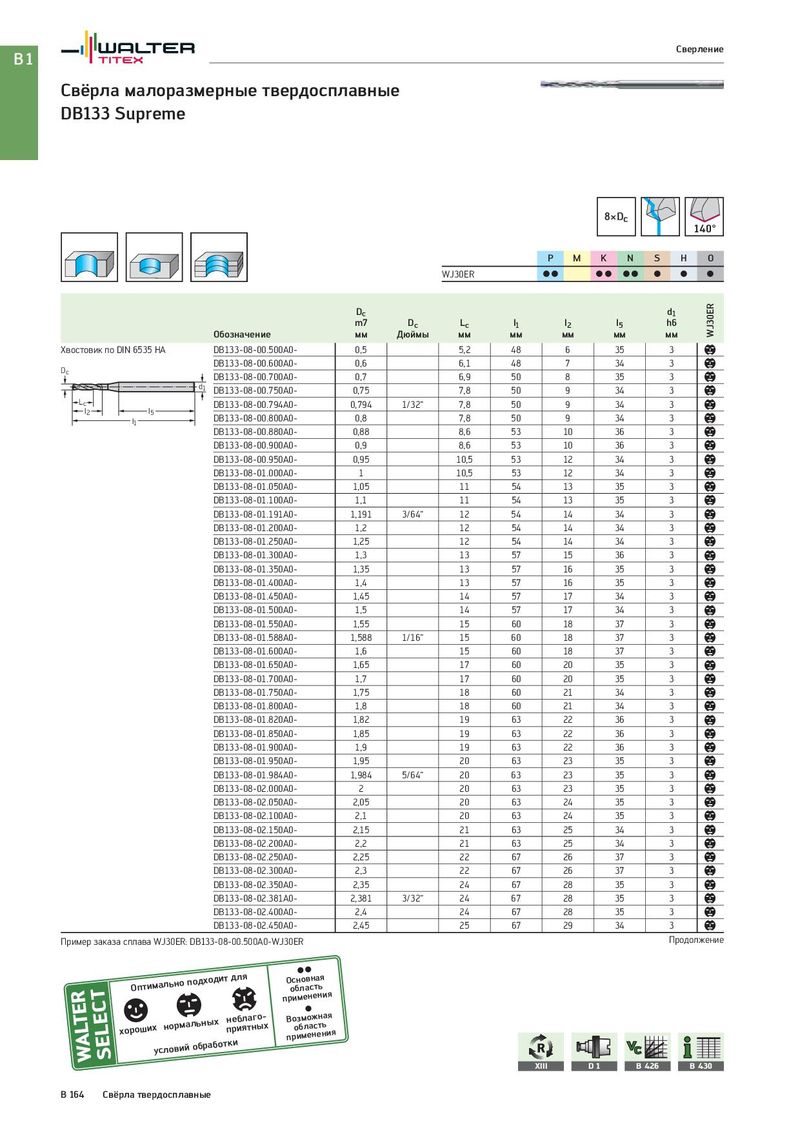

DB133 Supreme
| 8×Dc | 140° | |||||||
| P M | K N | S | O | |||||
| WJ30ER | C C | C C C C | C C | C | ||||
| Dc m7 | Dc | Lc | l1 | l2 | l5 | d1 h6 | J30ER | |
| Обозначение | мм | Дюймы | мм | мм | мм | мм | мм | W |
| Хвостовик по DIN 6535 HA DB133-08-00.500A0- | 0,5 | 5,2 | 48 | 6 | 35 | 3 | b | |
| DB133-08-00.600A0- | 0,6 | 6,1 | 48 | 7 | 34 | 3 | b | |
| Dc DB133-08-00.700A0- | 0,7 | 6,9 | 50 | 8 | 35 | 3 | b | |
| d1 DB133-08-00.750A0- | 0,75 | 7,8 | 50 | 9 | 34 | 3 | b | |
| Lc DB133-08-00.794A0- | 0,794 | 1/32“ | 7,8 | 50 | 9 | 34 | 3 | b |
| l2 l1 l5 DB133-08-00.800A0- | 0,8 | 7,8 | 50 | 9 | 34 | 3 | b | |
| DB133-08-00.880A0- | 0,88 | 8,6 | 53 | 10 | 36 | 3 | b | |
| DB133-08-00.900A0- | 0,9 | 8,6 | 53 | 10 | 36 | 3 | b | |
| DB133-08-00.950A0- | 0,95 | 10,5 | 53 | 12 | 34 | 3 | b | |
| DB133-08-01.000A0- | 1 | 10,5 | 53 | 12 | 34 | 3 | b | |
| DB133-08-01.050A0- | 1,05 | 11 | 54 | 13 | 35 | 3 | b | |
| DB133-08-01.100A0- | 1,1 | 11 | 54 | 13 | 35 | 3 | b | |
| DB133-08-01.191A0- | 1,191 | 3/64“ | 12 | 54 | 14 | 34 | 3 | b |
| DB133-08-01.200A0- | 1,2 | 12 | 54 | 14 | 34 | 3 | b | |
| DB133-08-01.250A0- | 1,25 | 12 | 54 | 14 | 34 | 3 | b | |
| DB133-08-01.300A0- | 1,3 | 13 | 57 | 15 | 36 | 3 | b | |
| DB133-08-01.350A0- | 1,35 | 13 | 57 | 16 | 35 | 3 | b | |
| DB133-08-01.400A0- | 1,4 | 13 | 57 | 16 | 35 | 3 | b | |
| DB133-08-01.450A0- | 1,45 | 14 | 57 | 17 | 34 | 3 | b | |
| DB133-08-01.500A0- | 1,5 | 14 | 57 | 17 | 34 | 3 | b | |
| DB133-08-01.550A0- | 1,55 | 15 | 60 | 18 | 37 | 3 | b | |
| DB133-08-01.588A0- | 1,588 | 1/16“ | 15 | 60 | 18 | 37 | 3 | b |
| DB133-08-01.600A0- | 1,6 | 15 | 60 | 18 | 37 | 3 | b | |
| DB133-08-01.650A0- | 1,65 | 17 | 60 | 20 | 35 | 3 | b | |
| DB133-08-01.700A0- | 1,7 | 17 | 60 | 20 | 35 | 3 | b | |
| DB133-08-01.750A0- | 1,75 | 18 | 60 | 21 | 34 | 3 | b | |
| DB133-08-01.800A0- | 1,8 | 18 | 60 | 21 | 34 | 3 | b | |
| DB133-08-01.820A0- | 1,82 | 19 | 63 | 22 | 36 | 3 | b | |
| DB133-08-01.850A0- | 1,85 | 19 | 63 | 22 | 36 | 3 | b | |
| DB133-08-01.900A0- | 1,9 | 19 | 63 | 22 | 36 | 3 | b | |
| DB133-08-01.950A0- | 1,95 | 20 | 63 | 23 | 35 | 3 | b | |
| DB133-08-01.984A0- | 1,984 | 5/64“ | 20 | 63 | 23 | 35 | 3 | b |
| DB133-08-02.000A0- | 2 | 20 | 63 | 23 | 35 | 3 | b | |
| DB133-08-02.050A0- | 2,05 | 20 | 63 | 24 | 35 | 3 | b | |
| DB133-08-02.100A0- | 2,1 | 20 | 63 | 24 | 35 | 3 | b | |
| DB133-08-02.150A0- | 2,15 | 21 | 63 | 25 | 34 | 3 | b | |
| DB133-08-02.200A0- | 2,2 | 21 | 63 | 25 | 34 | 3 | b | |
| DB133-08-02.250A0- | 2,25 | 22 | 67 | 26 | 37 | 3 | b | |
| DB133-08-02.300A0- | 2,3 | 22 | 67 | 26 | 37 | 3 | b | |
| DB133-08-02.350A0- | 2,35 | 24 | 67 | 28 | 35 | 3 | b | |
| DB133-08-02.381A0- | 2,381 | 3/32“ | 24 | 67 | 28 | 35 | 3 | b |
| DB133-08-02.400A0- | 2,4 | 24 | 67 | 28 | 35 | 3 | b | |
| DB133-08-02.450A0- | 2,45 | 25 | 67 | 29 | 34 | 3 | b | |
| Пример заказа сплава WJ30ER: DB133-08-00.500A0-WJ30ER | Про | должение |
