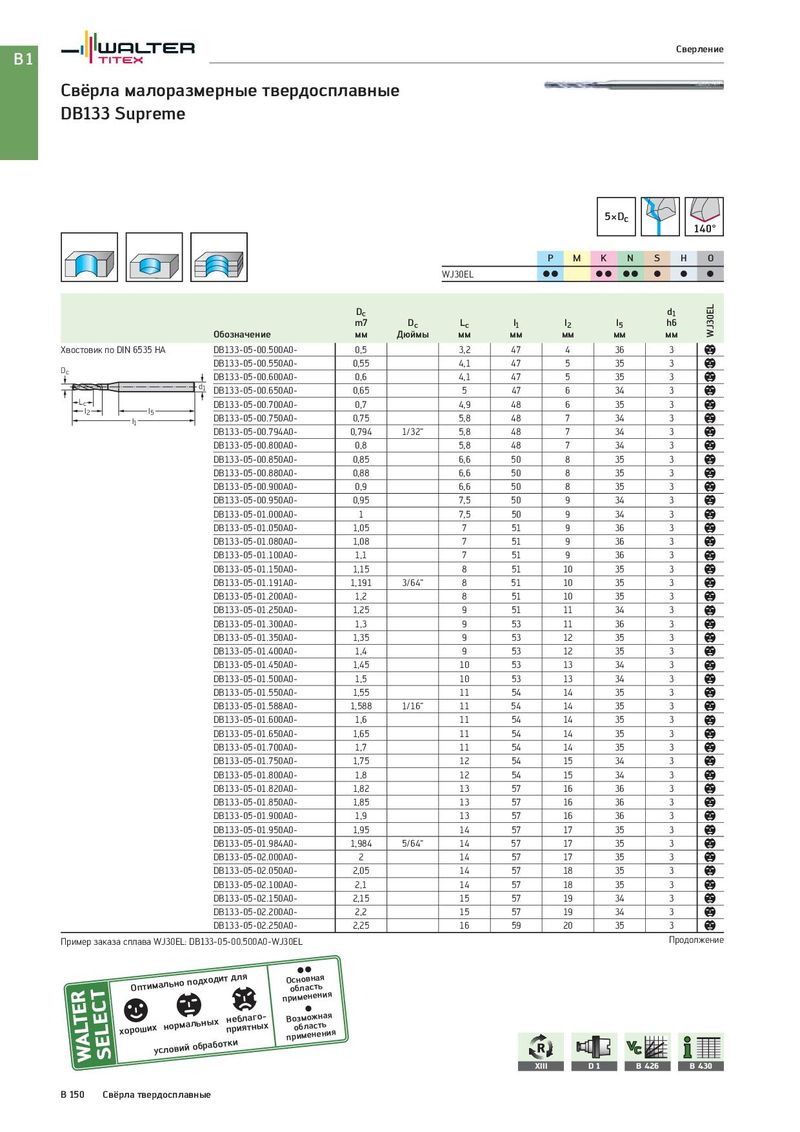

DB133 Supreme
| 5×Dc | 140° | |||||||
| P M | K N | S | O | |||||
| WJ30EL | C C | C C C C | C C | C | ||||
| Dc m7 | Dc | Lc | l1 | l2 | l5 | d1 h6 | J30EL | |
| Обозначение | мм | Дюймы | мм | мм | мм | мм | мм | W |
| Хвостовик по DIN 6535 HA DB133-05-00.500A0- | 0,5 | 3,2 | 47 | 4 | 36 | 3 | b | |
| DB133-05-00.550A0- | 0,55 | 4,1 | 47 | 5 | 35 | 3 | b | |
| Dc DB133-05-00.600A0- | 0,6 | 4,1 | 47 | 5 | 35 | 3 | b | |
| d1 DB133-05-00.650A0- | 0,65 | 5 | 47 | 6 | 34 | 3 | b | |
| Lc DB133-05-00.700A0- | 0,7 | 4,9 | 48 | 6 | 35 | 3 | b | |
| l2 l1 l5 DB133-05-00.750A0- | 0,75 | 5,8 | 48 | 7 | 34 | 3 | b | |
| DB133-05-00.794A0- | 0,794 | 1/32“ | 5,8 | 48 | 7 | 34 | 3 | b |
| DB133-05-00.800A0- | 0,8 | 5,8 | 48 | 7 | 34 | 3 | b | |
| DB133-05-00.850A0- | 0,85 | 6,6 | 50 | 8 | 35 | 3 | b | |
| DB133-05-00.880A0- | 0,88 | 6,6 | 50 | 8 | 35 | 3 | b | |
| DB133-05-00.900A0- | 0,9 | 6,6 | 50 | 8 | 35 | 3 | b | |
| DB133-05-00.950A0- | 0,95 | 7,5 | 50 | 9 | 34 | 3 | b | |
| DB133-05-01.000A0- | 1 | 7,5 | 50 | 9 | 34 | 3 | b | |
| DB133-05-01.050A0- | 1,05 | 7 | 51 | 9 | 36 | 3 | b | |
| DB133-05-01.080A0- | 1,08 | 7 | 51 | 9 | 36 | 3 | b | |
| DB133-05-01.100A0- | 1,1 | 7 | 51 | 9 | 36 | 3 | b | |
| DB133-05-01.150A0- | 1,15 | 8 | 51 | 10 | 35 | 3 | b | |
| DB133-05-01.191A0- | 1,191 | 3/64“ | 8 | 51 | 10 | 35 | 3 | b |
| DB133-05-01.200A0- | 1,2 | 8 | 51 | 10 | 35 | 3 | b | |
| DB133-05-01.250A0- | 1,25 | 9 | 51 | 11 | 34 | 3 | b | |
| DB133-05-01.300A0- | 1,3 | 9 | 53 | 11 | 36 | 3 | b | |
| DB133-05-01.350A0- | 1,35 | 9 | 53 | 12 | 35 | 3 | b | |
| DB133-05-01.400A0- | 1,4 | 9 | 53 | 12 | 35 | 3 | b | |
| DB133-05-01.450A0- | 1,45 | 10 | 53 | 13 | 34 | 3 | b | |
| DB133-05-01.500A0- | 1,5 | 10 | 53 | 13 | 34 | 3 | b | |
| DB133-05-01.550A0- | 1,55 | 11 | 54 | 14 | 35 | 3 | b | |
| DB133-05-01.588A0- | 1,588 | 1/16“ | 11 | 54 | 14 | 35 | 3 | b |
| DB133-05-01.600A0- | 1,6 | 11 | 54 | 14 | 35 | 3 | b | |
| DB133-05-01.650A0- | 1,65 | 11 | 54 | 14 | 35 | 3 | b | |
| DB133-05-01.700A0- | 1,7 | 11 | 54 | 14 | 35 | 3 | b | |
| DB133-05-01.750A0- | 1,75 | 12 | 54 | 15 | 34 | 3 | b | |
| DB133-05-01.800A0- | 1,8 | 12 | 54 | 15 | 34 | 3 | b | |
| DB133-05-01.820A0- | 1,82 | 13 | 57 | 16 | 36 | 3 | b | |
| DB133-05-01.850A0- | 1,85 | 13 | 57 | 16 | 36 | 3 | b | |
| DB133-05-01.900A0- | 1,9 | 13 | 57 | 16 | 36 | 3 | b | |
| DB133-05-01.950A0- | 1,95 | 14 | 57 | 17 | 35 | 3 | b | |
| DB133-05-01.984A0- | 1,984 | 5/64“ | 14 | 57 | 17 | 35 | 3 | b |
| DB133-05-02.000A0- | 2 | 14 | 57 | 17 | 35 | 3 | b | |
| DB133-05-02.050A0- | 2,05 | 14 | 57 | 18 | 35 | 3 | b | |
| DB133-05-02.100A0- | 2,1 | 14 | 57 | 18 | 35 | 3 | b | |
| DB133-05-02.150A0- | 2,15 | 15 | 57 | 19 | 34 | 3 | b | |
| DB133-05-02.200A0- | 2,2 | 15 | 57 | 19 | 34 | 3 | b | |
| DB133-05-02.250A0- | 2,25 | 16 | 59 | 20 | 35 | 3 | b | |
| Пример заказа сплава WJ30EL: DB133-05-00.500A0-WJ30EL | Про | должение |
