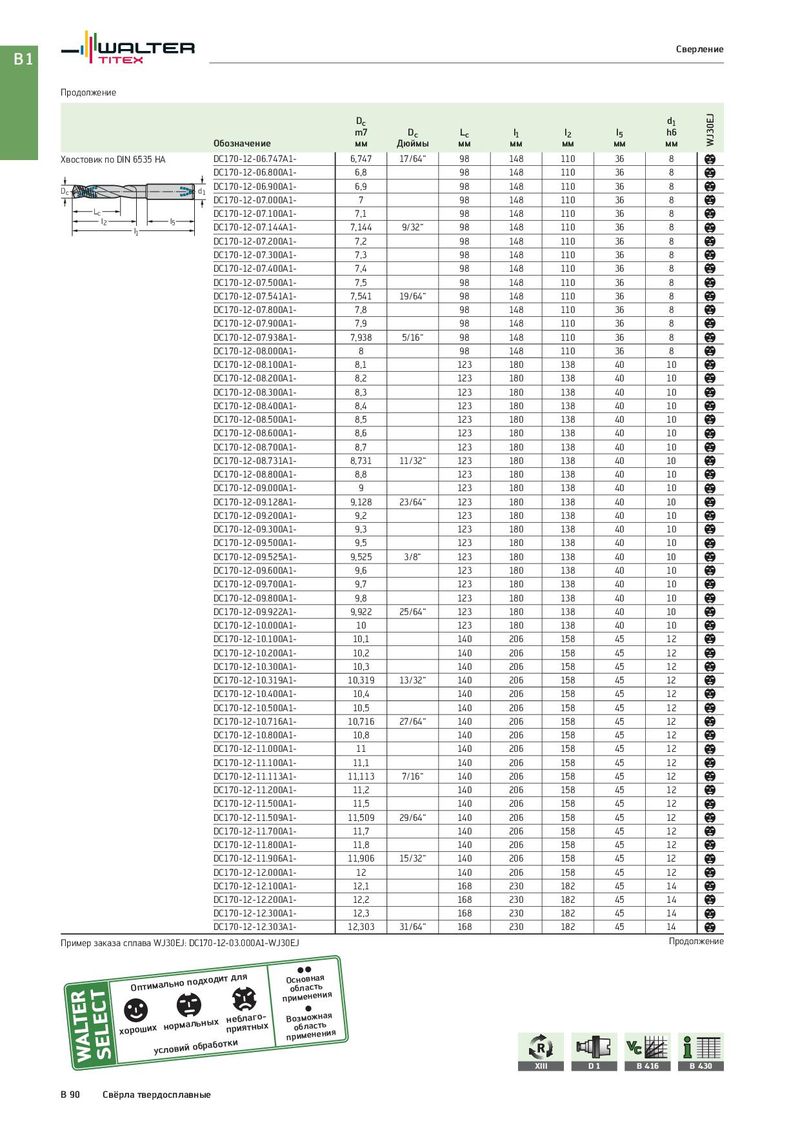

Общий каталог Walter 2017 - страница 604
Навигация
Каталог Walter обработка алюминия 2020
Каталог Walter новинки 2021.1
Каталог Walter новая продукция 2018
Каталог Walter новинки 2021.2
Брошюра Walter новинки 2022
D d c 1
| m7 | Dc | Lc | l1 | l2 | l5 | h6 | |
| Обозначение | мм | Дюймы | мм | мм | мм | мм | мм |
b
Хвостовик по DIN 6535 HA DC170-12-06.747A1- 6,747 17/64“ 98 148 110 36 8
b
| DC170-12-06.800A1- | 6,8 | 98 | 148 | 110 | 36 | 8 | |
| DC170-12-06.900A1- | 6,9 | 98 | 148 | 110 | 36 | 8 | b |
Dc d1 b
DC170-12-07.000A1- 7 98 148 110 36 8
L b
c DC170-12-07.100A1- 7,1 98 148 110 36 8
l2 l5 b
DC170-12-07.144A1- 7,144 9/32“ 98 148 110 36 8
l1 b
DC170-12-07.200A1- 7,2 98 148 110 36 8
b
DC170-12-07.300A1- 7,3 98 148 110 36 8
b
| DC170-12-07.400A1- | 7,4 | 98 | 148 | 110 | 36 | 8 | |
| DC170-12-07.500A1- | 7,5 | 98 | 148 | 110 | 36 | 8 | b |
b
DC170-12-07.541A1- 7,541 19/64“ 98 148 110 36 8
b
| DC170-12-07.800A1- | 7,8 | 98 | 148 | 110 | 36 | 8 | ||
| DC170-12-07.900A1- | 7,9 | 98 | 148 | 110 | 36 | 8 | b | |
| DC170-12-07.938A1- | 7,938 | 5/16“ | 98 | 148 | 110 | 36 | 8 | b |
b
| DC170-12-08.000A1- | 8 | 98 | 148 | 110 | 36 | 8 | |
| DC170-12-08.100A1- | 8,1 | 123 | 180 | 138 | 40 | 10 | b |
| DC170-12-08.200A1- | 8,2 | 123 | 180 | 138 | 40 | 10 | b |
b
| DC170-12-08.300A1- | 8,3 | 123 | 180 | 138 | 40 | 10 | |
| DC170-12-08.400A1- | 8,4 | 123 | 180 | 138 | 40 | 10 | b |
| DC170-12-08.500A1- | 8,5 | 123 | 180 | 138 | 40 | 10 | b |
b
DC170-12-08.600A1- 8,6 123 180 138 40 10
b
| DC170-12-08.700A1- | 8,7 | 123 | 180 | 138 | 40 | 10 | ||
| DC170-12-08.731A1- | 8,731 | 11/32“ | 123 | 180 | 138 | 40 | 10 | b |
b
DC170-12-08.800A1- 8,8 123 180 138 40 10
b
| DC170-12-09.000A1- | 9 | 123 | 180 | 138 | 40 | 10 | ||
| DC170-12-09.128A1- | 9,128 | 23/64“ | 123 | 180 | 138 | 40 | 10 | b |
| DC170-12-09.200A1- | 9,2 | 123 | 180 | 138 | 40 | 10 | b |
b
| DC170-12-09.300A1- | 9,3 | 123 | 180 | 138 | 40 | 10 | ||
| DC170-12-09.500A1- | 9,5 | 123 | 180 | 138 | 40 | 10 | b | |
| DC170-12-09.525A1- | 9,525 | 3/8“ | 123 | 180 | 138 | 40 | 10 | b |
b
| DC170-12-09.600A1- | 9,6 | 123 | 180 | 138 | 40 | 10 | |
| DC170-12-09.700A1- | 9,7 | 123 | 180 | 138 | 40 | 10 | b |
| DC170-12-09.800A1- | 9,8 | 123 | 180 | 138 | 40 | 10 | b |
b
DC170-12-09.922A1- 9,922 25/64“ 123 180 138 40 10
b
| DC170-12-10.000A1- | 10 | 123 | 180 | 138 | 40 | 10 | |
| DC170-12-10.100A1- | 10,1 | 140 | 206 | 158 | 45 | 12 | b |
b
DC170-12-10.200A1- 10,2 140 206 158 45 12
b
| DC170-12-10.300A1- | 10,3 | 140 | 206 | 158 | 45 | 12 | ||
| DC170-12-10.319A1- | 10,319 | 13/32“ | 140 | 206 | 158 | 45 | 12 | b |
| DC170-12-10.400A1- | 10,4 | 140 | 206 | 158 | 45 | 12 | b |
b
| DC170-12-10.500A1- | 10,5 | 140 | 206 | 158 | 45 | 12 | ||
| DC170-12-10.716A1- | 10,716 | 27/64“ | 140 | 206 | 158 | 45 | 12 | b |
| DC170-12-10.800A1- | 10,8 | 140 | 206 | 158 | 45 | 12 | b |
b
| DC170-12-11.000A1- | 11 | 140 | 206 | 158 | 45 | 12 | ||
| DC170-12-11.100A1- | 11,1 | 140 | 206 | 158 | 45 | 12 | b | |
| DC170-12-11.113A1- | 11,113 | 7/16“ | 140 | 206 | 158 | 45 | 12 | b |
b
DC170-12-11.200A1- 11,2 140 206 158 45 12
b
| DC170-12-11.500A1- | 11,5 | 140 | 206 | 158 | 45 | 12 | ||
| DC170-12-11.509A1- | 11,509 | 29/64“ | 140 | 206 | 158 | 45 | 12 | b |
b
DC170-12-11.700A1- 11,7 140 206 158 45 12
b
| DC170-12-11.800A1- | 11,8 | 140 | 206 | 158 | 45 | 12 | ||
| DC170-12-11.906A1- | 11,906 | 15/32“ | 140 | 206 | 158 | 45 | 12 | b |
| DC170-12-12.000A1- | 12 | 140 | 206 | 158 | 45 | 12 | b |
b
| DC170-12-12.100A1- | 12,1 | 168 | 230 | 182 | 45 | 14 | ||
| DC170-12-12.200A1- | 12,2 | 168 | 230 | 182 | 45 | 14 | b | |
| DC170-12-12.300A1- | 12,3 | 168 | 230 | 182 | 45 | 14 | b | |
| DC170-12-12.303A1- | 12,303 | 31/64“ | 168 | 230 | 182 | 45 | 14 | b |
Пример заказа сплава WJ30EJ: DC170-12-03.000A1-WJ30EJ Продолжение
Основная Оптимально подходит для область применения неблаго- Возможная
