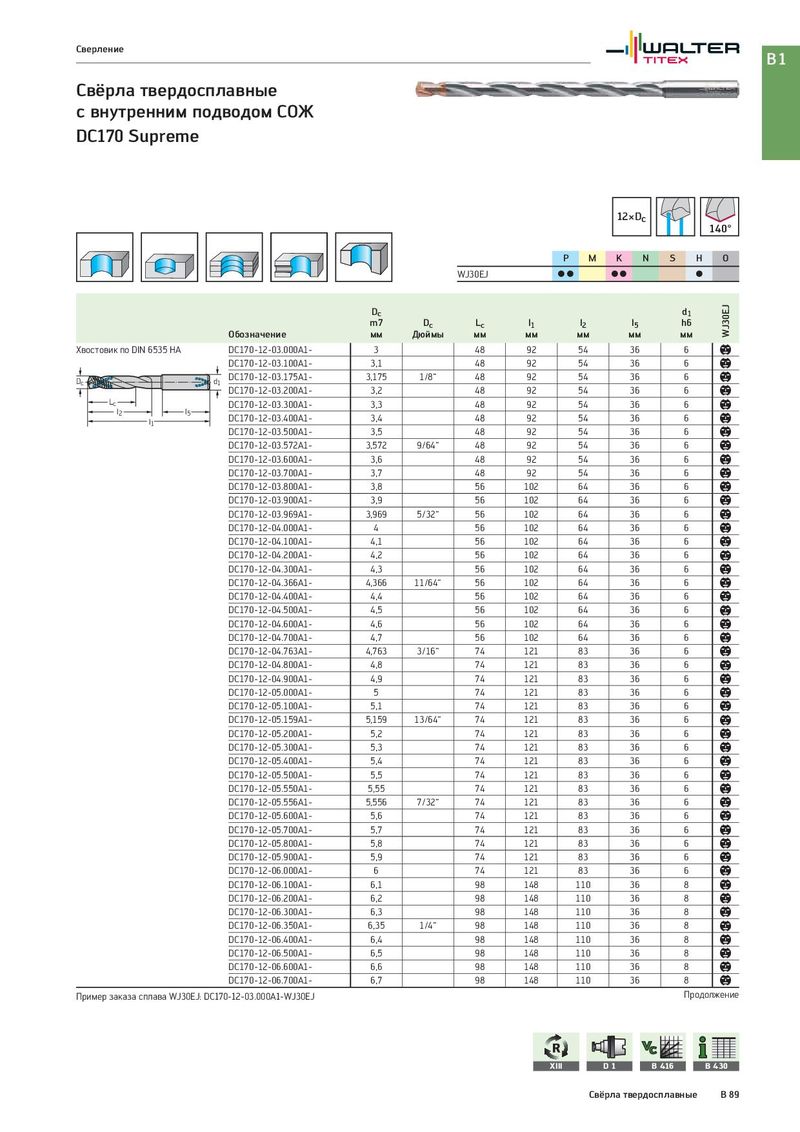

Общий каталог Walter 2017 - страница 603
Навигация
Каталог Walter обработка алюминия 2020
Каталог Walter новинки 2021.1
Каталог Walter новая продукция 2018
Каталог Walter новинки 2021.2
Брошюра Walter новинки 2022
с внутренним подводом СОЖ
DC170 Supreme
12×Dc
140°
| P | M | K | N | S | H | O | |
| WJ30EJ | C C | C C | C |
Dc d1
| m7 | D | L | l | l | l | h6 | ||||
| c | c | 1 | 2 | 5 | ||||||
| Обозначение | мм | Дюймы | мм | мм | мм | мм | мм | |||
| Хвостовик по DIN 6535 HA | DC170-12-03.000A1- | 3 | 48 | 92 | 54 | 36 | 6 | b | ||
| DC170-12-03.100A1- | 3,1 | 48 | 92 | 54 | 36 | 6 | b |
b
DC170-12-03.175A1- 3,175 1/8“ 48 92 54 36 6
Dc d1 b
| DC170-12-03.200A1- | 3,2 | 48 | 92 | 54 | 36 | 6 | ||
| L | DC170-12-03.300A1- | 3,3 | 48 | 92 | 54 | 36 | 6 | b |
c
l2 l5 b
DC170-12-03.400A1- 3,4 48 92 54 36 6
l1 b
| DC170-12-03.500A1- | 3,5 | 48 | 92 | 54 | 36 | 6 | ||
| DC170-12-03.572A1- | 3,572 | 9/64“ | 48 | 92 | 54 | 36 | 6 | b |
b
DC170-12-03.600A1- 3,6 48 92 54 36 6
b
| DC170-12-03.700A1- | 3,7 | 48 | 92 | 54 | 36 | 6 | |
| DC170-12-03.800A1- | 3,8 | 56 | 102 | 64 | 36 | 6 | b |
| DC170-12-03.900A1- | 3,9 | 56 | 102 | 64 | 36 | 6 | b |
b
| DC170-12-03.969A1- | 3,969 | 5/32“ | 56 | 102 | 64 | 36 | 6 | |
| DC170-12-04.000A1- | 4 | 56 | 102 | 64 | 36 | 6 | b | |
| DC170-12-04.100A1- | 4,1 | 56 | 102 | 64 | 36 | 6 | b |
b
DC170-12-04.200A1- 4,2 56 102 64 36 6
b
| DC170-12-04.300A1- | 4,3 | 56 | 102 | 64 | 36 | 6 | ||
| DC170-12-04.366A1- | 4,366 | 11/64“ | 56 | 102 | 64 | 36 | 6 | b |
b
DC170-12-04.400A1- 4,4 56 102 64 36 6
b
| DC170-12-04.500A1- | 4,5 | 56 | 102 | 64 | 36 | 6 | |
| DC170-12-04.600A1- | 4,6 | 56 | 102 | 64 | 36 | 6 | b |
b
DC170-12-04.700A1- 4,7 56 102 64 36 6
b
| DC170-12-04.763A1- | 4,763 | 3/16“ | 74 | 121 | 83 | 36 | 6 | |
| DC170-12-04.800A1- | 4,8 | 74 | 121 | 83 | 36 | 6 | b | |
| DC170-12-04.900A1- | 4,9 | 74 | 121 | 83 | 36 | 6 | b |
b
| DC170-12-05.000A1- | 5 | 74 | 121 | 83 | 36 | 6 | ||
| DC170-12-05.100A1- | 5,1 | 74 | 121 | 83 | 36 | 6 | b | |
| DC170-12-05.159A1- | 5,159 | 13/64“ | 74 | 121 | 83 | 36 | 6 | b |
b
DC170-12-05.200A1- 5,2 74 121 83 36 6
b
| DC170-12-05.300A1- | 5,3 | 74 | 121 | 83 | 36 | 6 | |
| DC170-12-05.400A1- | 5,4 | 74 | 121 | 83 | 36 | 6 | b |
b
DC170-12-05.500A1- 5,5 74 121 83 36 6
b
| DC170-12-05.550A1- | 5,55 | 74 | 121 | 83 | 36 | 6 | ||
| DC170-12-05.556A1- | 5,556 | 7/32“ | 74 | 121 | 83 | 36 | 6 | b |
b
DC170-12-05.600A1- 5,6 74 121 83 36 6
b
| DC170-12-05.700A1- | 5,7 | 74 | 121 | 83 | 36 | 6 | |
| DC170-12-05.800A1- | 5,8 | 74 | 121 | 83 | 36 | 6 | b |
| DC170-12-05.900A1- | 5,9 | 74 | 121 | 83 | 36 | 6 | b |
b
| DC170-12-06.000A1- | 6 | 74 | 121 | 83 | 36 | 6 | |
| DC170-12-06.100A1- | 6,1 | 98 | 148 | 110 | 36 | 8 | b |
| DC170-12-06.200A1- | 6,2 | 98 | 148 | 110 | 36 | 8 | b |
b
DC170-12-06.300A1- 6,3 98 148 110 36 8
b
| DC170-12-06.350A1- | 6,35 | 1/4“ | 98 | 148 | 110 | 36 | 8 | |
| DC170-12-06.400A1- | 6,4 | 98 | 148 | 110 | 36 | 8 | b |
b
DC170-12-06.500A1- 6,5 98 148 110 36 8
b
| DC170-12-06.600A1- | 6,6 | 98 | 148 | 110 | 36 | 8 | |
| DC170-12-06.700A1- | 6,7 | 98 | 148 | 110 | 36 | 8 | b |
Пример заказа сплава WJ30EJ: DC170-12-03.000A1-WJ30EJ Продолжение
