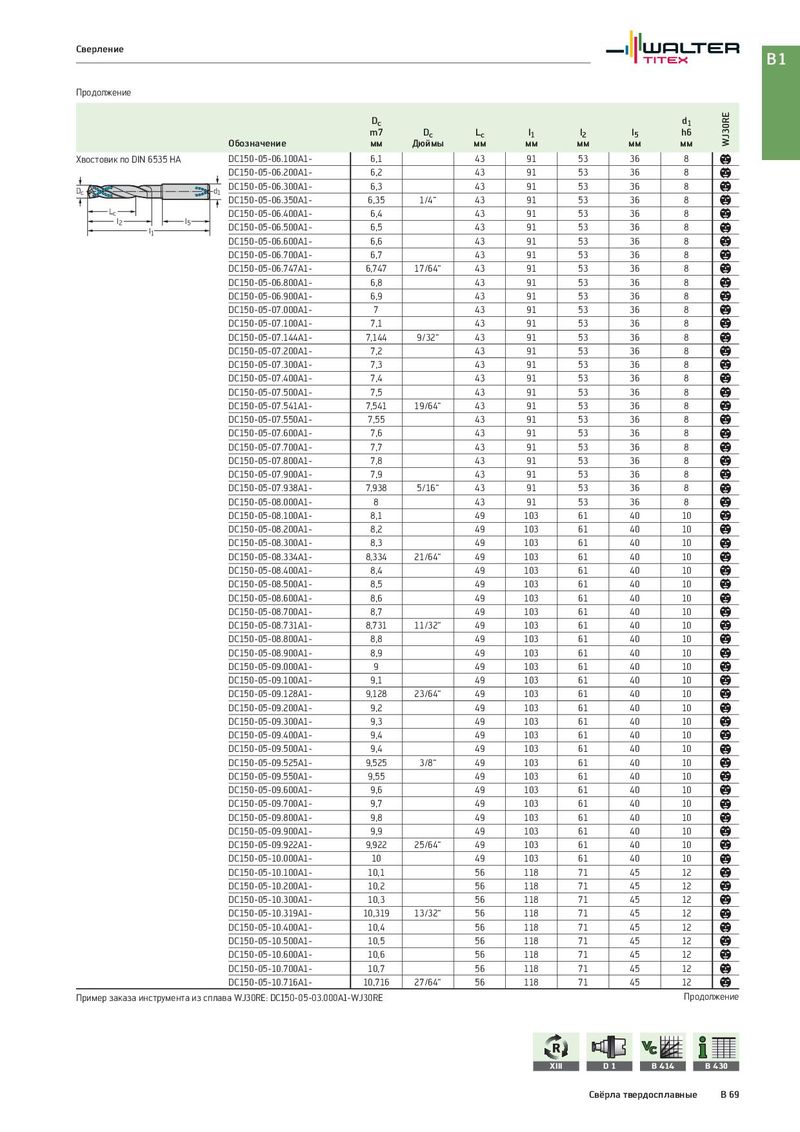

Общий каталог Walter 2017 - страница 583
Навигация
Каталог Walter обработка алюминия 2020
Каталог Walter новинки 2021.1
Каталог Walter новая продукция 2018
Каталог Walter новинки 2021.2
Брошюра Walter новинки 2022
D d c 1
| m7 | Dc | Lc | l1 | l2 | l5 | h6 | |
| Обозначение | мм | Дюймы | мм | мм | мм | мм | мм |
b
Хвостовик по DIN 6535 HA DC150-05-06.100A1- 6,1 43 91 53 36 8
b
| DC150-05-06.200A1- | 6,2 | 43 | 91 | 53 | 36 | 8 | |
| DC150-05-06.300A1- | 6,3 | 43 | 91 | 53 | 36 | 8 | b |
Dc d1 b
DC150-05-06.350A1- 6,35 1/4“ 43 91 53 36 8
L b
c DC150-05-06.400A1- 6,4 43 91 53 36 8
l2 l5 b
DC150-05-06.500A1- 6,5 43 91 53 36 8
l1 b
DC150-05-06.600A1- 6,6 43 91 53 36 8
b
DC150-05-06.700A1- 6,7 43 91 53 36 8
b
| DC150-05-06.747A1- | 6,747 | 17/64“ | 43 | 91 | 53 | 36 | 8 | |
| DC150-05-06.800A1- | 6,8 | 43 | 91 | 53 | 36 | 8 | b |
b
DC150-05-06.900A1- 6,9 43 91 53 36 8
b
| DC150-05-07.000A1- | 7 | 43 | 91 | 53 | 36 | 8 | ||
| DC150-05-07.100A1- | 7,1 | 43 | 91 | 53 | 36 | 8 | b | |
| DC150-05-07.144A1- | 7,144 | 9/32“ | 43 | 91 | 53 | 36 | 8 | b |
b
| DC150-05-07.200A1- | 7,2 | 43 | 91 | 53 | 36 | 8 | |
| DC150-05-07.300A1- | 7,3 | 43 | 91 | 53 | 36 | 8 | b |
| DC150-05-07.400A1- | 7,4 | 43 | 91 | 53 | 36 | 8 | b |
b
| DC150-05-07.500A1- | 7,5 | 43 | 91 | 53 | 36 | 8 | ||
| DC150-05-07.541A1- | 7,541 | 19/64“ | 43 | 91 | 53 | 36 | 8 | b |
| DC150-05-07.550A1- | 7,55 | 43 | 91 | 53 | 36 | 8 | b |
b
DC150-05-07.600A1- 7,6 43 91 53 36 8
b
| DC150-05-07.700A1- | 7,7 | 43 | 91 | 53 | 36 | 8 | |
| DC150-05-07.800A1- | 7,8 | 43 | 91 | 53 | 36 | 8 | b |
b
DC150-05-07.900A1- 7,9 43 91 53 36 8
b
| DC150-05-07.938A1- | 7,938 | 5/16“ | 43 | 91 | 53 | 36 | 8 | |
| DC150-05-08.000A1- | 8 | 43 | 91 | 53 | 36 | 8 | b | |
| DC150-05-08.100A1- | 8,1 | 49 | 103 | 61 | 40 | 10 | b |
b
| DC150-05-08.200A1- | 8,2 | 49 | 103 | 61 | 40 | 10 | ||
| DC150-05-08.300A1- | 8,3 | 49 | 103 | 61 | 40 | 10 | b | |
| DC150-05-08.334A1- | 8,334 | 21/64“ | 49 | 103 | 61 | 40 | 10 | b |
b
| DC150-05-08.400A1- | 8,4 | 49 | 103 | 61 | 40 | 10 | |
| DC150-05-08.500A1- | 8,5 | 49 | 103 | 61 | 40 | 10 | b |
| DC150-05-08.600A1- | 8,6 | 49 | 103 | 61 | 40 | 10 | b |
b
DC150-05-08.700A1- 8,7 49 103 61 40 10
b
| DC150-05-08.731A1- | 8,731 | 11/32“ | 49 | 103 | 61 | 40 | 10 | |
| DC150-05-08.800A1- | 8,8 | 49 | 103 | 61 | 40 | 10 | b |
b
DC150-05-08.900A1- 8,9 49 103 61 40 10
b
| DC150-05-09.000A1- | 9 | 49 | 103 | 61 | 40 | 10 | ||
| DC150-05-09.100A1- | 9,1 | 49 | 103 | 61 | 40 | 10 | b | |
| DC150-05-09.128A1- | 9,128 | 23/64“ | 49 | 103 | 61 | 40 | 10 | b |
b
| DC150-05-09.200A1- | 9,2 | 49 | 103 | 61 | 40 | 10 | |
| DC150-05-09.300A1- | 9,3 | 49 | 103 | 61 | 40 | 10 | b |
| DC150-05-09.400A1- | 9,4 | 49 | 103 | 61 | 40 | 10 | b |
b
| DC150-05-09.500A1- | 9,4 | 49 | 103 | 61 | 40 | 10 | ||
| DC150-05-09.525A1- | 9,525 | 3/8“ | 49 | 103 | 61 | 40 | 10 | b |
| DC150-05-09.550A1- | 9,55 | 49 | 103 | 61 | 40 | 10 | b |
b
DC150-05-09.600A1- 9,6 49 103 61 40 10
b
| DC150-05-09.700A1- | 9,7 | 49 | 103 | 61 | 40 | 10 | |
| DC150-05-09.800A1- | 9,8 | 49 | 103 | 61 | 40 | 10 | b |
b
DC150-05-09.900A1- 9,9 49 103 61 40 10
b
| DC150-05-09.922A1- | 9,922 | 25/64“ | 49 | 103 | 61 | 40 | 10 | |
| DC150-05-10.000A1- | 10 | 49 | 103 | 61 | 40 | 10 | b | |
| DC150-05-10.100A1- | 10,1 | 56 | 118 | 71 | 45 | 12 | b |
b
| DC150-05-10.200A1- | 10,2 | 56 | 118 | 71 | 45 | 12 | ||
| DC150-05-10.300A1- | 10,3 | 56 | 118 | 71 | 45 | 12 | b | |
| DC150-05-10.319A1- | 10,319 | 13/32“ | 56 | 118 | 71 | 45 | 12 | b |
b
DC150-05-10.400A1- 10,4 56 118 71 45 12
b
| DC150-05-10.500A1- | 10,5 | 56 | 118 | 71 | 45 | 12 | |
| DC150-05-10.600A1- | 10,6 | 56 | 118 | 71 | 45 | 12 | b |
b
DC150-05-10.700A1- 10,7 56 118 71 45 12
b
DC150-05-10.716A1- 10,716 27/64“ 56 118 71 45 12
Пример заказа инструмента из сплава WJ30RE: DC150-05-03.000A1-WJ30RE Продолжение
