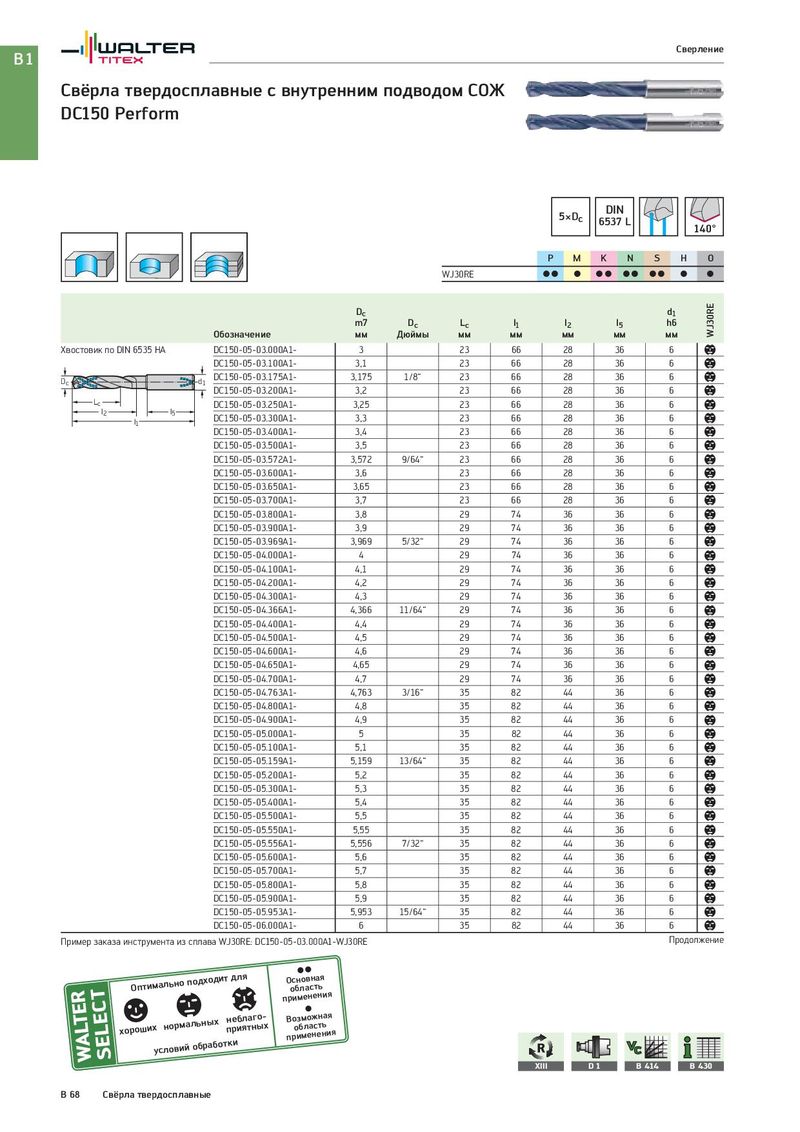

DC150 Perform
DIN
5×Dc
6537 L
140°
| P | M | K | N | S | H | O | |
| WJ30RE | C C | C | C C C C C C | C | C |
Dc d1
| m7 | D | L | l | l | l | h6 | ||||
| c | c | 1 | 2 | 5 | ||||||
| Обозначение | мм | Дюймы | мм | мм | мм | мм | мм | |||
| Хвостовик по DIN 6535 HA | DC150-05-03.000A1- | 3 | 23 | 66 | 28 | 36 | 6 | b | ||
| DC150-05-03.100A1- | 3,1 | 23 | 66 | 28 | 36 | 6 | b |
b
DC150-05-03.175A1- 3,175 1/8“ 23 66 28 36 6
Dc d1 b
| DC150-05-03.200A1- | 3,2 | 23 | 66 | 28 | 36 | 6 | ||
| L | DC150-05-03.250A1- | 3,25 | 23 | 66 | 28 | 36 | 6 | b |
c
l2 l5 b
DC150-05-03.300A1- 3,3 23 66 28 36 6
l1 b
| DC150-05-03.400A1- | 3,4 | 23 | 66 | 28 | 36 | 6 | |
| DC150-05-03.500A1- | 3,5 | 23 | 66 | 28 | 36 | 6 | b |
b
DC150-05-03.572A1- 3,572 9/64“ 23 66 28 36 6
b
| DC150-05-03.600A1- | 3,6 | 23 | 66 | 28 | 36 | 6 | |
| DC150-05-03.650A1- | 3,65 | 23 | 66 | 28 | 36 | 6 | b |
| DC150-05-03.700A1- | 3,7 | 23 | 66 | 28 | 36 | 6 | b |
b
| DC150-05-03.800A1- | 3,8 | 29 | 74 | 36 | 36 | 6 | ||
| DC150-05-03.900A1- | 3,9 | 29 | 74 | 36 | 36 | 6 | b | |
| DC150-05-03.969A1- | 3,969 | 5/32“ | 29 | 74 | 36 | 36 | 6 | b |
b
DC150-05-04.000A1- 4 29 74 36 36 6
b
| DC150-05-04.100A1- | 4,1 | 29 | 74 | 36 | 36 | 6 | |
| DC150-05-04.200A1- | 4,2 | 29 | 74 | 36 | 36 | 6 | b |
b
DC150-05-04.300A1- 4,3 29 74 36 36 6
b
| DC150-05-04.366A1- | 4,366 | 11/64“ | 29 | 74 | 36 | 36 | 6 | |
| DC150-05-04.400A1- | 4,4 | 29 | 74 | 36 | 36 | 6 | b |
b
DC150-05-04.500A1- 4,5 29 74 36 36 6
b
| DC150-05-04.600A1- | 4,6 | 29 | 74 | 36 | 36 | 6 | |
| DC150-05-04.650A1- | 4,65 | 29 | 74 | 36 | 36 | 6 | b |
| DC150-05-04.700A1- | 4,7 | 29 | 74 | 36 | 36 | 6 | b |
b
| DC150-05-04.763A1- | 4,763 | 3/16“ | 35 | 82 | 44 | 36 | 6 | |
| DC150-05-04.800A1- | 4,8 | 35 | 82 | 44 | 36 | 6 | b | |
| DC150-05-04.900A1- | 4,9 | 35 | 82 | 44 | 36 | 6 | b |
b
DC150-05-05.000A1- 5 35 82 44 36 6
b
| DC150-05-05.100A1- | 5,1 | 35 | 82 | 44 | 36 | 6 | ||
| DC150-05-05.159A1- | 5,159 | 13/64“ | 35 | 82 | 44 | 36 | 6 | b |
b
DC150-05-05.200A1- 5,2 35 82 44 36 6
b
| DC150-05-05.300A1- | 5,3 | 35 | 82 | 44 | 36 | 6 | |
| DC150-05-05.400A1- | 5,4 | 35 | 82 | 44 | 36 | 6 | b |
b
DC150-05-05.500A1- 5,5 35 82 44 36 6
b
| DC150-05-05.550A1- | 5,55 | 35 | 82 | 44 | 36 | 6 | ||
| DC150-05-05.556A1- | 5,556 | 7/32“ | 35 | 82 | 44 | 36 | 6 | b |
| DC150-05-05.600A1- | 5,6 | 35 | 82 | 44 | 36 | 6 | b |
b
| DC150-05-05.700A1- | 5,7 | 35 | 82 | 44 | 36 | 6 | |
| DC150-05-05.800A1- | 5,8 | 35 | 82 | 44 | 36 | 6 | b |
| DC150-05-05.900A1- | 5,9 | 35 | 82 | 44 | 36 | 6 | b |
b
DC150-05-05.953A1- 5,953 15/64“ 35 82 44 36 6
b
DC150-05-06.000A1- 6 35 82 44 36 6
Пример заказа инструмента из сплава WJ30RE: DC150-05-03.000A1-WJ30RE Продолжение
