Каталог Tungaloy зубофрезерование - страница 77

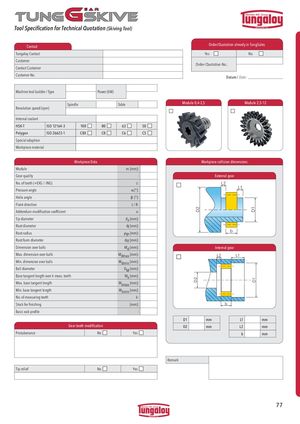

Tool Specification for Technical Quotation (Skiving Tool) Order/Quotation already in TungSales Contact Tungaloy Contact Yes No Customer Order-/Quotation-No.: Contact Customer Customer No. Datum / Date: Machine tool builder / Type Power (kW) Spindle Table Module 0,4-2,5 Module 2,5-12 Revolution speed (rpm) Internal coolant HSK-T ISO 12164-3 100 80 63 50 Polygon ISO 26623-1 C8X C8 C6 C5 Special adaption Workpiece material Workpiece Data Workpiece collision dimensions Module m [mm]: Gear quality : External gear No. of teeth (+EXG / -ING) z: L2 L1 Pressure angle a [°]: Helix angle b [°]: Flank direction L / R: D2 D1 Addendum modification coefficient x: Tip diameter da [mm]: Root diameter df [mm]: Root radius rfP [mm]: b Root form diameter dFf [mm]: Dimension over balls Md [mm]: Internal gear Max. dimension over balls Mdmax [mm]: L2 L1 Min. dimension over balls Mdmin [mm]: Ball diameter DM [mm]: Base tangent length over k meas. teeth Wk [mm]: D2 D1 Max. base tangent length Wkmax [mm]: Min. base tangent length Wkmin [mm]: No. of measuring teeth k: Stock for finishing [mm]: b Basic rack profile : D1 mm L1 mm Gear tooth modification D2 mm L2 mm Protuberance No Yes b mm Remark Tip relief No Yes 77
