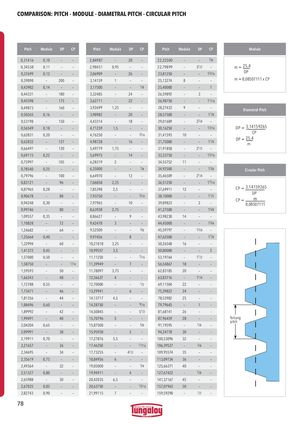

COMPARISON: PITCH - MODULE - DIAMETRAL PITCH - CIRCULAR PITCH
| Pitch | Module | DP | CP | Pitch | Module | DP | CP | Pitch | Module | DP | CP |
| 0,31416 | 0,10 | – | – | 2,84987 | – | 28 | – | 22,22500 | – | – | 7/8 |
| 0,34558 | 0,11 | – | – | 2,98451 | 0,95 | – | – | 22,79899 | – | 31/2 | – |
| 0,37699 | 0,12 | – | – | 3,06909 | – | 26 | – | 23,81250 | – | – | 15/16 |
| 0,39898 | – | 200 | – | 3,14159 | 1 | – | – | 25,13274 | 8 | – | – |
| 0,43982 | 0,14 | – | – | 3,17500 | – | – | 1/8 | 25,40000 | – | – | 1 |
| 0,44331 | – | 180 | – | 3,32485 | – | 24 | – | 26,59892 | – | 3 | – |
| 0,45598 | – | 175 | – | 3,62711 | – | 22 | – | 26,98750 | – | – | 11/16 |
| 0,49873 | – | 160 | – | 3,92699 | 1,25 | – | – | 28,27433 | 9 | – | – |
| 0,50265 | 0,16 | – | – | 3,98982 | – | 20 | – | 28,57500 | – | – | 11/8 |
| 0,53198 | – | 150 | – | 4,43314 | – | 18 | – | 29,01689 | – | 23/4 | – |
| 0,56549 | 0,18 | – | – | 4,71239 | 1,5 | – | – | 30,16250 | – | – | 13/16 |
| 0,62831 | 0,20 | – | – | 4,76250 | – | – | 3/16 | 31,41593 | 10 | – | – |
| 0,62832 | – | 127 | – | 4,98728 | – | 16 | – | 31,75000 | – | – | 11/4 |
| 0,66497 | – | 120 | – | 5,49779 | 1,75 | – | – | 31,91858 | – | 21/2 | – |
| 0,69115 | 0,22 | – | – | 5,69975 | – | 14 | – | 33,33750 | – | – | 15/16 |
| 0,75997 | – | 105 | – | 6,28319 | 2 | – | – | 34,55752 | 11 | – | – |
| 0,78540 | 0,25 | – | – | 6,35000 | – | – | 1/4 | 34,92500 | – | – | 13/8 |
| 0,79796 | – | 100 | – | 6,64970 | – | 12 | – | 35,46509 | – | 21/4 | – |
| 0,83121 | – | 96 | – | 7,06858 | 2,25 | – | – | 36,51250 | – | – | 17/16 |
| 0,87965 | 0,28 | – | – | 7,85398 | 2,5 | – | – | 37,69911 | 12 | – | – |
| 0,90678 | – | 88 | – | 7,93750 | – | – | 5/16 | 38,10000 | – | – | 11/2 |
| 0,94248 | 0,30 | – | – | 7,97965 | – | 10 | – | 39,89823 | – | 2 | – |
| 0,99746 | – | 80 | – | 8,63938 | 2,75 | – | – | 41,27500 | – | – | 15/8 |
| 1,09557 | 0,35 | – | – | 8,86627 | – | 9 | – | 43,98230 | 14 | – | – |
| 1,10828 | – | 72 | – | 9,42478 | 3 | – | – | 44,45000 | – | – | 13/4 |
| 1,24682 | – | 64 | – | 9,52500 | – | – | 3/8 | 45,59797 | – | 13/4 | – |
| 1,25664 | 0,40 | – | – | 9,97456 | – | 8 | – | 47,62500 | – | – | 17/8 |
| 1,32994 | – | 60 | – | 10,21018 | 3,25 | – | – | 50,26548 | 16 | – | – |
| 1,41372 | 0,45 | – | – | 10,99557 | 3,5 | – | – | 50,80000 | – | – | 2 |
| 1,57080 | 0,50 | – | – | 11,11250 | – | – | 7/16 | 53,19764 | – | 11/2 | – |
| 1,58750 | – | – | 1/16 | 11,39949 | – | 7 | – | 56,54867 | 18 | – | – |
| 1,59593 | – | 50 | – | 11,78097 | 3,75 | – | – | 62,83185 | 20 | – | – |
| 1,66243 | – | 48 | – | 12,56637 | 4 | – | – | 63,83716 | – | 11/4 | – |
| 1,72788 | 0,55 | – | – | 12,70000 | – | – | 1/2 | 69,11504 | 22 | – | – |
| 1,73471 | – | 46 | – | 13,29941 | – | 6 | – | 75,39822 | 24 | – | – |
| 1,81356 | – | 44 | – | 14,13717 | 4,5 | – | – | 78,53982 | 25 | – | – |
| 1,88496 | 0,60 | – | – | 14,28750 | – | – | 9/16 | 79,79645 | – | 1 | – |
| 1,89992 | – | 42 | – | 14,50845 | – | – | 51/2 | 81,68141 | 26 | – | – |
| 1,99491 | – | 40 | – | 15,70796 | 5 | – | – | 87,96459 | 28 | – | – |
| 2,04204 | 0,65 | – | – | 15,87500 | – | – | 5/8 | 91,19595 | – | 7/8 | – |
| 2,09991 | – | 38 | – | 15,95930 | – | 5 | – | 94,24778 | 30 | – | – |
| 2,19911 | 0,70 | – | – | 17,27876 | 5,5 | – | – | 100,53096 | 32 | – | – |
| 2,21657 | – | 36 | – | 17,46250 | – | – | 11/16 | 106,39527 | – | 3/4 | – |
| 2,34695 | – | 34 | – | 17,73255 | – | 41/2 | – | 109,95574 | 35 | – | – |
| 2,35619 | 0,75 | – | – | 18,84956 | 6 | – | – | 113,09734 | 36 | – | – |
| 2,49364 | – | 32 | – | 19,05000 | – | – | 3/4 | 125,66371 | 40 | – | – |
| 2,51327 | 0,80 | – | – | 19,94911 | – | 4 | – | 127,67432 | – | 5/8 | – |
| 2,65988 | – | 30 | – | 20,42035 | 6,5 | – | – | 141,37167 | 45 | – | – |
| 2,67035 | 0,85 | – | – | 20,63750 | – | – | 13/16 | 157,07963 | 50 | – | – |
| 2,82743 | 0,90 | – | – | 21,99115 | 7 | – | – | 159,59290 | – | 1/2 | – |
DP
CP DP = 25,4
CP = 3,14159265 DP CP =
pitch
