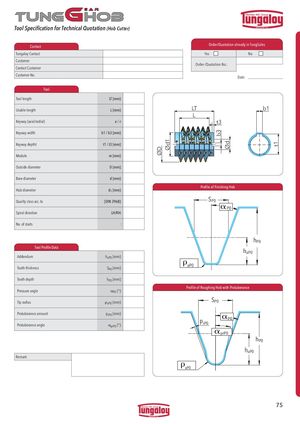

Tool Specification for Technical Quotation (Hob Cutter)

Contact Order/Quotation already in TungSales

Contact
Tungaloy Contact
Customer
Contact Customer
Customer No.

Order-/Quotation-No.: Date:

Tool
Tool lengthLT [mm]:
Usable lengthL [mm]:
Keyway (axial/radial)a / r:
Keyway widthb1 / b3 [mm]:
Keyway depthtt1 / t3 [mm]:
Modulem [mm]:
Outside diameterD [mm]:
Bore diameterd [mm]:
Hub diameterd1[mm]:
Quality class acc. to[DIN 3968]:
Spiral directionLH/RH:
No. of starts:

LT b1

L

Profile of Finishing Hob

S

P0

h

P0

Tool Profile Data
AddendumhaPO[mm]:
Tooth thicknessSPO[mm]:
Tooth depthhPO[mm]:
Pressure angleaPO[°]:
Tip radiusraPO[mm]:
Protuberance amountprPO[mm]:
Protuberance angleaprPO[°]:

aP0 aP0

Profile of Roughing Hob with Protuberance

S

p P0 prP0

h

P0

h

aP0 Remark aP0
