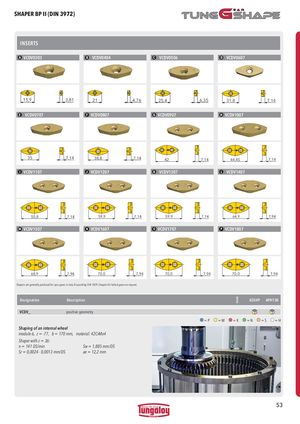

Каталог Tungaloy зубофрезерование

A VCDV0303 B VCDV0404 C VCDV0506 D VCDV0607

	15,9	3,81		21	4,76		25,4	6,35		31,8	7,14
E	VCDV0707		F	VCDV0807		G	VCDV0907		H	VCDV1007

35	7,14	38,8	7,14	42	7,14
						44,45	7,14

I VCDV1107 J VCDV1207 K VCDV1307 L VCDV1407

50,8 7,14 59,9 7,14 59,9 7,14 64,9 7,94

M VCDV1507 N VCDV1607 O VCDV1707 P VCDV1807

	68,9	7,94	70,0	7,94	70,0	7,94	70,0	7,94
Shapers are generally produced for spur gears in class B according DIN 1829. Shapers für helical gears on request.

Designation Description A35HP APH130

VCDV_ positive geometry = P = M = K = N = S = H Shaping of an internal wheel module 6, z = -77, b = 170 mm, material: 42CrMo4

Shaper with z = 36: n = 141 DS/min Sw = 1,885 mm/DS Sr = 0,0024 - 0,0013 mm/DS ae = 12,2 mm

Каталог Tungaloy зубофрезерование - страница 53
