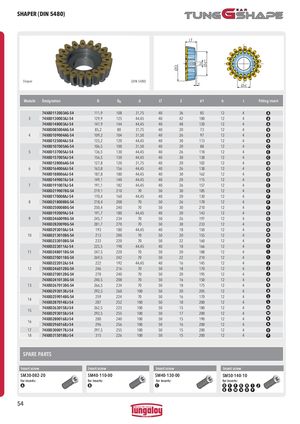

| L | T | ||||||||
| ØD | Ød1 b | ||||||||
| Shaper | (DIN 5480) | t | Ød | ||||||
| Module | Designation | D | D0 | d | LT | Z | d1 | b | t Fitting insert |
| 74X8D112003AG-54 | 111,9 | 108 | 31,75 | 40 | 36 | 85 | 12 | 4 A | |
| 3 | 74X8D130003AJ-54 | 129,9 | 125 | 44,45 | 40 | 42 | 100 | 12 | 4 A |
| 74X8D148003AJ-54 | 147,9 | 144 | 44,45 | 40 | 48 | 120 | 12 | 4 A | |
| 74X8D085004AG-54 | 85,2 | 80 | 31,75 | 40 | 20 | 73 | 12 | 4 B | |
| 4 | 74X8D109004AG-54 | 109,2 | 104 | 31,50 | 40 | 26 | 97 | 12 | 4 B |
| 74X8D125004AJ-54 | 125,2 | 120 | 44,45 | 40 | 30 | 113 | 12 | 4 B | |
| 74X8D107005AG-54 | 106,5 | 100 | 31,50 | 40 | 20 | 88 | 12 | 4 C | |
| 5 | 74X8D137005AJ-54 | 136,5 | 130 | 44,45 | 40 | 26 | 118 | 12 | 4 C |
| 74X8D157005AJ-54 | 156,5 | 150 | 44,45 | 40 | 30 | 138 | 12 | 4 C | |
| 74X8D128006AG-54 | 127,8 | 120 | 31,75 | 40 | 20 | 102 | 12 | 4 D | |
| 6 | 74X8D164006AJ-54 | 163,8 | 156 | 44,45 | 40 | 26 | 138 | 12 | 4 D |
| 74X8D188006AJ-54 | 187,8 | 180 | 44,45 | 40 | 30 | 162 | 12 | 4 D | |
| 74X8D149007AJ-54 | 149,1 | 140 | 44,45 | 40 | 20 | 115 | 12 | 4 E | |
| 7 | 74X8D191007AJ-54 | 191,1 | 182 | 44,45 | 40 | 26 | 157 | 12 | 4 E |
| 74X8D219007BG-54 | 219,1 | 210 | 70 | 50 | 30 | 185 | 12 | 4 E | |
| 74X8D170008AJ-54 | 170,4 | 160 | 44,45 | 40 | 20 | 130 | 12 | 4 F | |
| 8 | 74X8D218008BG-54 | 218,4 | 208 | 70 | 50 | 26 | 178 | 12 | 4 F |
| 74X8D250008BG-54 | 250,4 | 240 | 70 | 50 | 30 | 210 | 12 | 4 F | |
| 74X8D192009AJ-54 | 191,7 | 180 | 44,45 | 40 | 20 | 143 | 12 | 4 G | |
| 9 | 74X8D246009BG-54 | 245,7 | 234 | 70 | 50 | 26 | 197 | 12 | 4 G |
| 74X8D282009BG-54 | 281,7 | 270 | 70 | 50 | 30 | 233 | 12 | 4 G | |
| 74X8D293010AJ-54 | 193 | 180 | 44,45 | 40 | 18 | 150 | 12 | 4 H | |
| 10 | 74X8D213010BG-54 | 213 | 200 | 70 | 50 | 20 | 155 | 12 | 4 H |
| 74X8D233010BG-54 | 233 | 220 | 70 | 50 | 22 | 160 | 12 | 4 H | |
| 74X8D223011AJ-54 | 225,5 | 198 | 44,45 | 40 | 18 | 166 | 12 | 4 I | |
| 11 | 74X8D248011BG-54 | 247,5 | 220 | 70 | 50 | 20 | 188 | 12 | 4 I |
| 74X8D270011BG-54 | 269,5 | 242 | 70 | 50 | 22 | 210 | 12 | 4 I | |
| 74X8D222012AJ-54 | 222 | 192 | 44,45 | 40 | 16 | 145 | 12 | 4 J | |
| 12 | 74X8D246012BG-54 | 246 | 216 | 70 | 50 | 18 | 170 | 12 | 4 J |
| 74X8D270012BG-54 | 270 | 240 | 70 | 50 | 20 | 195 | 12 | 4 J | |
| 74X8D241013BG-54 | 240,5 | 208 | 70 | 50 | 16 | 150 | 12 | 4 K | |
| 13 | 74X8D267013BG-54 | 266,5 | 234 | 70 | 50 | 18 | 175 | 12 | 4 K |
| 74X8D293013BJ-54 | 292,5 | 260 | 100 | 50 | 20 | 205 | 12 | 4 K | |
| 74X8D259014BG-54 | 259 | 224 | 70 | 50 | 16 | 170 | 12 | 4 L | |
| 14 | 74X8D287014BJ-54 | 287 | 252 | 100 | 50 | 18 | 200 | 12 | 4 L |
| 74X8D263015BJ-54 | 262,5 | 225 | 100 | 50 | 15 | 180 | 12 | 4 M | |
| 15 | 74X8D293015BJ-54 | 292,5 | 255 | 100 | 50 | 17 | 200 | 12 | 4 M |
| 16 | 74X8D280016BJ-54 | 280 | 240 | 100 | 50 | 15 | 190 | 12 | 4 N |
| 74X8D296016BJ-54 | 296 | 256 | 100 | 50 | 16 | 200 | 12 | 4 N | |
| 17 | 74X8D300017BJ-54 | 2975 | 255 | 100 | 50 | 15 | 200 | 12 | 4 O |
| 18 | 74X8D315018BJ-54 | , 315 | 226 | 100 | 50 | 15 | 200 | 12 | 4 P |
SPARE PARTS
| Insert screw | Insert screw | Insert screw | Insert screw | ||||||
| SM30-082-20 | SM40-110-00 | SM40-130-00 | SM50-140-10 | ||||||
| for inserts: | for inserts: | for inserts: | for inserts: | ||||||
| A | B | C | D | E | F | G | H | I | J |
| K | L | M | N | O | P |
