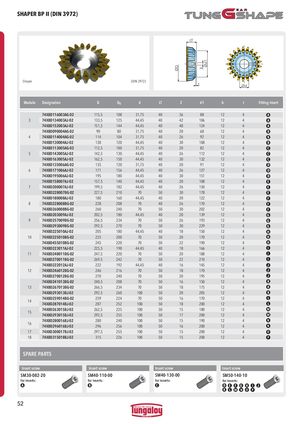

| L ØD | T Ød1 b | ||||||||
| Shaper | (DIN 3972) | t | Ød | ||||||
| Module | Designation | D | D0 | d | LT | Z | d1 | b | t Fitting insert |
| 74X8D116003AG-02 | 115,5 | 108 | 31,75 | 40 | 36 | 88 | 12 | 4 A | |
| 3 | 74X8D134003AJ-02 | 133,5 | 125 | 44,45 | 40 | 42 | 106 | 12 | 4 A |
| 74X8D152003AJ-02 | 151,5 | 144 | 44,45 | 40 | 48 | 124 | 12 | 4 A | |
| 74X8D090004AG-02 | 90 | 80 | 31,75 | 40 | 20 | 68 | 12 | 4 B | |
| 4 | 74X8D114004AG-02 | 114 | 104 | 31,75 | 40 | 26 | 92 | 12 | 4 B |
| 74X8D130004AJ-02 | 130 | 120 | 44,45 | 40 | 30 | 108 | 12 | 4 B | |
| 74X8D113005AG-02 | 112,5 | 100 | 31,75 | 40 | 20 | 82 | 12 | 4 C | |
| 5 | 74X8D143005AJ-02 | 142,5 | 130 | 44,45 | 40 | 26 | 112 | 12 | 4 C |
| 74X8D163005AJ-02 | 162,5 | 150 | 44,45 | 40 | 30 | 132 | 12 | 4 C | |
| 74X8D135006AG-02 | 135 | 120 | 31,75 | 40 | 20 | 91 | 12 | 4 D | |
| 6 | 74X8D171006AJ-02 | 171 | 156 | 44,45 | 40 | 26 | 127 | 12 | 4 D |
| 74X8D195006AJ-02 | 195 | 180 | 44,45 | 40 | 30 | 151 | 12 | 4 D | |
| 74X8D158007AJ-02 | 157,5 | 140 | 44,45 | 40 | 20 | 108 | 12 | 4 E | |
| 7 | 74X8D200007AJ-02 | 199,5 | 182 | 44,45 | 40 | 26 | 150 | 12 | 4 E |
| 74X8D228007BG-02 | 227,5 | 210 | 70 | 50 | 30 | 178 | 12 | 4 E | |
| 74X8D180008AJ-02 | 180 | 160 | 44,45 | 40 | 20 | 122 | 12 | 4 F | |
| 8 | 74X8D228008BG-02 | 228 | 208 | 70 | 40 | 26 | 170 | 12 | 4 F |
| 74X8D260008BG-02 | 260 | 240 | 70 | 50 | 30 | 202 | 12 | 4 F | |
| 74X8D203009AJ-02 | 202,5 | 180 | 44,45 | 40 | 20 | 139 | 12 | 4 G | |
| 9 | 74X8D257009BG-02 | 256,5 | 234 | 70 | 50 | 26 | 193 | 12 | 4 G |
| 74X8D293009BG-02 | 292,5 | 270 | 70 | 50 | 30 | 229 | 12 | 4 G | |
| 74X8D225010AJ-02 | 205 | 180 | 44,45 | 40 | 18 | 150 | 12 | 4 H | |
| 10 | 74X8D225010BG-02 | 225 | 200 | 70 | 50 | 20 | 170 | 12 | 4 H |
| 74X8D455010BG-02 | 245 | 220 | 70 | 50 | 22 | 190 | 12 | 4 H | |
| 74X8D223011AJ-02 | 225,5 | 198 | 44,45 | 40 | 18 | 166 | 12 | 4 I | |
| 11 | 74X8D248011BG-02 | 247,5 | 220 | 70 | 50 | 20 | 188 | 12 | 4 I |
| 74X8D270011BG-02 | 269,5 | 242 | 70 | 50 | 22 | 210 | 12 | 4 I | |
| 74X8D222012AJ-02 | 222 | 192 | 44,45 | 40 | 16 | 145 | 12 | 4 J | |
| 12 | 74X8D246012BG-02 | 246 | 216 | 70 | 50 | 18 | 170 | 12 | 4 J |
| 74X8D270012BG-02 | 270 | 240 | 70 | 50 | 20 | 195 | 12 | 4 J | |
| 74X8D241013BG-02 | 240,5 | 208 | 70 | 50 | 16 | 150 | 12 | 4 K | |
| 13 | 74X8D267013BG-02 | 266,5 | 234 | 70 | 50 | 18 | 175 | 12 | 4 K |
| 74X8D293013BJ-02 | 292,5 | 260 | 100 | 50 | 20 | 205 | 12 | 4 K | |
| 74X8D259014BG-02 | 259 | 224 | 70 | 50 | 16 | 170 | 12 | 4 L | |
| 14 | 74X8D287014BJ-02 | 287 | 252 | 100 | 50 | 18 | 200 | 12 | 4 L |
| 74X8D263015BJ-02 | 262,5 | 225 | 100 | 50 | 15 | 180 | 12 | 4 M | |
| 15 | 74X8D293015BJ-02 | 292,5 | 255 | 100 | 50 | 17 | 200 | 12 | 4 M |
| 74X8D280016BJ-02 | 280 | 240 | 100 | 50 | 15 | 190 | 12 | 4 N | |
| 16 | 74X8D296016BJ-02 | 296 | 256 | 100 | 50 | 16 | 200 | 12 | 4 N |
| 17 | 74X8D300017BJ-02 | 2975 | 255 | 100 | 50 | 15 | 200 | 12 | 4 O |
| 18 | 74X8D315018BJ-02 | , 315 | 226 | 100 | 50 | 15 | 200 | 12 | 4 P |
SPARE PARTS
| Insert screw | Insert screw | Insert screw | Insert screw | ||||||
| SM30-082-20 | SM40-110-00 | SM40-130-00 | SM50-140-10 | ||||||
| for inserts: | for inserts: | for inserts: | for inserts: | ||||||
| A | B | C | D | E | F | G | H | I | J |
| K | L | M | N | O | P |
