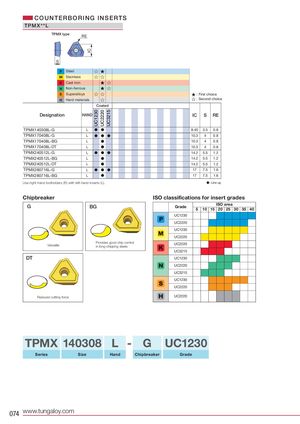

COUNTERBORING INSERTS
T PM X * * L
TPMX type RE
S
| P | Steel | |
| M | Stainless | |
| K | Cast iron | |
| N | Non-ferrous | |
| S | Superalloys | : First choice |
| H | Hard materials | : Second choice |
| Coated |
Designation HAND IC S RE
| TPMX140308L-G | L | 8.45 | 3.5 | 0.8 |
| TPMX170408L-G | L | 10.3 | 4 | 0.8 |
| TPMX170408L-BG | L | 10.3 | 4 | 0.8 |
| TPMX170408L-DT | L | 10.3 | 4 | 0.8 |
| TPMX240512L-G | L | 14.2 | 5.5 | 1.2 |
| TPMX240512L-BG | L | 14.2 | 5.5 | 1.2 |
| TPMX240512L-DT | L | 14.2 | 5.5 | 1.2 |
| TPMX280716L-G | L | 17 | 7.5 | 1.6 |
| TPMX280716L-BG | L | 17 | 7.5 | 1.6 |
Use right-hand toolholders (R) with left-hand inserts (L). 䖃: Line up
Chipbreaker ISO classifi cations for insert grades
G BG ISO area
Grade 5 10 15 20 25 30 35 40 UC1230 UC2220
UC1230 UC2220 Provides good chip control UC2220 Versatile in long-chipping steels UC3215 DT UC1230 UC2220 UC3215 UC1230 UC2220 Reduced cutting force UC2220
TPMX 140308 L - G UC1230
Series Size Hand Chipbreaker Grade
