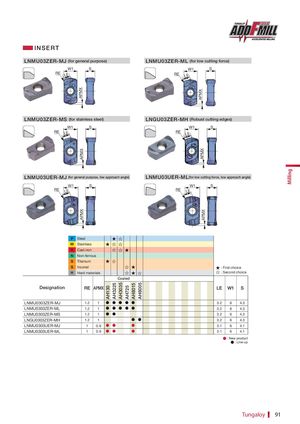

INSERT
LNMU03ZER-MJ (for general purpose) LNMU03ZER-ML (for low cutting force)
W1 S W1 S
RE LE RE
LE
LNMU03ZER-MS (for stainless steel) LNGU03ZER-MH (Robust cutting edges)
W1 S W1 S
RE LE RE
LE
LNMU03UER-MJ (for general purpose, low approach angle) LNMU03UER-ML(for low cutting force, low approach angle)
| W1 | S | W1 | S | ||
| RE | LE | RE | LE |
| P | Steel | |
| M | Stainless | |
| K | Cast iron | |
| N | Non-ferrous | |
| S | Titanium | |
| S | Inconel | : First choice |
| H | Hard materials | : Second choice |
| Coated |
| Designation RE APMX | LE W1 | S | |||||
| LNMU0303ZER-MJ | 1.2 | 1 | | 3.2 | 6 | 4.3 | |
| LNMU0303ZER-ML | 1.2 | 1 | | 3.2 | 6 | 4.3 | |
| LNMU0303ZER-MS | 1.2 | 1 | | 3.2 | 6 | 4.3 | |
| LNGU0303ZER-MH | 1.2 | 1 | | 3.2 | 6 | 4.3 | |
| LNMU0303UER-MJ | 1 | 0.9 | | | 3.1 | 6 | 4.1 |
| LNMU0303UER-ML | 1 | 0.9 | | | 3.1 | 6 | 4.1 |
: New product : Line-up
