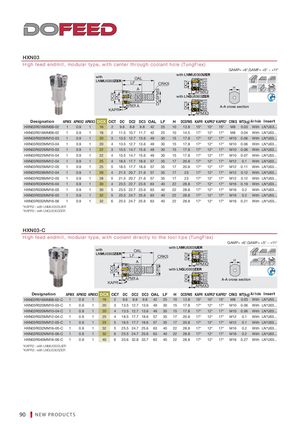

HXN03
High feed e n d m i l l , modular t y p e , with center through coolant hole ( T u n g F l e x )
| with LNMU | DCX KA 0303 | DC P Z | A R ER | O LF PMX | AL A A | DCSFMS | CRKS | w w | DC2 DC3 ith LNM ith LNG | APM APM U0303 U0303Z | X2 X3 UER ER | A-A | H GAMP cross s | = +6°, ection | GAMF= | +5° ~ +11° | ||||
| Designation | APMX | APMX2 | APMX3 | DCX | CIC | T | DC | DC2 | DC3 | OAL | LF | H | DCSFMS | KAPR | KAPR2 | KAPR3 | CRKS | WT(kg) | Air hol | e Insert |
| HXN03R016MM08-02 | 1 | 0.9 | 1 | 16 | 2 | 9.6 | 8.8 | 9.8 | 42 | 25 | 10 | 12.8 | 15° | 10° | 15° | M8 | 0.03 | With | LNU03... | |
| HXN03R018MM08-02 | 1 | 0.9 | 1 | 18 | 2 | 11.5 | 10.7 | 11.7 | 42 | 25 | 10 | 14.5 | 17° | 12° | 17° | M8 | 0.04 | With | LNU03... | |
| HXN03R020MM10-03 | 1 | 0.9 | 1 | 20 | 3 | 13.5 | 12.7 | 13.6 | 49 | 30 | 15 | 17.8 | 17° | 12° | 17° | M10 | 0.06 | With | LNU03... | |
| HXN03R020MM10-04 | 1 | 0.9 | 1 | 20 | 4 | 13.5 | 12.7 | 13.6 | 49 | 30 | 15 | 17.8 | 17° | 12° | 17° | M10 | 0.06 | With | LNU03... | |
| HXN03R022MM10-03 | 1 | 0.9 | 1 | 22 | 3 | 15.5 | 14.7 | 15.6 | 49 | 30 | 15 | 17.8 | 17° | 12° | 17° | M10 | 0.06 | With | LNU03... | |
| HXN03R022MM10-04 | 1 | 0.9 | 1 | 22 | 4 | 15.5 | 14.7 | 15.6 | 49 | 30 | 15 | 17.8 | 17° | 12° | 17° | M10 | 0.07 | With | LNU03... | |
| HXN03R025MM12-04 | 1 | 0.9 | 1 | 25 | 4 | 18.5 | 17.7 | 18.6 | 57 | 35 | 17 | 20.8 | 17° | 12° | 17° | M12 | 0.1 | With | LNU03... | |
| HXN03R025MM12-05 | 1 | 0.9 | 1 | 25 | 5 | 18.5 | 17.7 | 18.6 | 57 | 35 | 17 | 20.8 | 17° | 12° | 17° | M12 | 0.11 | With | LNU03... | |
| HXN03R028MM12-04 | 1 | 0.9 | 1 | 28 | 4 | 21.5 | 20.7 | 21.6 | 57 | 35 | 17 | 23 | 17° | 12° | 17° | M12 | 0.12 | With | LNU03... | |
| HXN03R028MM12-05 | 1 | 0.9 | 1 | 28 | 5 | 21.5 | 20.7 | 21.6 | 57 | 35 | 17 | 23 | 17° | 12° | 17° | M12 | 0.12 | With | LNU03... | |
| HXN03R030MM16-04 | 1 | 0.9 | 1 | 30 | 4 | 23.5 | 22.7 | 23.6 | 63 | 40 | 22 | 28.8 | 17° | 12° | 17° | M16 | 0.19 | With | LNU03... | |
| HXN03R030MM16-05 | 1 | 0.9 | 1 | 30 | 5 | 23.5 | 22.7 | 23.6 | 63 | 40 | 22 | 28.8 | 17° | 12° | 17° | M16 | 0.2 | With | LNU03... | |
| HXN03R032MM16-05 | 1 | 0.9 | 1 | 32 | 5 | 25.5 | 24.7 | 25.6 | 63 | 40 | 22 | 28.8 | 17° | 12° | 17° | M16 | 0.2 | With | LNU03... | |
| HXN03R032MM16-06 | 1 | 0.9 | 1 | 32 | 6 | 25.5 | 24.7 | 25.6 | 63 | 40 | 22 | 28.8 | 17° | 12° | 17° | M16 | 0.21 | With | LNU03... |
*KAPR2 : with LNMU0303UER *KAPR3 : with LNGU0303ZER
HXN03-C
High feed e n d m i l l , modular t y p e , with coolant directly t o the tool tips ( T u n g F l e x )
| K with LNMU03 | DCX DC APR 03ZER | AP | OA LF MX A A | L | DCSFMS CR | KS | with L with L | DC2 DC3 NMU030 NGU030 | APM APM 3UER 3ZER | X2 X3 | A-A | H GAMP cross | = +6°,G sectio | AMF= n | +5° ~ +11° | ||
| Designation | APMX APMX2 | APMX3 DCX | CICT | DC | DC2 | DC3 | OAL | LF | H | DCSFMS | KAPR | KAPR2 | KAPR3 | CRKS | WT(kg | ) Air hol | e Insert |
| HXN03R016MM08-02-C | 1 0.9 | 1 16 | 2 | 9.6 | 8.8 | 9.8 | 42 | 25 | 10 | 12.8 | 15° | 10° | 15° | M8 | 0.03 | With | LNU03... |
| HXN03R020MM10-03-C | 1 0.9 | 1 20 | 3 | 13.5 | 12.7 | 13.6 | 49 | 30 | 15 | 17.8 | 17° | 12° | 17° | M10 | 0.06 | With | LNU03... |
| HXN03R020MM10-04-C | 1 0.9 | 1 20 | 4 | 13.5 | 12.7 | 13.6 | 49 | 30 | 15 | 17.8 | 17° | 12° | 17° | M10 | 0.06 | With | LNU03... |
| HXN03R025MM12-04-C | 1 0.9 | 1 25 | 4 | 18.5 | 17.7 | 18.6 | 57 | 35 | 17 | 20.8 | 17° | 12° | 17° | M12 | 0.1 | With | LNU03... |
| HXN03R025MM12-05-C | 1 0.9 | 1 25 | 5 | 18.5 | 17.7 | 18.6 | 57 | 35 | 17 | 20.8 | 17° | 12° | 17° | M12 | 0.1 | With | LNU03... |
| HXN03R032MM16-05-C | 1 0.9 | 1 32 | 5 | 25.5 | 24.7 | 25.6 | 63 | 40 | 22 | 28.8 | 17° | 12° | 17° | M16 | 0.2 | With | LNU03... |
| HXN03R032MM16-06-C | 1 0.9 | 1 32 | 6 | 25.5 | 24.7 | 25.6 | 63 | 40 | 22 | 28.8 | 17° | 12° | 17° | M16 | 0.2 | With | LNU03... |
| HXN03R040MM16-06-C | 1 0.9 | 1 40 | 6 | 33.6 | 32.8 | 33.7 | 63 | 40 | 22 | 28.8 | 17° | 12° | 17° | M16 | 0.27 | With | LNU03... |
*KAPR2 : with LNMU0303UER *KAPR3 : with LNGU0303ZER
