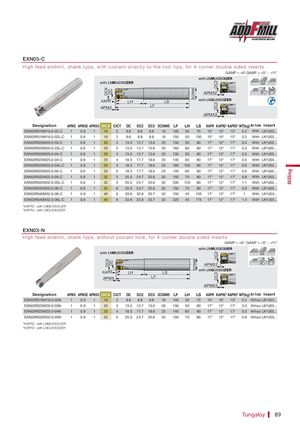

EXN03-C
| High feed endmill, | sha | nk typ | e, w | ith c | oolan | t dir | ectly | to th | e too | l tips | , for | 4-c | orner | G doub | AMP = le si | +6°,G ded | AMF = inser | +5° ~ +11° ts |
| DCX DC KAPR APMX with LN | MU03 | LH 03ZER | LF | LS | DCONMS wi wi | APMX APMX th LNM th LNGU | DC2 DC3 2 3 U0303U 0303ZE | ER R | ||||||||||
| Designation | APMX | APMX2 | APMX3 | DCX | CICT | DC | DC2 | DC3 | DCONMS | LF | LH | LS | KAPR | KAPR2 | KAPR3 | WT(kg | ) Air hol | e Insert |
| EXN03R016M16.0-02-C | 1 | 0.9 | 1 | 16 | 2 | 9.6 | 8.8 | 9.8 | 16 | 100 | 30 | 70 | 15° | 10° | 15° | 0.2 | With | LNU03... |
| EXN03R016M16.0-02L-C | 1 | 0.9 | 1 | 16 | 2 | 9.6 | 8.8 | 9.8 | 16 | 150 | 50 | 100 | 15° | 10° | 15° | 0.2 | With | LNU03... |
| EXN03R020M20.0-03-C | 1 | 0.9 | 1 | 20 | 3 | 13.5 | 12.7 | 13.6 | 20 | 130 | 50 | 80 | 17° | 12° | 17° | 0.3 | With | LNU03... |
| EXN03R020M20.0-03L-C | 1 | 0.9 | 1 | 20 | 3 | 13.5 | 12.7 | 13.6 | 20 | 160 | 80 | 80 | 17° | 12° | 17° | 0.3 | With | LNU03... |
| EXN03R020M20.0-04-C | 1 | 0.9 | 1 | 20 | 4 | 13.5 | 12.7 | 13.6 | 20 | 130 | 50 | 80 | 17° | 12° | 17° | 0.3 | With | LNU03... |
| EXN03R025M25.0-04-C | 1 | 0.9 | 1 | 25 | 4 | 18.5 | 17.7 | 18.6 | 25 | 140 | 60 | 80 | 17° | 12° | 17° | 0.5 | With | LNU03... |
| EXN03R025M25.0-04L-C | 1 | 0.9 | 1 | 25 | 4 | 18.5 | 17.7 | 18.6 | 25 | 180 | 100 | 80 | 17° | 12° | 17° | 0.6 | With | LNU03... |
| EXN03R025M25.0-05-C | 1 | 0.9 | 1 | 25 | 5 | 18.5 | 17.7 | 18.6 | 25 | 140 | 60 | 80 | 17° | 12° | 17° | 0.5 | With | LNU03... |
| EXN03R032M32.0-05-C | 1 | 0.9 | 1 | 32 | 5 | 25.5 | 24.7 | 25.6 | 32 | 150 | 70 | 80 | 17° | 12° | 17° | 0.8 | With | LNU03... |
| EXN03R032M32.0-05L-C | 1 | 0.9 | 1 | 32 | 5 | 25.5 | 24.7 | 25.6 | 32 | 200 | 120 | 80 | 17° | 12° | 17° | 1.1 | With | LNU03... |
| EXN03R032M32.0-06-C | 1 | 0.9 | 1 | 32 | 6 | 25.5 | 24.7 | 25.6 | 32 | 150 | 70 | 80 | 17° | 12° | 17° | 0.8 | With | LNU03... |
| EXN03R040M32.0-06-C | 1 | 0.9 | 1 | 40 | 6 | 33.6 | 32.8 | 33.7 | 32 | 150 | 45 | 105 | 17° | 12° | 17° | 1 | With | LNU03... |
| EXN03R040M32.0-06L-C | 1 | 0.9 | 1 | 40 | 6 | 33.6 | 32.8 | 33.7 | 32 | 220 | 45 | 175 | 17° | 12° | 17° | 1.4 | With | LNU03... |
*KAPR2 : with LNMU0303UER *KAPR3 : with LNGU0303ZER
EXN03-N
High feed e n d m i l l , shank t y p e , without coolant h o l e , for 4 - c o r n e r double sided inserts
| GAMP = | +6°, G | AMF = +5° ~ +11° | ||||||||||||
| DCX DC KAPR APMX with LN | MU030 | LH 3ZER | LF | LS | DCONMS wit wit | DC3 DC2 APMX2 APMX3 h LNMU0 h LNGU0 | 303UER 303ZER | |||||||
| Designation | APMX APMX2 | APMX3 DCX | CICT | DC | DC2 | DC3 | DCONMS | LF | LH | LS | KAPR K | APR2 KAPR3 | WT(kg | ) Air hole Insert |
| EXN03R016M16.0-02N | 1 0.9 | 1 16 | 2 | 9.6 | 8.8 | 9.8 | 16 | 100 | 30 | 70 | 15° | 10° 15° | 0.2 | LNU03... Without |
| EXN03R020M20.0-03N | 1 0.9 | 1 20 | 3 | 13.5 | 12.7 | 13.6 | 20 | 130 | 50 | 80 | 17° | 12° 17° | 0.3 | LNU03... Without |
| EXN03R025M25.0-04N | 1 0.9 | 1 25 | 4 | 18.5 | 17.7 | 18.6 | 25 | 140 | 60 | 80 | 17° | 12° 17° | 0.5 | LNU03... Without |
| EXN03R032M32.0-05N | 1 0.9 | 1 32 | 5 | 25.5 | 24.7 | 25.6 | 32 | 150 | 70 | 80 | 17° | 12° 17° | 0.8 | LNU03... Without |
*KAPR2 : with LNMU0303UER *KAPR3 : with LNGU0303ZER
