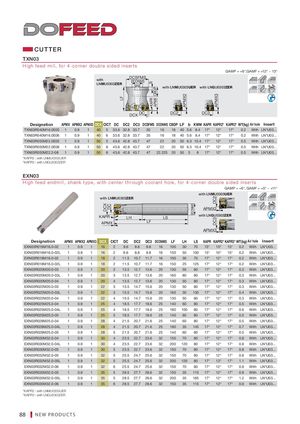

CUT TER
TXN03
High feed m i l l , for 4 - c o r n e r double sided inserts
| GAMP | = +6°,G | AMF = | +12° ~ 13° | ||||||||||||||
| with LNM | LF U0303ZER | DCX DC DCSFM DCONMS KWW | b S APMX CBDP KAPR | wit | APMX2 DC2 h LNMU0303UER | w | DC3 ith LN | APMX3 GU0303 | ZER | ||||||||
| Designation | APMX | APMX2 | APMX3 | DCX | CICT DC | DC2 | DC3 D | CSFMS | DCONMS | CBDP LF b K | WW | KAPR | KAPR2 | KAPR3 | WT(kg | ) Air hole | Insert |
| TXN03R040M16.0E05 | 1 | 0.9 | 1 | 40 | 5 33.6 | 32.8 | 33.7 | 35 | 16 | 18 40 5.6 | 8.4 | 17° | 12° | 17° | 0.2 | With | LNU03... |
| TXN03R040M16.0E06 | 1 | 0.9 | 1 | 40 | 6 33.6 | 32.8 | 33.7 | 35 | 16 | 18 40 5.6 | 8.4 | 17° | 12° | 17° | 0.2 | With | LNU03... |
| TXN03R050M22.0E05 | 1 | 0.9 | 1 | 50 | 5 43.6 | 42.8 | 43.7 | 47 | 22 | 20 50 6.3 | 10.4 | 17° | 12° | 17° | 0.5 | With | LNU03... |
| TXN03R050M22.0E08 | 1 | 0.9 | 1 | 50 | 8 43.6 | 42.8 | 43.7 | 47 | 22 | 20 50 6.3 | 10.4 | 17° | 12° | 17° | 0.5 | With | LNU03... |
| TXN03R050M22.2-08 | 1 | 0.9 | 1 | 50 | 8 43.6 | 42.8 | 43.7 | 47 | 22.225 | 20 50 5 | 8 | 17° | 12° | 17° | 0.5 | With | LNU03... |
*KAPR2 : with LNMU0303UER *KAPR3 : with LNGU0303ZER
EXN03
High feed e n d m i l l , shank t y p e , with center through coolant h o l e , for 4 - c o r n e r double sided inserts
| DCX KAPR with | DC LNMU0 | LH 303ZE | R | LS | DCONMS w w | APM ith LN ith LN | X2 DC2 3 MU030 GU0303 | GAMP 3UER ZER | = +6°, | GAMF | = +5° ~ +11° | |||||||
| APM | X | LF | APM | DC X3 | ||||||||||||||
| Designation | APMX | APMX2 | APMX3 | DCX | CICT | DC | DC2 | DC3 | DCONMS | LF | LH | LS | KAPR | KAPR2 | KAPR3 | WT(kg | ) Air hole | Insert |
| EXN03R016M16.0-02 | 1 | 0.9 | 1 | 16 | 2 | 9.6 | 8.8 | 9.8 | 16 | 100 | 30 | 70 | 15° | 10° | 15° | 0.2 | With | LNU03... |
| EXN03R016M16.0-02L | 1 | 0.9 | 1 | 16 | 2 | 9.6 | 8.8 | 9.8 | 16 | 150 | 50 | 100 | 15° | 10° | 15° | 0.2 | With | LNU03... |
| EXN03R018M16.0-02 | 1 | 0.9 | 1 | 18 | 2 | 11.5 | 10.7 | 11.7 | 16 | 100 | 30 | 70 | 17° | 12° | 17° | 0.2 | With | LNU03... |
| EXN03R018M16.0-02L | 1 | 0.9 | 1 | 18 | 2 | 11.5 | 10.7 | 11.7 | 16 | 150 | 25 | 125 | 17° | 12° | 17° | 0.2 | With | LNU03... |
| EXN03R020M20.0-03 | 1 | 0.9 | 1 | 20 | 3 | 13.5 | 12.7 | 13.6 | 20 | 130 | 50 | 80 | 17° | 12° | 17° | 0.3 | With | LNU03... |
| EXN03R020M20.0-03L | 1 | 0.9 | 1 | 20 | 3 | 13.5 | 12.7 | 13.6 | 20 | 160 | 80 | 80 | 17° | 12° | 17° | 0.3 | With | LNU03... |
| EXN03R020M20.0-04 | 1 | 0.9 | 1 | 20 | 4 | 13.5 | 12.7 | 13.6 | 20 | 130 | 50 | 80 | 17° | 12° | 17° | 0.3 | With | LNU03... |
| EXN03R022M20.0-03 | 1 | 0.9 | 1 | 22 | 3 | 15.5 | 14.7 | 15.6 | 20 | 130 | 50 | 80 | 17° | 12° | 17° | 0.3 | With | LNU03... |
| EXN03R022M20.0-03L | 1 | 0.9 | 1 | 22 | 3 | 15.5 | 14.7 | 15.6 | 20 | 160 | 30 | 130 | 17° | 12° | 17° | 0.4 | With | LNU03... |
| EXN03R022M20.0-04 | 1 | 0.9 | 1 | 22 | 4 | 15.5 | 14.7 | 15.6 | 20 | 130 | 50 | 80 | 17° | 12° | 17° | 0.3 | With | LNU03... |
| EXN03R025M25.0-04 | 1 | 0.9 | 1 | 25 | 4 | 18.5 | 17.7 | 18.6 | 25 | 140 | 60 | 80 | 17° | 12° | 17° | 0.5 | With | LNU03... |
| EXN03R025M25.0-04L | 1 | 0.9 | 1 | 25 | 4 | 18.5 | 17.7 | 18.6 | 25 | 180 | 100 | 80 | 17° | 12° | 17° | 0.6 | With | LNU03... |
| EXN03R025M25.0-05 | 1 | 0.9 | 1 | 25 | 5 | 18.5 | 17.7 | 18.6 | 25 | 140 | 60 | 80 | 17° | 12° | 17° | 0.5 | With | LNU03... |
| EXN03R028M25.0-04 | 1 | 0.9 | 1 | 28 | 4 | 21.5 | 20.7 | 21.6 | 25 | 140 | 60 | 80 | 17° | 12° | 17° | 0.5 | With | LNU03... |
| EXN03R028M25.0-04L | 1 | 0.9 | 1 | 28 | 4 | 21.5 | 20.7 | 21.6 | 25 | 180 | 35 | 145 | 17° | 12° | 17° | 0.7 | With | LNU03... |
| EXN03R028M25.0-05 | 1 | 0.9 | 1 | 28 | 5 | 21.5 | 20.7 | 21.6 | 25 | 140 | 60 | 80 | 17° | 12° | 17° | 0.5 | With | LNU03... |
| EXN03R030M32.0-04 | 1 | 0.9 | 1 | 30 | 4 | 23.5 | 22.7 | 23.6 | 32 | 150 | 70 | 80 | 17° | 12° | 17° | 0.8 | With | LNU03... |
| EXN03R030M32.0-04L | 1 | 0.9 | 1 | 30 | 4 | 23.5 | 22.7 | 23.6 | 32 | 200 | 120 | 80 | 17° | 12° | 17° | 0.9 | With | LNU03... |
| EXN03R030M32.0-05 | 1 | 0.9 | 1 | 30 | 5 | 23.5 | 22.7 | 23.6 | 32 | 150 | 70 | 80 | 17° | 12° | 17° | 0.8 | With | LNU03... |
| EXN03R032M32.0-05 | 1 | 0.9 | 1 | 32 | 5 | 25.5 | 24.7 | 25.6 | 32 | 150 | 70 | 80 | 17° | 12° | 17° | 0.8 | With | LNU03... |
| EXN03R032M32.0-05L | 1 | 0.9 | 1 | 32 | 5 | 25.5 | 24.7 | 25.6 | 32 | 200 | 120 | 80 | 17° | 12° | 17° | 1.1 | With | LNU03... |
| EXN03R032M32.0-06 | 1 | 0.9 | 1 | 32 | 6 | 25.5 | 24.7 | 25.6 | 32 | 150 | 70 | 80 | 17° | 12° | 17° | 0.9 | With | LNU03... |
| EXN03R035M32.0-05 | 1 | 0.9 | 1 | 35 | 5 | 28.5 | 27.7 | 28.6 | 32 | 150 | 35 | 115 | 17° | 12° | 17° | 0.9 | With | LNU03... |
| EXN03R035M32.0-05L | 1 | 0.9 | 1 | 35 | 5 | 28.5 | 27.7 | 28.6 | 32 | 200 | 35 | 165 | 17° | 12° | 17° | 1.2 | With | LNU03... |
| EXN03R035M32.0-06 | 1 | 0.9 | 1 | 35 | 6 | 28.5 | 27.7 | 28.6 | 32 | 150 | 35 | 115 | 17° | 12° | 17° | 0.9 | With | LNU03... |
*KAPR2 : with LNMU0303UER *KAPR3 : with LNGU0303ZER
