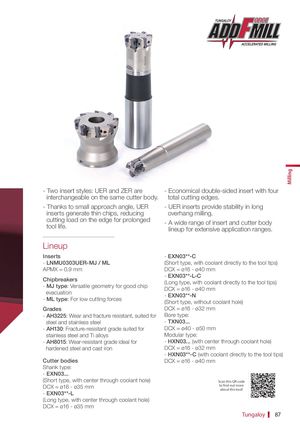

Milling - Two insert styles: UER and ZER are - Economical double-sided insert with four interchangeable on the same cutter body. total cutting edges. - Thanks to small approach angle, UER - UER inserts provide stability in long inserts generate thin chips, reducing overhang milling. cutting load on the edge for prolonged - A wide range of insert and cutter body tool life. lineup for extensive application ranges. Lineup Inserts - EXN03**-C - LNMU0303UER-MJ / ML (Short type, with coolant directly to the tool tips) APMX = 0.9 mm DCX = ø16 - ø40 mm - EXN03**-L-C Chipbreakers (Long type, with coolant directly to the tool tips) - MJ type: Versatile geometry for good chip DCX = ø16 - ø40 mm evacuation - EXN03**-N - ML type: For low cutting forces (Short type, without coolant hole) Grades DCX = ø16 - ø32 mm - AH3225: Wear and fracture resistant, suited for Bore type: steel and stainless steel - TXN03... - AH130: Fracture-resistant grade suited for DCX = ø40 - ø50 mm stainless steel and Ti alloys Modular type: - AH8015: Wear-resistant grade ideal for - HXN03... (with center through coolant hole) hardened steel and cast iron DCX = ø16 - ø32 mm - HXN03**-C (with coolant directly to the tool tips) Cutter bodies DCX = ø16 - ø40 mm Shank type: - EXN03... (Short type, with center through coolant hole) Scan this QR code to find out more DCX = ø16 - ø35 mm about this tool! - EXN03**-L (Long type, with center through coolant hole) DCX = ø16 - ø35 mm Tungaloy 87
