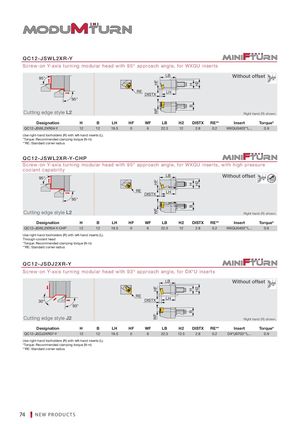

QC12-JSWL2XR-Y S c re w - o n Y- a x i s t u r n i n g m o d u l a r h e a d w i t h 9 5 ° a p p ro a c h a n g l e , f o r W XG U i n s e r t s LB Without offset 95° HF H2 H RE LH DISTX 95° B WF Cutting edge style L2 Right hand (R) shown. Designation H B LH HF WF LB H2 DISTX RE** Insert Torque* QC12-JSWL2XR04-Y 12 12 19.5 0 6 22.3 12 2.8 0.2 WXGU0403**L... 0.9 Use right-hand toolholders (R) with left-hand inserts (L). *Torque: Recommended clamping torque (N∙m) **RE: Standard corner radius QC12-JSWL2XR-Y-CHP Scre w - on Y- ax is t u r n i n g m o d u l a r h e a d wi t h 95° a pproa c h a ngle , for WXG U inse r t s, w it h high pre ssure co olan t cap ab ilit y LB Without offset 95° HF H2 RE LH H DISTX 95° B WF Cutting edge style L2 Right hand (R) shown. Designation H B LH HF WF LB H2 DISTX RE** Insert Torque* QC12-JSWL2XR04-Y-CHP 12 12 19.5 0 6 22.3 12 2.8 0.2 WXGU0403**L... 0.9 Use right-hand toolholders (R) with left-hand inserts (L). Through-coolant head *Torque: Recommended clamping torque (N∙m) **RE: Standard corner radius QC12-JSDJ2XR-Y S c re w - o n Y- a x i s t u r n i n g m o d u l a r h e a d w i t h 9 3 ° a p p ro a c h a n g l e , f o r DX * U i n s e r t s LB Without offset HF H2 H RE LH 30° DISTX 93° B WF Cutting edge style J2 Right hand (R) shown. Designation H B LH HF WF LB H2 DISTX RE** Insert Torque* QC12-JSDJ2XR07-Y 12 12 19.5 0 6 22.3 12.5 2.8 0.2 DX*U0703**L... 0.9 Use right-hand toolholders (R) with left-hand inserts (L). *Torque: Recommended clamping torque (N∙m) **RE: Standard corner radius 74 N E W PR O D U C T S
