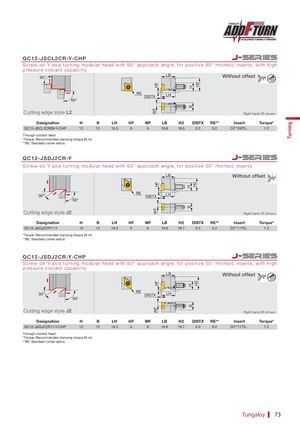

QC12-JSCL2CR-Y-CHP Screw - on Y- ax is t u r n i n g mo d u l a r h e a d wi t h 9 5° a pproa c h a ngle , for posit iv e 80° r hombic inse r t s, wi th hi gh p res s u re coolan t c a p a b i l i t y LB Without offset 95° H2 HF H RE LH DISTX 95° B WF Cutting edge style L2 Right hand (R) shown. Designation H B LH HF WF LB H2 DISTX RE** Insert Torque* Turning QC12-JSCL2CR09-Y-CHP 12 12 19.5 0 6 19.8 18.6 0.3 0.2 CC**09T3... 1.2 Through-coolant head *Torque: Recommended clamping torque (N∙m) **RE: Standard corner radius QC12-JSDJ2CR-Y Screw - on Y- ax is t u r n i n g mo d u l a r h e a d wi t h 9 3° a pproa c h a ngle , for posit iv e 55° r hombic inse r t s LB Without offset H2 HF H RE LH 30° DISTX 93° B WF Cutting edge style J2 Right hand (R) shown. Designation H B LH HF WF LB H2 DISTX RE** Insert Torque* QC12-JSDJ2CR11-Y 12 12 19.5 0 6 19.8 18.7 0.3 0.2 DC**11T3... 1.2 *Torque: Recommended clamping torque (N∙m) **RE: Standard corner radius QC12-JSDJ2CR-Y-CHP Scre w - on Y- a x is t u r n i n g mo d u l a r h e a d wi t h 9 3° a pproa c h a ngle , for posit iv e 55° r hombic inse r t s, wi th hi gh pres s u re coolan t c a p a b i l i t y LB Without offset H2 HF H RE LH 30° DISTX 93° B WF Cutting edge style J2 Right hand (R) shown. Designation H B LH HF WF LB H2 DISTX RE** Insert Torque* QC12-JSDJ2CR11-Y-CHP 12 12 19.5 0 6 19.8 18.7 0.3 0.2 DC**11T3... 1.2 Through-coolant head *Torque: Recommended clamping torque (N∙m) **RE: Standard corner radius Tungaloy 73
