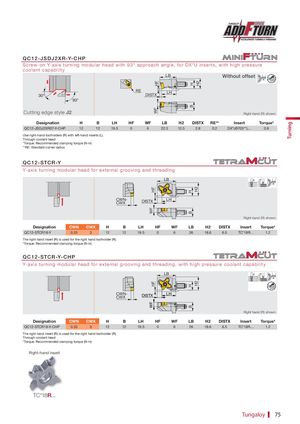

Q C 1 2 - J S D J 2 X R -Y- C H P
S c re w - o n Y- a x i s turning modular head with 9 3 ° approach a n g l e , for DX * U i n s e r t s , with high pressure coolant capability LB Without offset
RE LH 30° DISTX 93°
Cutting edge style J2
Right hand (R) shown.
| Designation | H | B | LH | HF | WF | LB | H2 | DISTX | RE** | Insert | Torque* | |||
| QC12-JSDJ2XR07-Y-CHP | 12 | 12 | 19.5 | 0 | 6 | 22.3 | 12.5 | 2.8 | 0.2 | DX*U0703**L... | 0.9 |
Use right-hand toolholders (R) with left-hand inserts (L). Through-coolant head *Torque: Recommended clamping torque (N∙m) **RE: Standard corner radius
Q C 1 2 - STC R -Y
Y- a x i s turning modular head for external grooving and threading LB
CWN- DISTX LH
CWX
Right hand (R) shown.
| Designation | CWN | CWX | H | B | LH | HF | WF | LB | H2 | DISTX | Insert | Torque* | ||
| QC12-STCR18-Y | 0.33 | 3 | 12 | 12 | 19.5 | 0 | 6 | 26 | 18.6 | 6.5 | TC*18R... | 1.2 |
The right hand insert (R) is used for the right hand toolholder (R). *Torque: Recommended clamping torque (N∙m)
Q C 1 2 - STC R -Y- C H P
Y- a x i s turning modular head for external grooving and t h re a d i n g , with high pressure coolant capability LB
CWN- DISTXDISTX LHLH
CWX
Right hand (R) shown.
| Designation | CWN | CWX | H | B | LH | HF | WF | LB | H2 | DISTX | Insert | Torque* | ||
| QC12-STCR18-Y-CHP | 0.33 | 3 | 12 | 12 | 19.5 | 0 | 6 | 26 | 18.6 | 6.5 | TC*18R... | 1.2 |
The right hand insert (R) is used for the right hand toolholder (R). Through-coolant head *Torque: Recommended clamping torque (N∙m)
Right-hand insert
TC*18R...
