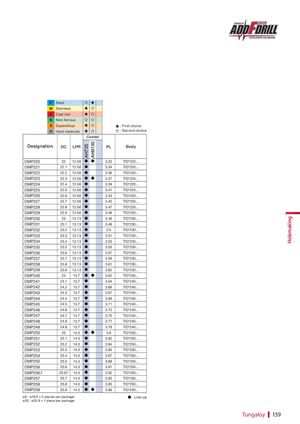

Брошюра Tungaloy новая продукция - страница 159

P Steel
M Stainless
K Cast iron
N Non-ferrous
S Superalloys : First choice
H Hard materials : Second choice
Coated
AH9130


Designation
AH725


DC LPR PL Body

DMP220 22 12.56   3.32 TID*220...
DMP221 22.1 12.56  3.34 TID*220...
DMP222 22.2 12.56  3.36 TID*220...
DMP223 22.3 12.56   3.37 TID*220...
DMP224 22.4 12.56  3.39 TID*220...
DMP225 22.5 12.56  3.41 TID*220...
DMP226 22.6 12.56  3.43 TID*220...
DMP227 22.7 12.56  3.45 TID*220...
DMP228 22.8 12.56  3.47 TID*220...
DMP229 22.9 12.56  3.48 TID*220...


Holemaking
DMP230 23 13.13  3.46 TID*230...
DMP231 23.1 13.13  3.48 TID*230...
DMP232 23.2 13.13  3.5 TID*230...
DMP233 23.3 13.13  3.51 TID*230...
DMP234 23.4 13.13  3.53 TID*230...
DMP235 23.5 13.13  3.55 TID*230...
DMP236 23.6 13.13  3.57 TID*230...
DMP237 23.7 13.13  3.59 TID*230...
DMP238 23.8 13.13  3.61 TID*230...
DMP239 23.9 13.13  3.62 TID*230...
DMP240 24 13.7   3.62 TID*240...
DMP241 24.1 13.7  3.64 TID*240...
DMP242 24.2 13.7  3.66 TID*240...
DMP243 24.3 13.7  3.67 TID*240...
DMP244 24.4 13.7  3.69 TID*240...
DMP245 24.5 13.7  3.71 TID*240...
DMP246 24.6 13.7  3.73 TID*240...
DMP247 24.7 13.7  3.75 TID*240...
DMP248 24.8 13.7  3.77 TID*240...
DMP249 24.9 13.7  3.78 TID*240...
DMP250 25 14.3   3.8 TID*250...
DMP251 25.1 14.3  3.82 TID*250...
DMP252 25.2 14.3  3.84 TID*250...
DMP253 25.3 14.3  3.85 TID*250...
DMP254 25.4 14.3  3.87 TID*250...
DMP255 25.5 14.3  3.89 TID*250...
DMP256 25.6 14.3  3.91 TID*250...
DMP2567 25.67 14.3  3.92 TID*250...
DMP257 25.7 14.3  3.93 TID*250...
DMP258 25.8 14.3  3.95 TID*250...
DMP259 25.9 14.3   3.96 TID*250...
ø6 - ø19.9 = 2 pieces per package  : Line-up
ø20 - ø25.9 = 1 piece per package

Tungaloy 159
