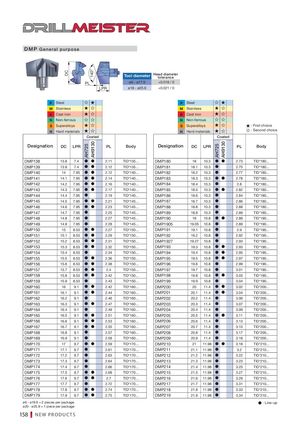

DMP General purpose


140°
DC
Tool diameter Head diameter
tolerance
PL ø6 - ø17.9 +0.018 / 0
LPR ø18 - ø25.9 +0.021 / 0

P Steel P Steel
M Stainless M Stainless
K Cast iron K Cast iron
N Non-ferrous N Non-ferrous
S Superalloys S Superalloys : First choice
H Hard materials H Hard materials : Second choice
Coated Coated
AH9130


AH9130
Designation Designation
AH725


AH725
DC LPR PL Body DC LPR PL Body

DMP138 13.8 7.4   2.11 TID*135... DMP180 18 10.3   2.73 TID*180...
DMP139 13.9 7.4   2.12 TID*135... DMP181 18.1 10.3  2.75 TID*180...
DMP140 14 7.95   2.12 TID*140... DMP182 18.2 10.3  2.77 TID*180...
DMP141 14.1 7.95   2.14 TID*140... DMP183 18.3 10.3   2.78 TID*180...
DMP142 14.2 7.95   2.16 TID*140... DMP184 18.4 10.3  2.8 TID*180...
DMP143 14.3 7.95   2.17 TID*140... DMP185 18.5 10.3   2.82 TID*180...
DMP144 14.4 7.95  2.19 TID*140... DMP186 18.6 10.3  2.84 TID*180...
DMP145 14.5 7.95   2.21 TID*145... DMP187 18.7 10.3  2.86 TID*180...
DMP146 14.6 7.95   2.23 TID*145... DMP188 18.8 10.3  2.88 TID*180...
DMP147 14.7 7.95  2.25 TID*145... DMP189 18.9 10.3  2.89 TID*180...
DMP148 14.8 7.95  2.27 TID*145... DMP190 19 10.8   2.88 TID*190...
DMP149 14.9 7.95  2.28 TID*145... DMP1905 19.05 10.8  2.89 TID*190...
DMP150 15 8.53   2.27 TID*150... DMP191 19.1 10.8  2.9 TID*190...
DMP151 15.1 8.53   2.29 TID*150... DMP192 19.2 10.8  2.92 TID*190...
DMP152 15.2 8.53   2.31 TID*150... DMP1927 19.27 10.8  2.93 TID*190...
DMP153 15.3 8.53   2.32 TID*150... DMP193 19.3 10.8   2.93 TID*190...
DMP154 15.4 8.53  2.34 TID*150... DMP194 19.4 10.8   2.95 TID*190...
DMP155 15.5 8.53   2.36 TID*150... DMP195 19.5 10.8   2.97 TID*190...
DMP156 15.6 8.53   2.38 TID*150... DMP196 19.6 10.8  2.99 TID*190...
DMP157 15.7 8.53   2.4 TID*150... DMP197 19.7 10.8  3.01 TID*190...
DMP158 15.8 8.53   2.42 TID*150... DMP198 19.8 10.8   3.03 TID*190...
DMP159 15.9 8.53  2.43 TID*150... DMP199 19.9 10.8  3.04 TID*190...
DMP160 16 9.1   2.42 TID*160... DMP200 20 11.4   3.02 TID*200...
DMP161 16.1 9.1   2.44 TID*160... DMP201 20.1 11.4   3.04 TID*200...
DMP162 16.2 9.1  2.46 TID*160... DMP202 20.2 11.4  3.06 TID*200...
DMP163 16.3 9.1   2.47 TID*160... DMP203 20.3 11.4  3.07 TID*200...
DMP164 16.4 9.1  2.49 TID*160... DMP204 20.4 11.4  3.09 TID*200...
DMP165 16.5 9.1   2.51 TID*160... DMP205 20.5 11.4   3.11 TID*200...
DMP166 16.6 9.1   2.53 TID*160... DMP206 20.6 11.4  3.13 TID*200...
DMP167 16.7 9.1   2.55 TID*160... DMP207 20.7 11.4  3.15 TID*200...
DMP168 16.8 9.1  2.57 TID*160... DMP208 20.8 11.4  3.17 TID*200...
DMP169 16.9 9.1  2.58 TID*160... DMP209 20.9 11.4  3.18 TID*200...
DMP170 17 9.7   2.59 TID*170... DMP210 21 11.98   3.18 TID*210...
DMP171 17.1 9.7  2.61 TID*170... DMP211 21.1 11.98  3.2 TID*210...
DMP172 17.2 9.7  2.63 TID*170... DMP212 21.2 11.98  3.22 TID*210...
DMP173 17.3 9.7  2.64 TID*170... DMP213 21.3 11.98  3.23 TID*210...
DMP174 17.4 9.7  2.66 TID*170... DMP214 21.4 11.98  3.25 TID*210...
DMP175 17.5 9.7   2.68 TID*170... DMP215 21.5 11.98  3.27 TID*210...
DMP176 17.6 9.7   2.7 TID*170... DMP216 21.6 11.98  3.29 TID*210...
DMP177 17.7 9.7  2.72 TID*170... DMP217 21.7 11.98  3.31 TID*210...
DMP178 17.8 9.7   2.74 TID*170... DMP218 21.8 11.98  3.33 TID*210...
DMP179 17.9 9.7   2.75 TID*170... DMP219 21.9 11.98  3.34 TID*210...
ø6 - ø19.9 = 2 pieces per package  : Line-up
ø20 - ø25.9 = 1 piece per package
