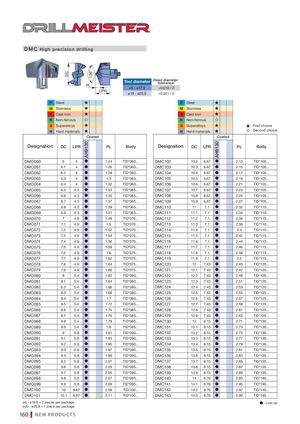

Брошюра Tungaloy новая продукция - страница 160

DMC High precision drilling


136°
DC

Tool diameter Head diameter
tolerance
PL
ø6 - ø17.9 +0.018 / 0
LPR
ø18 - ø25.9 +0.021 / 0
P Steel P Steel
M Stainless M Stainless
K Cast iron K Cast iron
N Non-ferrous N Non-ferrous
S Superalloys S Superalloys : First choice
H Hard materials H Hard materials : Second choice
Coated Coated
AH9130


AH9130
Designation DC LPR PL Body Designation DC LPR PL Body

DMC060 6 4  1.24 TID*060... DMC102 10.2 6.67  2.13 TID*100...
DMC061 6.1 4  1.26 TID*060... DMC103 10.3 6.67  2.15 TID*100...
DMC062 6.2 4  1.28 TID*060... DMC104 10.4 6.67  2.17 TID*100...
DMC063 6.3 4  1.3 TID*060... DMC105 10.5 6.67  2.19 TID*105...
DMC064 6.4 4  1.32 TID*060... DMC106 10.6 6.67  2.21 TID*105...
DMC065 6.5 4.3  1.33 TID*065... DMC107 10.7 6.67  2.23 TID*105...
DMC066 6.6 4.3  1.35 TID*065... DMC108 10.8 6.67  2.25 TID*105...
DMC067 6.7 4.3  1.37 TID*065... DMC109 10.9 6.67  2.27 TID*105...
DMC068 6.8 4.3  1.39 TID*065... DMC110 11 7.1  2.32 TID*110...
DMC069 6.9 4.3  1.41 TID*065... DMC111 11.1 7.1  2.34 TID*110...
DMC070 7 4.9  1.48 TID*070... DMC112 11.2 7.1  2.36 TID*110...
DMC071 7.1 4.9  1.5 TID*070... DMC113 11.3 7.1  2.38 TID*110...
DMC072 7.2 4.9  1.52 TID*070... DMC114 11.4 7.1  2.4 TID*110...
DMC073 7.3 4.9  1.54 TID*070... DMC115 11.5 7.1  2.42 TID*115...
DMC074 7.4 4.9  1.56 TID*070... DMC116 11.6 7.1  2.44 TID*115...
DMC075 7.5 4.9  1.58 TID*075... DMC117 11.7 7.1  2.46 TID*115...
DMC076 7.6 4.9  1.6 TID*075... DMC118 11.8 7.1  2.48 TID*115...
DMC077 7.7 4.9  1.62 TID*075... DMC119 11.9 7.1  2.5 TID*115...
DMC078 7.8 4.9  1.64 TID*075... DMC120 12 7.43  2.45 TID*120...
DMC079 7.9 4.9  1.66 TID*075... DMC121 12.1 7.43  2.47 TID*120...
DMC080 8 5.4  1.62 TID*080... DMC122 12.2 7.43  2.49 TID*120...
DMC081 8.1 5.4  1.64 TID*080... DMC123 12.3 7.43  2.51 TID*120...
DMC082 8.2 5.4  1.66 TID*080... DMC124 12.4 7.43  2.53 TID*120...
DMC083 8.3 5.4  1.68 TID*080... DMC125 12.5 7.43  2.55 TID*125...
DMC084 8.4 5.4  1.7 TID*080... DMC126 12.6 7.43  2.57 TID*125...
DMC085 8.5 5.4  1.72 TID*085... DMC127 12.7 7.43  2.59 TID*125...
DMC086 8.6 5.4  1.74 TID*085... DMC128 12.8 7.43  2.61 TID*125...
DMC087 8.7 5.4  1.76 TID*085... DMC129 12.9 7.43  2.63 TID*125...
DMC088 8.8 5.4  1.78 TID*085... DMC130 13 8.15  2.71 TID*130...
DMC089 8.9 5.4  1.8 TID*085... DMC131 13.1 8.15  2.73 TID*130...
DMC090 9 5.8  1.91 TID*090... DMC132 13.2 8.15  2.75 TID*130...
DMC091 9.1 5.8  1.93 TID*090... DMC133 13.3 8.15  2.77 TID*130...
DMC092 9.2 5.8  1.95 TID*090... DMC134 13.4 8.15  2.79 TID*130...
DMC093 9.3 5.8  1.97 TID*090... DMC135 13.5 8.15  2.81 TID*135...
DMC094 9.4 5.8  1.99 TID*090... DMC136 13.6 8.15  2.83 TID*135...
DMC095 9.5 5.8  2.01 TID*095... DMC137 13.7 8.15  2.85 TID*135...
DMC096 9.6 5.8  2.03 TID*095... DMC138 13.8 8.15  2.87 TID*135...
DMC097 9.7 5.8  2.05 TID*095... DMC139 13.9 8.15  2.89 TID*135...
DMC098 9.8 5.8  2.07 TID*095... DMC140 14 8.76  2.93 TID*140...
DMC099 9.9 5.8  2.09 TID*095... DMC141 14.1 8.76  2.95 TID*140...
DMC100 10 6.67  2.09 TID*100... DMC142 14.2 8.76  2.97 TID*140...
DMC101 10.1 6.67  2.11 TID*100... DMC143 14.3 8.76  2.99 TID*140...
ø6 - ø19.9 = 2 pieces per package  : Line-up
ø20 - ø25.9 = 1 piece per package
