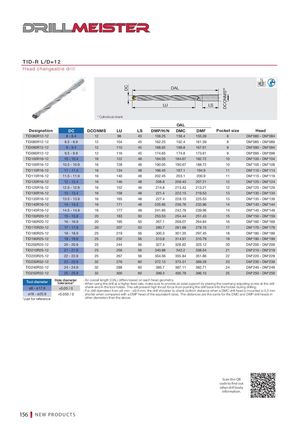

TID-R L/D=12
Head changeable drill
| DC | OAL | ONMSh6 | ||||||
| Cylindric | al shank | LU | LS DC | |||||
| OAL | ||||||||
| Designation | DC | DCONMS | LU | LS | DMP/H/N | DMC | DMF Pocket size | Head |
| TID080R12-12 | 8 - 8.4 | 12 | 98 | 45 | 156.25 | 156.4 | 155.39 8 | DM080 - DM084 |
| TID085R12-12 | 8.5 - 8.9 | 12 | 104 | 45 | 162.25 | 162.4 | 161.39 8 | DM085 - DM089 |
| TID090R12-12 | 9 - 9.4 | 12 | 110 | 45 | 168.65 | 168.8 | 167.61 9 | DM090 - DM094 |
| TID095R12-12 | 9.5 - 9.9 | 12 | 116 | 45 | 174.65 | 174.8 | 173.61 9 | DM095 - DM099 |
| TID100R16-12 | 10 - 10.4 | 16 | 122 | 48 | 184.05 | 184.67 | 182.72 10 | DM100 - DM104 |
| TID105R16-12 | 10.5 - 10.9 | 16 | 128 | 48 | 190.05 | 190.67 | 188.72 10 | DM105 - DM109 |
| TID110R16-12 | 11 - 11.4 | 16 | 134 | 48 | 196.45 | 197.1 | 194.9 11 | DM110 - DM114 |
| TID115R16-12 | 11.5 - 11.9 | 16 | 140 | 48 | 202.45 | 203.1 | 200.9 11 | DM115 - DM119 |
| TID120R16-12 | 12 - 12.4 | 16 | 146 | 48 | 208.8 | 209.43 | 207.21 12 | DM120 - DM124 |
| TID125R16-12 | 12.5 - 12.9 | 16 | 152 | 48 | 214.8 | 215.43 | 213.21 12 | DM125 - DM129 |
| TID130R16-12 | 13 - 13.4 | 16 | 158 | 48 | 221.4 | 222.15 | 219.53 13 | DM130 - DM134 |
| TID135R16-12 | 13.5 - 13.9 | 16 | 165 | 48 | 227.4 | 228.15 | 225.53 13 | DM135 - DM139 |
| TID140R16-12 | 14 - 14.4 | 16 | 171 | 48 | 235.95 | 236.76 | 233.96 14 | DM140 - DM144 |
| TID145R16-12 | 14.5 - 14.9 | 16 | 177 | 48 | 241.95 | 242.76 | 239.96 14 | DM145 - DM149 |
| TID150R20-12 | 15 - 15.9 | 20 | 183 | 50 | 253.53 | 254.44 | 251.43 15 | DM150 - DM159 |
| TID160R20-12 | 16 - 16.9 | 20 | 195 | 50 | 267.1 | 268.07 | 264.84 16 | DM160 - DM169 |
| TID170R20-12 | 17 - 17.9 | 20 | 207 | 50 | 280.7 | 281.68 | 278.15 17 | DM170 - DM179 |
| TID180R25-12 | 18 - 18.9 | 25 | 219 | 56 | 300.3 | 301.35 | 297.45 18 | DM180 - DM189 |
| TID190R25-12 | 19 - 19.9 | 25 | 232 | 56 | 313.8 | 314.91 | 310.79 19 | DM190 - DM199 |
| TID200R25-12 | 20 - 20.9 | 25 | 244 | 56 | 327.4 | 328.62 | 325.12 20 | DM200 - DM209 |
| TID210R25-12 | 21 - 21.9 | 25 | 256 | 56 | 340.98 | 342.2 | 338.54 21 | DM210 - DM219 |
| TID220R25-12 | 22 - 22.9 | 25 | 267 | 56 | 354.56 | 355.84 | 351.86 22 | DM220 - DM229 |
| TID230R32-12 | 23 - 23.9 | 32 | 276 | 60 | 372.13 | 373.51 | 369.28 23 | DM230 - DM239 |
| TID240R32-12 | 24 - 24.9 | 32 | 288 | 60 | 385.7 | 387.11 | 382.71 24 | DM240 - DM249 |
| TID250R32-12 | 25 - 25.9 | 32 | 300 | 60 | 399.3 | 400.78 | 396.15 25 | DM250 - DM259 |
| ø8 - ø17.9 ø18 - ø25.9 H Tool diameter | +0.05 / 0 +0.055 / 0 ole diameter tolerance | - An overall length ( - When using the d shank end in the t - For drill diameters shorter when com | OAL) differ rill at a high ool holder. from ø8 m pared with | s based on ea er feed rate, m This will preve m - ø9.9 mm, a DMP head | ch head geometr ake sure to provi nt high thrust forc the drill shoulder of the equivalent | y. de an axial s e from push to shank bot sizes. The di | upport by placing the overhang adju ing the drill back into the holder duri tom distance when a DMC drill hea stances are the same for the DMC a | sting screw at the drill ng drilling. d is mounted is 0.3 mm nd DMP drill heads in |
*Just for reference other diameters than the above.
Scan this QR code to fi nd out other drill body
