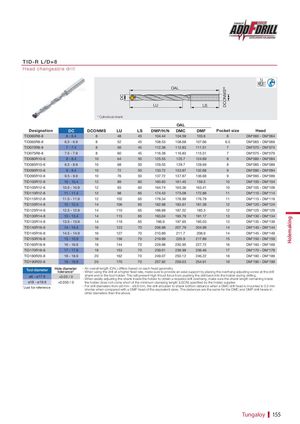

TID-R L/D=8
Head changeable drill
| OAL | Sh6 | ||||||||
| Cylindric | DC al shank | LU | LS | DCONM | |||||
| OAL | |||||||||
| Designation | DC | DCONMS | LU | LS | DMP/H/N | DMC | DMF | Pocket size | Head |
| TID060R8-8 | 6 - 6.4 | 8 | 48 | 45 | 104.44 | 104.59 | 103.6 | 6 | DM060 - DM064 |
| TID065R8-8 | 6.5 - 6.9 | 8 | 52 | 45 | 108.53 | 108.68 | 107.66 | 6.5 | DM065 - DM069 |
| TID070R8-8 | 7 - 7.4 | 8 | 56 | 45 | 112.38 | 112.83 | 111.51 | 7 | DM070 - DM074 |
| TID075R8-8 | 7.5 - 7.9 | 8 | 60 | 45 | 116.38 | 116.83 | 115.51 | 7 | DM075 - DM079 |
| TID080R10-8 | 8 - 8.4 | 10 | 64 | 50 | 125.55 | 125.7 | 124.69 | 8 | DM080 - DM084 |
| TID085R10-8 | 8.5 - 8.9 | 10 | 68 | 50 | 129.55 | 129.7 | 128.69 | 8 | DM085 - DM089 |
| TID090R10-8 | 9 - 9.4 | 10 | 72 | 50 | 133.72 | 133.87 | 132.68 | 9 | DM090 - DM094 |
| TID095R10-8 | 9.5 - 9.9 | 10 | 76 | 50 | 137.72 | 137.87 | 136.68 | 9 | DM095 - DM099 |
| TID100R12-8 | 10 - 10.4 | 12 | 89 | 60 | 160.83 | 161.45 | 159.5 | 10 | DM100 - DM104 |
| TID105R12-8 | 10.5 - 10.9 | 12 | 93 | 60 | 164.74 | 165.36 | 163.41 | 10 | DM105 - DM109 |
| TID110R12-8 | 11 - 11.4 | 12 | 98 | 65 | 174.43 | 175.08 | 172.88 | 11 | DM110 - DM114 |
| TID115R12-8 | 11.5 - 11.9 | 12 | 102 | 65 | 178.34 | 178.99 | 176.79 | 11 | DM115 - DM119 |
| TID120R14-8 | 12 - 12.4 | 14 | 106 | 65 | 182.98 | 183.61 | 181.39 | 12 | DM120 - DM124 |
| TID125R14-8 | 12.5 - 12.9 | 14 | 110 | 65 | 186.89 | 187.52 | 185.3 | 12 | DM125 - DM129 |
| TID130R14-8 | 13 - 13.4 | 14 | 115 | 65 | 193.04 | 193.79 | 191.17 | 13 | DM130 - DM134 |
| TID135R14-8 | 13.5 - 13.9 | 14 | 119 | 65 | 196.9 | 197.65 | 195.03 | 13 | DM135 - DM139 |
| TID140R16-8 | 14 - 14.4 | 16 | 123 | 70 | 206.98 | 207.79 | 204.99 | 14 | DM140 - DM144 |
| TID145R16-8 | 14.5 - 14.9 | 16 | 127 | 70 | 210.89 | 211.7 | 208.9 | 14 | DM145 - DM149 |
| TID150R16-8 | 15 - 15.9 | 16 | 136 | 70 | 219.99 | 220.9 | 217.89 | 15 | DM150 - DM159 |
| TID160R18-8 | 16 - 16.9 | 18 | 144 | 70 | 229.98 | 230.95 | 227.72 | 16 | DM160 - DM169 |
| TID170R18-8 | 17 - 17.9 | 18 | 153 | 70 | 239.01 | 239.99 | 236.46 | 17 | DM170 - DM179 |
| TID180R20-8 | 18 - 18.9 | 20 | 162 | 70 | 249.07 | 250.12 | 246.22 | 18 | DM180 - DM189 |
| TID190R20-8 | 19 - 19.9 | 20 | 170 | 70 | 257.92 | 259.03 | 254.91 | 19 | DM190 - DM199 |
| ø6 - ø17.9 ø18 - ø19.9 H Tool diameter | +0.05 / 0 +0.055 / 0 ole diameter tolerance | - An overall length ( - When using the dr shank end in the t - When axially adjus the holder does n | OAL) differs ill at a highe ool holder. T ting the sha ot come sho | based on ea r feed rate, his will preve nk inside th rt of the mini | ch head geometr make sure to prov nt high thrust for e holder to obtain mum clamping le | y. ide an axial ce from pus a required d ngth (LSCN) | support by placi hing the drill bac rill overhang, m specified by th | ng the overhang adju k into the holder duri ake sure the shank le e holder supplier. | sting screw at the drill ng drilling. ngth remaining inside |
- For drill diameters from ø8 mm - ø9.9 mm, the drill shoulder to shank bottom distance when a DMC drill head is mounted is 0.3 mm *Just for reference shorter when compared with a DMP head of the equivalent sizes. The distances are the same for the DMC and DMP drill heads in other diameters than the above.
