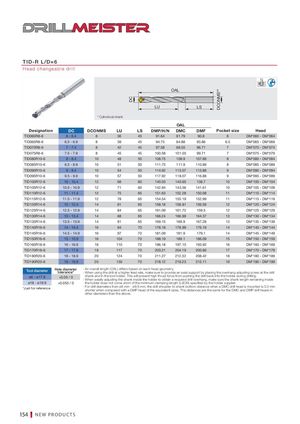

TID-R L/D=6
Head changeable drill
| OAL | h6 | ||||||||
| DC | ONMS | ||||||||
| Cylindric | al shank | LU | LS | DC | |||||
| OAL | |||||||||
| Designation | DC | DCONMS | LU | LS | DMP/H/N | DMC | DMF | Pocket size | Head |
| TID060R8-6 | 6 - 6.4 | 8 | 36 | 45 | 91.64 | 91.79 | 90.8 | 6 | DM060 - DM064 |
| TID065R8-6 | 6.5 - 6.9 | 8 | 39 | 45 | 94.73 | 94.88 | 93.86 | 6.5 | DM065 - DM069 |
| TID070R8-6 | 7 - 7.4 | 8 | 42 | 45 | 97.58 | 98.03 | 96.71 | 7 | DM070 - DM074 |
| TID075R8-6 | 7.5 - 7.9 | 8 | 45 | 45 | 100.58 | 101.03 | 99.71 | 7 | DM075 - DM079 |
| TID080R10-6 | 8 - 8.4 | 10 | 48 | 50 | 108.75 | 108.9 | 107.89 | 8 | DM080 - DM084 |
| TID085R10-6 | 8.5 - 8.9 | 10 | 51 | 50 | 111.75 | 111.9 | 110.89 | 8 | DM085 - DM089 |
| TID090R10-6 | 9 - 9.4 | 10 | 54 | 50 | 114.92 | 115.07 | 113.88 | 9 | DM090 - DM094 |
| TID095R10-6 | 9.5 - 9.9 | 10 | 57 | 50 | 117.92 | 118.07 | 116.88 | 9 | DM095 - DM099 |
| TID100R12-6 | 10 - 10.4 | 12 | 68 | 60 | 140.03 | 140.65 | 138.7 | 10 | DM100 - DM104 |
| TID105R12-6 | 10.5 - 10.9 | 12 | 71 | 60 | 142.94 | 143.56 | 141.61 | 10 | DM105 - DM109 |
| TID110R12-6 | 11 - 11.4 | 12 | 75 | 65 | 151.63 | 152.28 | 150.08 | 11 | DM110 - DM114 |
| TID115R12-6 | 11.5 - 11.9 | 12 | 78 | 65 | 154.54 | 155.19 | 152.99 | 11 | DM115 - DM119 |
| TID120R14-6 | 12 - 12.4 | 14 | 81 | 65 | 158.18 | 158.81 | 156.59 | 12 | DM120 - DM124 |
| TID125R14-6 | 12.5 - 12.9 | 14 | 84 | 65 | 161.09 | 161.72 | 159.5 | 12 | DM125 - DM129 |
| TID130R14-6 | 13 - 13.4 | 14 | 88 | 65 | 166.24 | 166.99 | 164.37 | 13 | DM130 - DM134 |
| TID135R14-6 | 13.5 - 13.9 | 14 | 91 | 65 | 169.15 | 169.9 | 167.28 | 13 | DM135 - DM139 |
| TID140R16-6 | 14 - 14.4 | 16 | 94 | 70 | 178.18 | 178.99 | 176.19 | 14 | DM140 - DM144 |
| TID145R16-6 | 14.5 - 14.9 | 16 | 97 | 70 | 181.09 | 181.9 | 179.1 | 14 | DM145 - DM149 |
| TID150R16-6 | 15 - 15.9 | 16 | 104 | 70 | 188.19 | 189.1 | 186.09 | 15 | DM150 - DM159 |
| TID160R18-6 | 16 - 16.9 | 18 | 110 | 70 | 196.18 | 197.15 | 193.92 | 16 | DM160 - DM169 |
| TID170R18-6 | 17 - 17.9 | 18 | 117 | 70 | 203.21 | 204.19 | 200.66 | 17 | DM170 - DM179 |
| TID180R20-6 | 18 - 18.9 | 20 | 124 | 70 | 211.27 | 212.32 | 208.42 | 18 | DM180 - DM189 |
| TID190R20-6 | 19 - 19.9 | 20 | 130 | 70 | 218.12 | 219.23 | 215.11 | 19 | DM190 - DM199 |
| ø6 - ø17.9 ø18 - ø19.9 H Tool diameter | +0.05 / 0 +0.055 / 0 ole diameter tolerance | - An overall length ( - When using the d shank end in the t - When axially adju the holder does n | OAL) diffe rill at a hig ool holder. sting the s ot come s | rs based on ea her feed rate, This will prev hank inside th hort of the min | ch head geometr make sure to prov ent high thrust for e holder to obtain imum clamping le | y. ide an axial s ce from pushi a required dr ngth (LSCN) | upport by p ng the drill ill overhang specified by | lacing the overhang adju back into the holder duri , make sure the shank le the holder supplier. | sting screw at the drill ng drilling. ngth remaining inside |
- For drill diameters from ø8 mm - ø9.9 mm, the drill shoulder to shank bottom distance when a DMC drill head is mounted is 0.3 mm *Just for reference shorter when compared with a DMP head of the equivalent sizes. The distances are the same for the DMC and DMP drill heads in other diameters than the above.
